SS IP65 23040ppr 30mm Solid Shaft Rotary Encoder

SS IP65 23040ppr 30mm Solid Shaft Rotary Encoder

  • High Light

    30mm Solid Shaft Rotary Encoder

    ,

    23040ppr Solid Shaft Rotary Encoder

    ,

    IP65 High Resolution Rotary Encoder

  • Encoder Type
    Incremental Encoder
  • Shaft Length
    16mm
  • Solid Shaft Diameter
    8mm (D Shape)
  • Resolution
    50;60;100;200;250;256;300;360;400;450;500;512;600;
  • Output Phase
    Phase A+, B+, Z+ A- B- Z-
  • Supply Voltage
    Supply Voltage
  • Environmental Temperature
    Operating:-20 ~+90°;storage:-25 ~+100°
  • Shaft Material
    Stainless Steel
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

SS IP65 23040ppr 30mm Solid Shaft Rotary Encoder

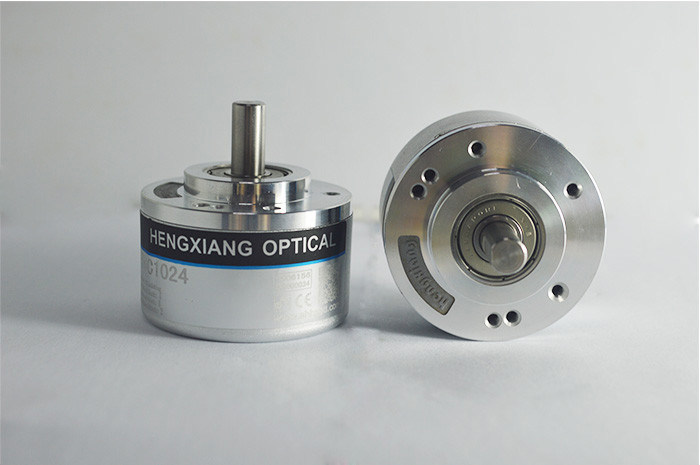

S50 23040ppr thickness 30mm solid shaft high resolution rotary encoder protective grade IP65



Encoder video

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



Application

DC motor

Stepper motor

Servo motion controller

Gearbox

DC garage door motor

DC servo motor

Stock driver

FS machine

VFFS machine

Packing machinery

Capsule filling machine

Paper cutter

CNC machine tool

Automatic measurement

Remote control



Product Basis information

Encoder type: Incremental encoder

Shaft length: 16mm

Solid Shaft diameter: 8mm (D shape)

Resolution: 50;60;100;200;250;256;300;360;400;450;500;512;600; 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;11520;16384;20000;23040

Output phase: Phase A+, B+, Z+ A- B- Z-

Supply voltage: Supply voltage

Environmental temperature: Operating:-20 ~+90°;storage:-25 ~+100°

Shaft Material: Stainless steel



Our advantage

More than 20 years experienced engineers

Professional working team

High quality standard

Quick Response time

CE certification for all models

Prompt delivery date

100% full inspection before shipment



Parameter table

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Output mode NPN&PNP
  Voltage output
  Push-pull output
  Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Cable length 1000mm(cable with shielding)
Certification CE
