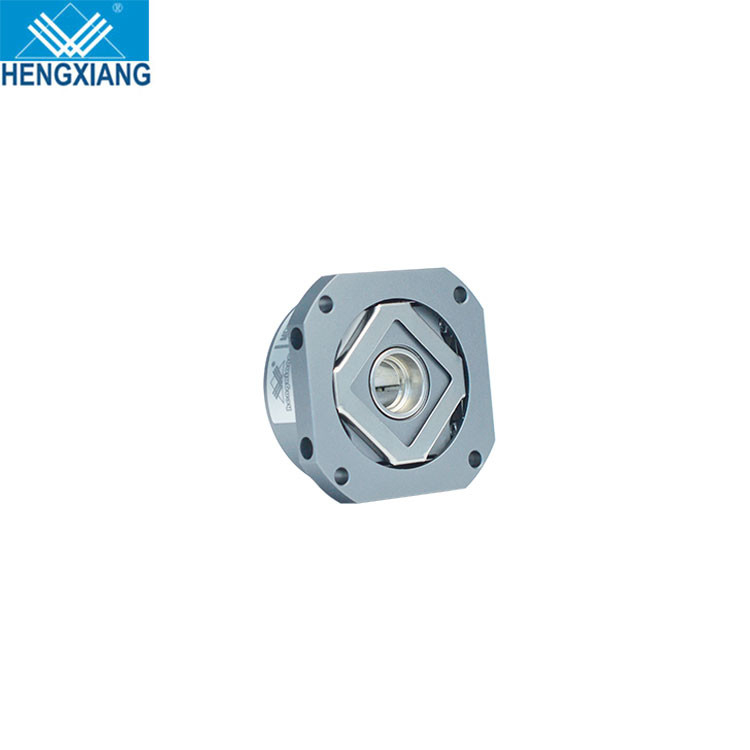

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output

  • High Light

    Radial Output Elevator Encoder

    ,

    Square Hollow Shaft Absolute Encoder

    ,

    Hollow Shaft Absolute SSI Encoder

  • Shaft Diameter
    6/8mm
  • Mounting Flange
    44.2mm
  • Resolution
    24+16 Bits
  • Type
    Single-turn/ Multi-turn
  • Interface
    Radial Cable/socket
  • Communication
    BiSS C/SSI
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    MPN35
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output

Low cost absolute Hengxiang encoder square flange through hole radial output elevator encoder SSI





1. Feature: Flange encoder, absolute type, multi-turn, hollow shaft, SSI encoder,

high quality encoder chinese supplier in Shanghai.



2. Application: Servo motor, robot and other industrial automations.



3. Important parameters:

Items Basic parameters
Brand HENGXIANG
Encoder type absolute encoder
External diameter 35mm
Thickness 16.2mm
Installation dimension 44.2mm diameter
Hollow shaft type hollow hole
Hollow Shaft diameter 6mm;8mm
Bit(steps) 17-24bits(single-turn);1716-2416bits(multi-turn)
Supply voltage DC5V DC8-30V
Outlet type radial cable
radial socket
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
GND not connect to encoder
starting torque less than 5x10-³N.m
Intertia moment less than 1.5x 10-6kg.m2
Shaft load Radial 20N; Axial 10N
Top REV 6000 rpm
Environmental temperature Operating:-20 +95°C(repeatable winding cable: -10°C)storage:-25 +100°C
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Shaft Material Stainless steel
Shell Material Die cast aluminium
Cable length 1000mm(cable with shielding)
Certification CE
package Carton box
Net weight About 70g





Parameter select guide

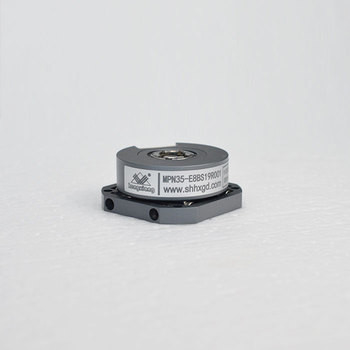

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output 0

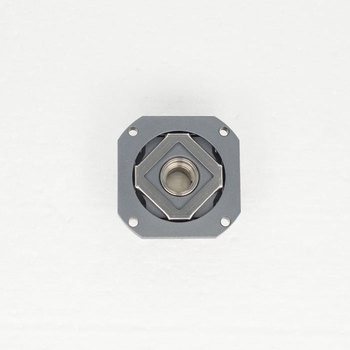

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output 1

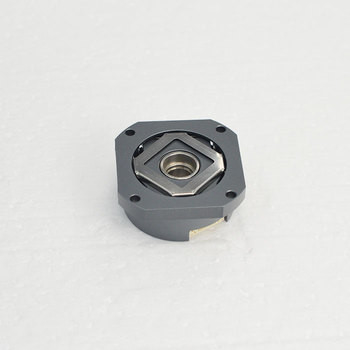

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output 2

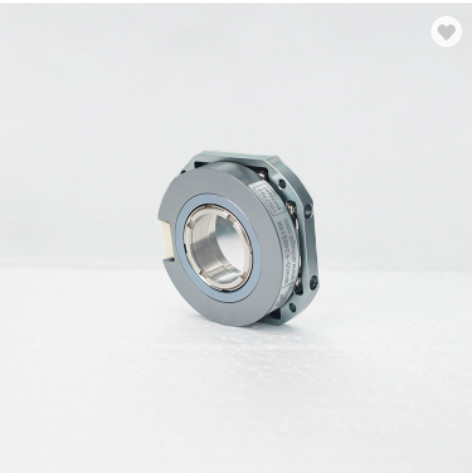

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output 3





Certifications

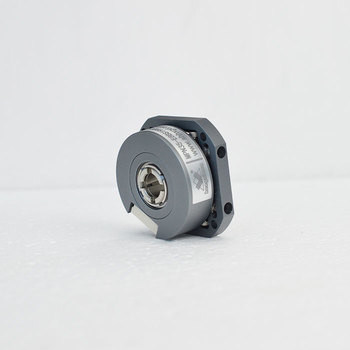

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output 4
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
