S65 Stainless Steel Solid Shaft Encoder External Dia 65mm

S65 Stainless Steel Solid Shaft Encoder External Dia 65mm

  • S65 Stainless Steel Solid Shaft Encoder External Dia 65mm
  • S65 Stainless Steel Solid Shaft Encoder External Dia 65mm
S65 Stainless Steel Solid Shaft Encoder External Dia 65mm
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S65
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description

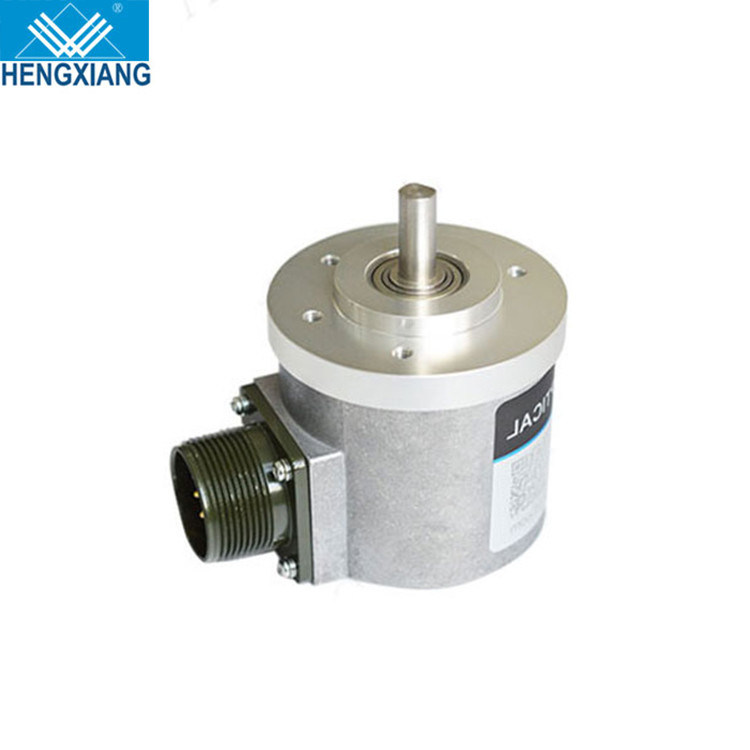

Brand: HENGXIANG Encoder Type: Incremental Encoder
External diameter: 65mm Thickness: 53mm
Installation Dimension: Diameter 48mm Shaft Length: 20mm
Solid Shaft diameter: 8mm(D Shape) Resolution : 9-23040 Ppr
Output phase: Phase A+,B+,Z+ ,A- B- Z- Outlettype: Radial Cable/socket
Output mode: NPN/Voltage/Push-pull/TTL/HTL Protection grade: IP50 ; IP65
Certification: CE Net weight : About 350g (with Package)
High Light:

Stainless Steel Incremental Shaft Encoder

,

External Dia 65mm Optical Shaft Encoder

,

S65 Rotary Shaft Encoder

S65 external dia 65mm sturdy durable long service life low price resolution up to 23040ppr solid shaft 8mm



★1. Simple instructions of S65 series rotary encoder

External diameter: 65mm

Thickness: 53mm

Shaft length: 16mm

Supply voltage: DC5V ; DC8~30V

Protection grade: IP50 ; IP65

Insulation strength: AC500V 60s

Insulation resistance: 10MΩ

Mark to Space ratio: 45% to 55%

Shaft load: Radial 30N; Axial 20N

Top REV:: 5000RPM ;IP65≤3000r rpm



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 65mm
Thickness 53mm
Installation dimension diameter 48mm
Shaft length 20mm
Solid Shaft diameter 8mm(D shape)
Resolution 9;20;30;50;60;100;200;250;256;300;360;400;450;500;512;600;720;900
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;23040
Output phase Phase A+,B+,Z+ ,A- B- Z-
Supply voltage DC5V ; DC8~30V
Outlettype radial cable
radial socket
Output mode Collector open circuit output
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
compatible RS422
Long line drive (RT7272)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frenquency 100KHZ
Allowable ripple S65 Stainless Steel Solid Shaft Encoder External Dia 65mm 0
≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5x 10-3 N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 5000RPM ;IP65≤3000r rpm
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+85°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material Dia cast aluminium
Cable length 1000mm(cable with shielding)
Certification CE
package Carton box
Net weight About 350g (with package)


★2. Associated model number of S65 series



S65 Stainless Steel Solid Shaft Encoder External Dia 65mm 1



....



★3. Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



★4.Shipment

 Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



★5. The reason to choose us

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



★6. FAQ

Q1: What are our strengths?

A1: ※Quality Assurance -- The products have passed the authoritative certifications of CE-ATC, ISO, QMS, etc. by the third-party testing    institutions.

※Leading technology -- with new high precision sensor R&D technology and professional design team, constantly improving performance, 21 years focus on quality, 3 invention patents 17 application patents.

※Tailor-made - With mature technical capability and rich development experience, we can tailor encoders for different precision needs in various mechanical equipment.

※Efficient service - make full use of the existing environmental information resources unified planning, unified specifications, unified construction, time-saving and efficient.

Q2:What can we do for you?

A2:We can provide you with services in the field of elevator, motor, CNC, textile, robot, wind, medical, assembly line equipment and other automation technology industries.

Q3: How to select a right encoder model?

A3: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q4: Do you offer technical support?

A4: Yes, we have professional technician who can solve all your doubts.



★7. Our History
In 1988-1998, The elder generation produced optical products in a small workshop in Dongtou District, Wenzhou, laying a solid foundation for the subsequent development of encoders and infrared optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory as a senior engineer, engaged in optical research and development, and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was formally established, and the first S38 series products are independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets, and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International Industrial Park ,Obtained QA international certification and QMS quality management system certification.
In 2021, Obtained 14 new utility patents.

★8. Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO Quality Management System Certification, QMS Quality Management System certificate, and pioneer enterprise
We passed the national quality management system certification with all the items tested conforming to it, thus gaining the professional production qualification.
