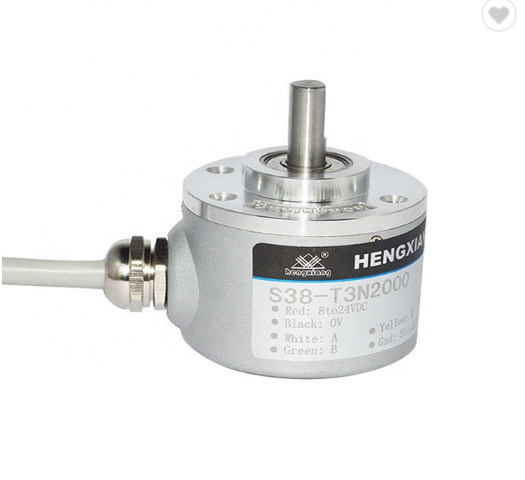

Solid Shaft Incremental Encoder With Back Cable 6mm E6B2-CWZ5B

  • Solid Shaft Incremental Encoder With Back Cable 6mm E6B2-CWZ5B
  • Solid Shaft Incremental Encoder With Back Cable 6mm E6B2-CWZ5B
  • Solid Shaft Incremental Encoder With Back Cable 6mm E6B2-CWZ5B
Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number S38
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Brand HENGXIANG Encoder Type Incremental Encoder
External diameter 38mm Thickness 28mm
Shaft Length 13mm Solid Shaft diameter 6mm(D Shape)
Resolution  50-16384 Ppr Output mode NPN&PNP;Voltage Output ;Push-pull Output ;Difference Output(TTL,HTL,RS422)
Output phase Phase A,B,Z,A-,B-,Z- Outlet Type Cable Out From Side & Back
Protection grade IP50 & IP65 Certification CE/ ISO9001
Shell Material Dia Cast Aluminium Cable Length 1000mm(cable With Shielding)
High Light

Back Cable Absolute Incremental Encoder

,

Solid Shaft Incremental Rotary Encoder

,

6mm Absolute Shaft Encoder
Leave a Message
Product Description

S38 can totally replace the Omron encoder E6B2-CWZ5B low price high quality solid shaft





How to choose the replacement encoder of E6B2-CWZ5B:

1. Please take a quick view of the model below to confirm the resolution.

2. Then the price and production time will be offered immediately.

3. Please provide the address and postal code, we will offer shipping cost and lead time for you,

4. After your confirmation, we will make PI(proforma invoice) for you.

5. After receiving your payment, we will start product your product immediately.

6. We will notify you of the courier number before the production is completed and the goods are sent out.



Solid Shaft Incremental Encoder With Back Cable 6mm E6B2-CWZ5B 0

Some Related S38 encoder model number

S38-T6E600 DC12V

S38-T6E720 DC8-30V

S38-T4E720 DC8V

S38-T6E1024 DC30V

S38-T6E2500 DC24V

S38-T6E5000 DC8-30V

S38-T6E10000 DC10V

S38-T4E1200 DC12V

S38-T6C720 DC5V

S38-T6C1024 DC5V

S38-T3N1024 DC5-30V

S38-T6E512 DC12V



The same installation of S38 and E6B2-CWZ5B

Solid Shaft Incremental Encoder With Back Cable 6mm E6B2-CWZ5B 1



Solid Shaft Incremental Encoder With Back Cable 6mm E6B2-CWZ5B 2



Specifications



ITEM PARAMTERS
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 38mm
Thickness 28mm
Shaft length 13mm
Solid Shaft diameter 6mm(D shape)
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;
600;700;720;800;900;1000;1024;1200;2000;2048;
2500;5000；8192；10000；16384
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Output phase Phase A,B,Z,A-,B-,Z-
Shaft Material Stainless steel
Shell Material Dia cast aluminium
Cable length 1000mm(cable with shielding)
Certification CE



Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO Quality Management System Certification, QMS Quality Management System certificate, and pioneer enterprise
We passed the national quality management system certification with all the items tested conforming to it, thus gaining the professional production qualification.



Our History
In 1988-1998, The elder generation produced optical products in a small workshop in Dongtou District, Wenzhou, laying a solid foundation for the subsequent development of encoders and infrared optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory as a senior engineer, engaged in optical research and development, and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was formally established, and the first S38 series products are independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets, and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International Industrial Park ,Obtained QA international certification and QMS quality management system certification.
In 2021, Obtained 14 new utility patents.



Shipment

There are two method of shipment right now,

One is our factory check freight cost from FedEx, UPS, DHL,TNT, etc, for you to get the cheapest quotation and shipping date.

The other is you offer your own courier account when ordering, so we can use your express account to arrange the shipment.
