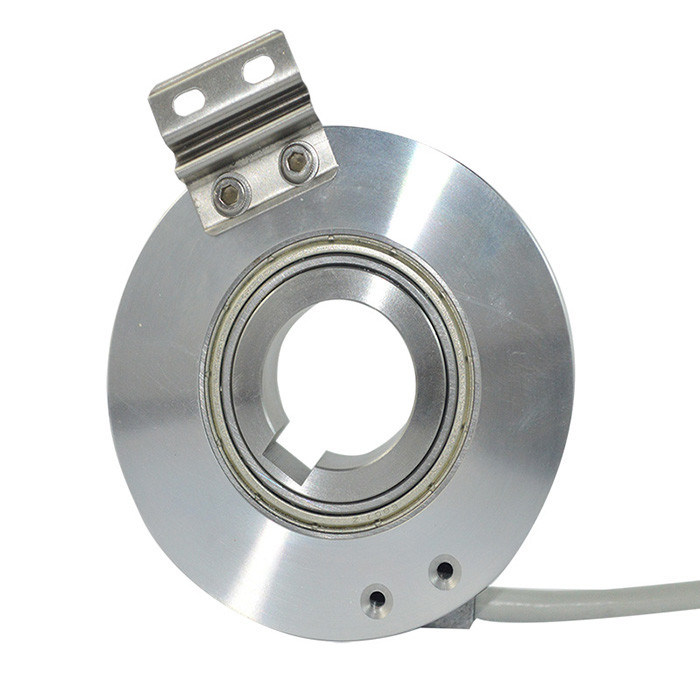

KC76 Keyway High Resolution Rotary Encoder Push Pull Output 32768ppr Through Hole With Slot

KC76 Keyway High Resolution Rotary Encoder Push Pull Output 32768ppr Through Hole With Slot

    • KC76 Keyway High Resolution Rotary Encoder Push Pull Output 32768ppr Through Hole With Slot
    • KC76 Keyway High Resolution Rotary Encoder Push Pull Output 32768ppr Through Hole With Slot
  • KC76 Keyway High Resolution Rotary Encoder Push Pull Output 32768ppr Through Hole With Slot

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: KC76 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Keywords: Idustrial Rotary Encoder External diameter: 76mm
    Installation Dimension: R34.5mm(spring Plate 76T69) Hollow Shaft Type: Through Hole With Slot
    Resolution : 100PPR-32768PPR Supply voltage: DC5V ; DC8-30V
    Package: Carton Box

    KC76 keyway encoder hole 25mm with 8mm keyway ABZ phase push-pull output 32768ppr



    Notice for encoder installation

    1. Please read the encoder specification carefully before installation

    2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

    3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

    4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

    5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

    6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

    7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

    8. The encoder cable signal can’t be drew or bent forcibly.



    Production date

    3-5 working days for sample after full paid

    7-15 days for mass production after full paid



    Payment terms

    1. T/T, western union, credit card, Paypal, etc

    2. 3-5 working days after payment received

    3. Encoders will be shipped once ready



    Production video

    Please email us directly or contact online service right now to get the latest video, otherwise you could visit our YOUTUBE page.



    KC76 Keyway High Resolution Rotary Encoder Push Pull Output 32768ppr Through Hole With Slot



    Product Description

    Encoder type Incremental encoder
    External diameter 76.5mm
    Thickness 28mm
    Installation dimension R34.5mm(spring plate 76T69)
    Hollow shaft type through hole with slot
    Hollow shaft diameter 18mm,20mm,22mm;25mm
    Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
    Supply voltage DC5V ; DC8-30V
    Outlet type Cable out from side
    Output mode NPN/PNP(Open Collector Output)
      Voltage output
      Push-pull output
      line drive (26LS31) TTL
      line drive(DC8-30V) HTL
    Consumption current 100mA MAX
    Top response frequency 300KHZ
    Allowable ripple ≤3%rms
    Load Voltage ≤DC30V
    GND not connect to encoder
    Mark to Space ratio 45% to 55%
    starting torque less than 80 x 10-3 N.m
    Intertia moment less than 100x 10-6kg.m2
    Shaft load Radial 70N; Axial 50N
    Top REV 3000RPM



    Application

    Gearbox

    DC garage door motor

    DC servo motor

    Stock driver

    PMDC geared motor

    Brushless dc motor
    Servo motor

    Drawing machine

    VFD

    Inverter

    Variable frequency driver

    Embroidery machine

    Elevator

    Printing machinery

    Projector

    Injection molding machine



    Product Basis information

    Encoder type: Incremental encoder

    External diameter: 76.5mm

    Thickness: 28mm

    Installation dimension: R34.5mm (spring plate 76T69)

    Hollow shaft type: through hole with slot

    Hollow shaft diameter: 18mm, 20mm, 22mm; 25mm

    Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

    Supply voltage: DC5V; DC8-30V

    Outlet type: Cable out from side

    GND: not connect to encoder



    Our advantage

    Utility Model Patent Certificate

    Own brand and unique brand

    CE certification for all models

    Prompt delivery date

    100% full inspection before shipment

    Customers from about 200 countries

    IS09001:2015 Certification

    Trademark Registration certificate



    FAQ

    Q: Can you product ship to our country?

    A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

    Q: How to get the latest price?

    A: Contact us and tell me the encoder model selection.

    Q: How to select a right encoder model?

    A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

    Q: Do you offer technical support?

    A: Yes, we have professional technician who can solve all your doubts.

    Q: Can you factory offer a sample?

    A: Yes, sample can be provided.

    Q: Where is your factory?

    A: Our factory is located on Shanghai City.

    Q: Can I pay a visit to your factory?

    A: Yes, you we welcome to visit our factory at any time if convenient.

    Q: How long is your delivery time?

    A: Usually 3 working days for sample, 7-15 days for mass production
