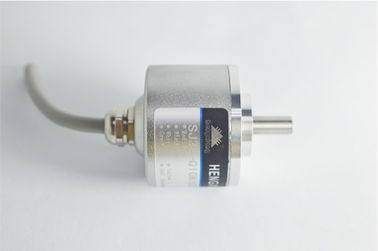

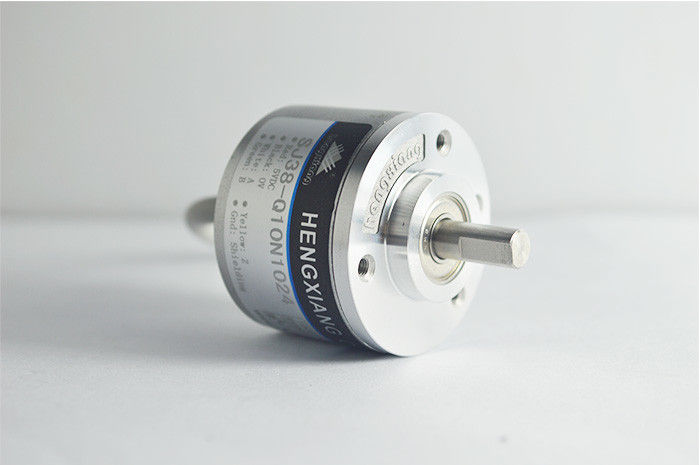

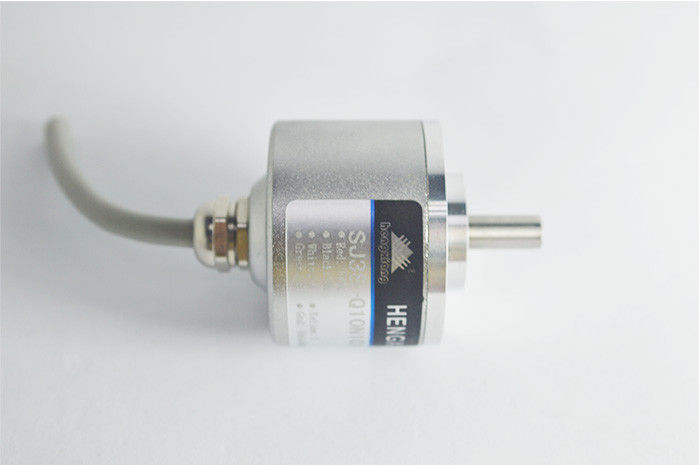

9 Bit Single Turn Absolute Encoder , SJ38 Micro Rotary Encoder Shaft 5mm NPN Output

9 Bit Single Turn Absolute Encoder , SJ38 Micro Rotary Encoder Shaft 5mm NPN Output

    • 9 Bit Single Turn Absolute Encoder , SJ38 Micro Rotary Encoder Shaft 5mm NPN Output
    • 9 Bit Single Turn Absolute Encoder , SJ38 Micro Rotary Encoder Shaft 5mm NPN Output
  • 9 Bit Single Turn Absolute Encoder , SJ38 Micro Rotary Encoder Shaft 5mm NPN Output

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: SJ38 absolute encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Encoder Type: Single Turn Absolute Encoder Precision: 360/(resolution X 4)
    Installation Dimension: 30mm Diameter Solid Shaft diameter: 6mm D Shape
    Allowable Ripple: ≤3%rms Protection grade: IP50 ; IP65
    Interface: NPN Output Package: Carton Box

    SJ38 micro rotary encoder shaft 5mm NPN output single turn absolute encoder 9 bit



    Notice for encoder installation

    1. Please read the encoder specification carefully before installation

    2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

    3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

    4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

    5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

    6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

    7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

    8. The encoder cable signal can’t be drew or bent forcibly.



    9 Bit Single Turn Absolute Encoder , SJ38 Micro Rotary Encoder Shaft 5mm NPN Output



    Production video

    There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

    At the same time, you could also visit our YOUTUBY page easily.

    Most of the encoder series have videos for reference.



    Specification of SJ38

    Items Basic parameters
    Supply voltage DC5V ; DC8-30V
    Outlet type Radial cable
      Radial socket
      axial cable with plug
      Radial cable with plug
    Count direction counterclockwise
      outside control direction
      clockwise
    Interface NPN low level effective
      NPN high level effetive
    Protection grade IP50 ; IP65
    Cable length 1M (cable length could be added appropriately by
      require, but it need payment individually)
    Brand HENGXIANG
    Encoder type absolute encoder
    External diameter 38mm
    Thickness 28mm
    Installation dimension 30mm diameter
    Shaft length 13mm
    Solid Shaft diameter 6mm D shape
    Bit(steps) 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
    Shell Material die cast aluminum
    Cable length 1000mm(cable with shielding)
    Certification CE
    package Carton box
    Net weight About 130g (with package)



    Shipment

    • Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
    • You could select the express according to your requirements if freight collector
    • If you do not have any courier account, we will check and find a cheapest and safety express for you.
    • Our factory has 30% discount with most courier company, so price could be as cheap as possible.

    Why choose us?

    HENGXIANG brand--The trustworthy partner
    CE approved--advantaged product quality;
    Fast delivery--strong stock product ability;

    Factory directly provide a competitive price;
    One-stop service--for your efficient purchasing experience;

    OEM design accepted--customized design, your own brand accepted.



    Related SJ38 encoder model number

    SJ38-T5N32 D

    SJ38-T5N32D

    SJ38-Q6NH64C

    SJ38-Q6N64C

    SJ38-TE7NH128W

    SJ38-TE7N128W

    SJ38-QE8NH180

    SJ38-QE8NH256W

    SJ38-T9N360W

    SJ38-Q9N512C

    SJ38-TE10N1024C

    SJ38-QE10NH1024 W

    SJ38-TE11NH2048 W

    SJ38-T12NH4096

    SJ38-Q12NH4096
