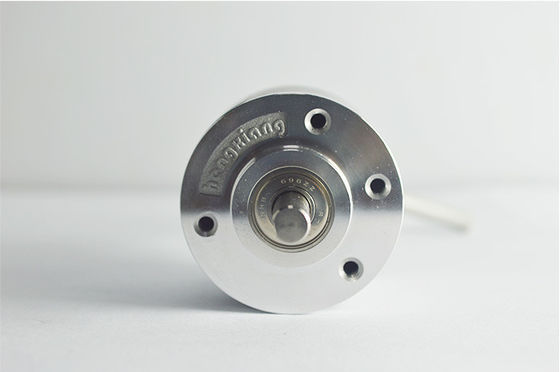

Photoelectric Miniature Single Turn Absolute Encoder , SJ38 10 Bit IP50 Absolute Shaft Encoder

Photoelectric Miniature Single Turn Absolute Encoder , SJ38 10 Bit IP50 Absolute Shaft Encoder

    • Photoelectric Miniature Single Turn Absolute Encoder , SJ38 10 Bit IP50 Absolute Shaft Encoder
    • Photoelectric Miniature Single Turn Absolute Encoder , SJ38 10 Bit IP50 Absolute Shaft Encoder
  • Photoelectric Miniature Single Turn Absolute Encoder , SJ38 10 Bit IP50 Absolute Shaft Encoder

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: SJ38 absolute shaft encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Encoder Type: Absolute Shaft Encoder Precision: 360/(resolution X 4)
    Installation Dimension: 30mm Diameter Solid Shaft diameter: 6mm D Shape
    Shell Material: Die Cast Aluminum Cable Length: 1000mm(cable With Shielding)
    Interface: NPN Output Output Code: Gray Code

    Miniature photoelectric absolute encoder SJ38 series 1024 steps per turn 10 bit IP50



    Factory Encoder Production Capability

    5000 pieces per month

    -------- Production Line Capacity

    50000 pieces per year

    --------Actual Units Produced (Previous Year)



    SJ38 absolute encoder Product Basis information

    Items Basic parameters
    Brand HENGXIANG
    Encoder type absolute encoder
    External diameter 38mm
    Thickness 28mm
    Installation dimension 30mm diameter
    Shaft length 13mm
    Solid Shaft diameter 6mm D shape
    Bit(steps) 5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
    Supply voltage DC5V ; DC8-30V
    GND not connect to encoder
    starting torque less than 4.4x 10-3N.m
    Intertia moment less than 1.5x 10-6kg.m2
    Shaft load Radial 30N; Axial 20N
    Top REV 3000RPM ;IP65≤2000 RPM
    Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
    Environmental temperature Operating:-20 ~+85°C;storage:-25 ~+90°C
    Environmental humidity Operating and storage: 35-85%RH(noncondensing)
    Vibration(endure) Amplitude 0.75mm,10-55Hz,2 hours for three axis individually
    Sock(endure) 49m/s2 ,11 ms three times for X,Y,Z direction individually
    Shaft Material Stainless steel
    Shell Material die cast aluminum
    Cable length 1000mm(cable with shielding)
    Allowable ripple ≤3%rms
    Load Voltage ≤DC30V
    Output code gray code
    Precision 360/(resolution x 4)
    Insulation strength AC500V 60s
    Insulation resistance 10MΩ



    About Absolute encoder

    Absolute encoders have an encoder disc (sporting marks or slots) on a power-transmission shaft and a stationary pickup, but the disc marks output a unique code for each shaft position. Absolute encoders are either single-turn or multi turn encoders. Single turn absolute encoders can verify position within a single turn of the encoder shaft. This makes them useful for short travel situations. In contrast, multiple-turn absolute encoders are better for more complex or longer positioning situations.

    Engineers generally classify absolute encoders by the number of their output bits, which correlates to the number of the disc’s tracks—and the maximum rotary angle the encoder registers. More after the jump.

    Absolute rotary encoders have the advantage of non-volatile memory. That is, they do not lose track of positioning even when power fails. So even if something moves the machine shaft when power is off, an absolute encoder keeps track of the rotary-position change when the machine powers on again. Usually, electronics store this information as binary code, ideally Gray binary code. Absolute rotary encoders can operate point-to-point as well. They are useful in situations where safety is a concern, because they position whenever machines power on. Immunity to electoral noise is another benefit. One caveat: absolute rotary encoders are generally more expensive than incremental encoders. However, the cost of absolute encoders has steadily decreased over the last decade, and that’s driven steady increase of their use.



    Photoelectric Miniature Single Turn Absolute Encoder , SJ38 10 Bit IP50 Absolute Shaft Encoder



    Applications

    • Petrochemical industry
    • Pharmaceutical industry
    • Food industry
    • Aviation and aerospace industry
    • Architectural decoration industry
    • Oil and gas industry
    • FFS machine
    • VFFS machine
    • Packing machinery
    • Capsule filling machine
    • Pharmaceutical machine
    • VVVF motor
    • DC motor
    • Stepper motor
    • Servo motion controller
    • Gearbox
    • DC garage door motor
    • DC servo motor
    • Stock driver
    • PMDC geared motor
