S52 Heavy Duty Encoder External Solid Shaft 8mm HTL Output Customizable TRD-N1000-RZW dust proof water proof encoder
-
High Light
photoelectric rotary encoder
,mechanical rotary encoder
-
BrandHENGXIANG
-
Product NameS52 Heavy Duty Encoder External Solid Shaft 8mm HTL Output Customizable TRD-N1000-RZW Dust Proof Water Proof Encoder
-
Top REV3000RPM ; IP65≤2000r Rpm
-
Output modeOC, Voltage, Push-pull, Difference Output
-
Shell MaterialDie Cast Aluminum
-
Resolution1000PPR-23040PPR
-
Shaft LoadRadial 50N; Axial 30N
-
CertificationCE,ISO9001
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberS52 heavy duty encoder
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year

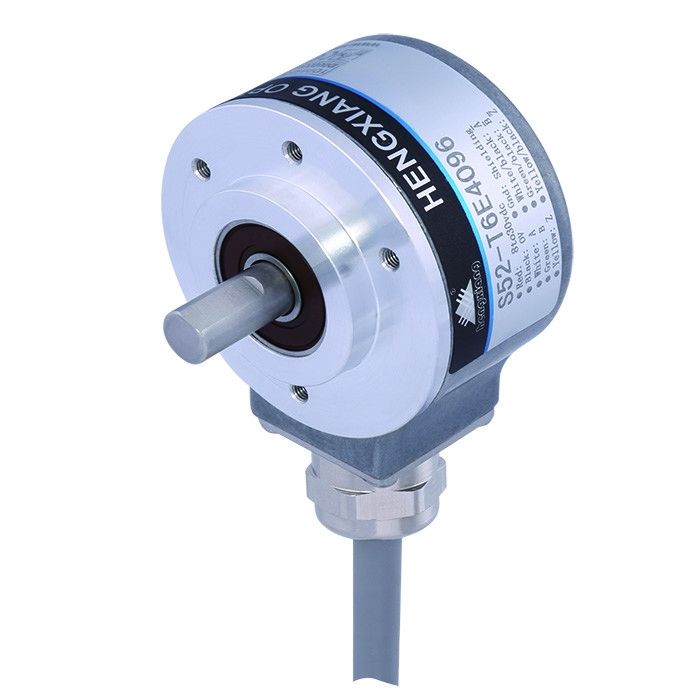

S52 Heavy Duty Encoder External Solid Shaft 8mm HTL Output Customizable TRD-N1000-RZW dust proof water proof encoder

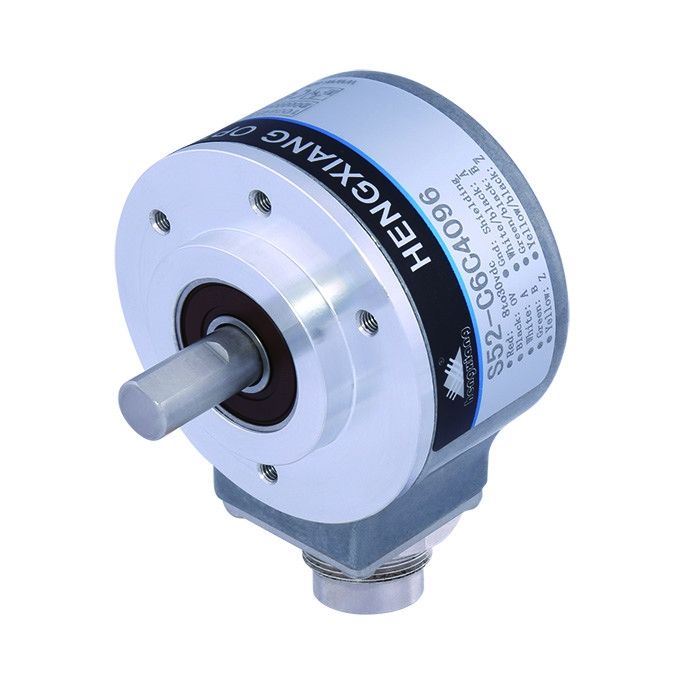

S52 Heavy Duty Encoder External Solid Shaft 8mm HTL Output Customizable TRD-N1000-RZW dust proof water proof encoder
S52 encoder model number for reference
S52-T2N1024 DC12V
S52-Q2F2048 DC30V
S52-TE3V1200 DC8-30V
S52-T3F5760 DC24V
S52-Q4E8192 DC5V
S52- TE4C5000
S52-T6C3600
S52-Q6E2000
S52-TE3PH10000
S52-T12C1024/4 DC5V
S52-Q12E2048/6 DC8-30V
S52-TE12C4096/8 DC5V
Product Information for S52 encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 51mm |
| Thickness | 29mm |
| Output mode | NPN&PNP |
| Voltage output | |
| Push-pull output | |
| Difference output(TTL,HTL,RS422) | |
| Consumption current | 100mA MAX |
| Top response frequency | 300KHZ |
| Allowable ripple | ≤3%rms |
| Load Voltage | ≤DC30V |
| GND | not connect to encoder |
| Mark to Space ratio | 45% to 55% |
| starting torque | less than 5 x 10-3 N.m |
| Intertia moment | less than 3x 10-6kg.m2 |
| Shaft load | Radial 50N; Axial 30N |
| Top REV | 3000RPM ;IP65≤2000 RPM |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° |
| Environmental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
