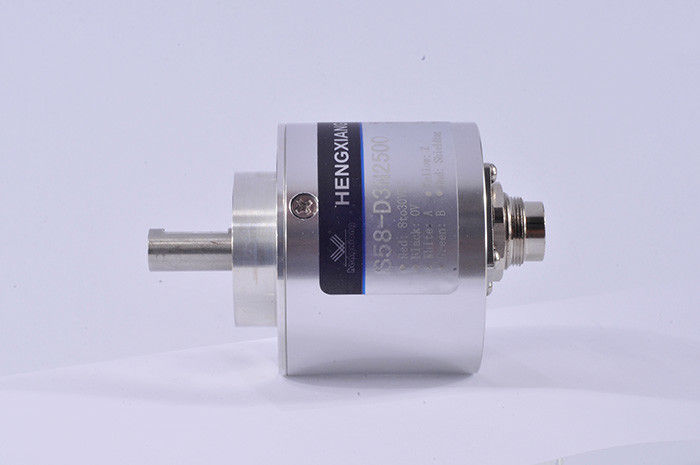

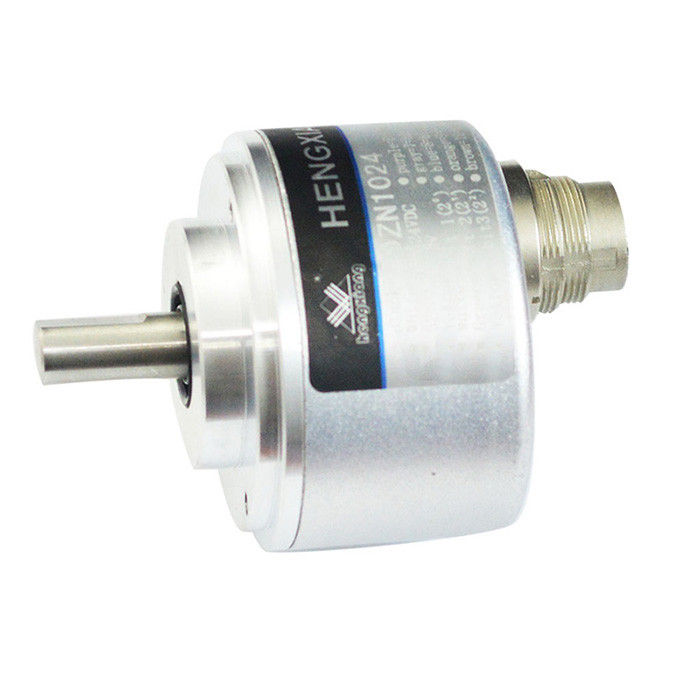

S58 Heavy Duty Encoder Outer Diameter 58mm Shaft 10mm 1024 ppr 758-A-21S1024RHV

S58 Heavy Duty Encoder Outer Diameter 58mm Shaft 10mm 1024 ppr 758-A-21S1024RHV

  • High Light

    photoelectric rotary encoder

    ,

    mechanical rotary encoder

  • Brand
    HENGXIANG
  • Keywards
    Optical Shaft Encoder
  • Environmental Humidity
    Operating And Storage: 35-85%RH(noncondensing)
  • Output Mode
    Open Collector, Voltage Output, Push-pull, TTL,HTL
  • Shaft Material
    Stainless Steel
  • Shell Material
    Die Cast Aluminum
  • Consumption Current
    100mA MAX
  • Net weight
    About 420g (with Package)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S58 heavy duty encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

S58 Heavy Duty Encoder Outer Diameter 58mm Shaft 10mm 1024 ppr 758-A-21S1024RHV

S58 heavy duty encoder outer diameter 58mm shaft 10mm 1024ppr 758-A-21S1024RHV



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Specification for S58 Encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 58mm
Thickness 46mm
Installation dimension diameter 48mm
Shaft length 19.5mm
Solid Shaft diameter 10mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
  8192;10000;11520;16384;20000;23040
Output phase Phase A+,B+,Z+ , A- B- Z-
Supply voltage DC5V ; DC8-30V
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 10m N.m



S58 Heavy Duty Encoder Outer Diameter 58mm Shaft 10mm 1024 ppr 758-A-21S1024RHV 0



Lead time

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Packing Details

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



Process of payment:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



Applications for S58 heavy duty encoder

  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Architectural decoration industry
  • Oil and gas industry
  • FFS machine
  • VFFS machine
  • Packing machinery
  • Capsule filling machine
  • Pharmaceutical machine
  • VVVF motor
  • DC motor
  • Stepper motor
  • Servo motion controller
  • Gearbox
  • DC garage door motor
  • DC servo motor
  • Stock driver
