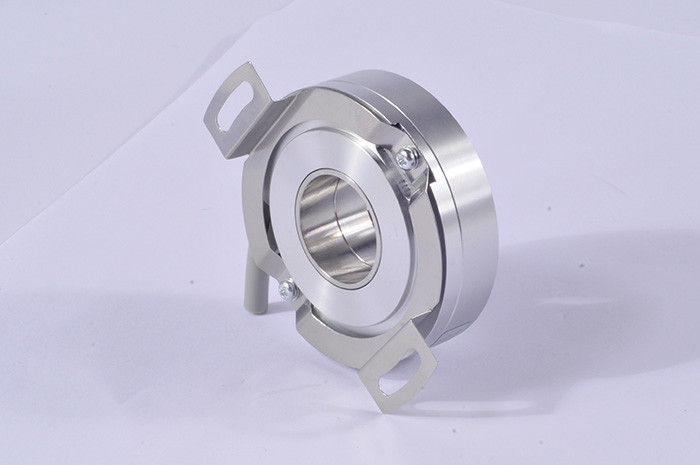

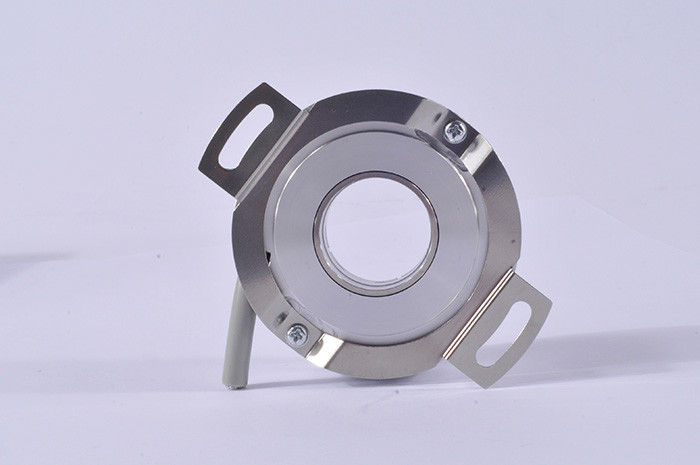

Hollow Shaft Heavy Duty Encoder K58 , Photoelectric Rotary Encoder 7200 Ppr Dc 8 - 30v

Hollow Shaft Heavy Duty Encoder K58 , Photoelectric Rotary Encoder 7200 Ppr Dc 8 - 30v

    • Hollow Shaft Heavy Duty Encoder K58 , Photoelectric Rotary Encoder 7200 Ppr Dc 8 - 30v
    • Hollow Shaft Heavy Duty Encoder K58 , Photoelectric Rotary Encoder 7200 Ppr Dc 8 - 30v
  • Hollow Shaft Heavy Duty Encoder K58 , Photoelectric Rotary Encoder 7200 Ppr Dc 8 - 30v

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: K58 hollow shaft rotary encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Keywards: Incremental Encoder Allowable Ripple: ≤3%rms
    External diameter: 58mm Thickness: 24mm
    Resolution: 1000ppr(Min) To 28800ppr(Max) Installation Dimension: R34.1mm(spring Plate 58T64)
    Net weight : About 150g (with Package) Certification: CE,ISO9001

    Hollow shaft heavy duty encoder K58 photoelectric rotary encoder 7200ppr dc8-30v



    Video of Encoder products

    If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

    But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.



    K58 encoder Product Description

    Items Basic parameters
    Brand HENGXIANG
    Encoder type Incremental encoder
    External diameter 58mm
    Thickness 24mm
    Installation dimension R34.1mm(spring plate 58T64)
    Hollow shaft type clamping ring at prior or clamping ring at rear
    Hollow shaft diameter 15mm,16mm,18mm;20mm;22mm
    Resolution 1000;1024;1200;1250;1440;2000;2048;2500;4096;5000;
    7200;14400;28800
    1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
    2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;
    5000/4;5000/6;/5000/8
    Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
    Supply voltage DC5V ; DC8-30V
    Outlet type Cable out from side
    GND not connect to encoder
    Mark to Space ratio 45% to 55%
    starting torque less than 9.8 x 10-3 N.m
    Intertia moment less than 6.5x 10-6kg.m2
    Shaft load Radial 50N; Axial 30N
    Top REV 3000RPM
    Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
    Environmental temperature Operating:-20 ~+85°;storage:-25 ~+90°
    Environmental humidity Operating and storage: 35-85%RH(noncondensing)
    Vibration(endure) Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
    Sock(endure) 980m/s2 ,11 ms three times for X,Y,Z direction individually
    Shaft Material Stainless steel



    Questions you may like to know before ordering

    Q: Can you product ship to our country?

    A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

    Q: How to get the latest price?

    A: Contact us and tell me the encoder model selection.

    Q: How to select a right encoder model?

    A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

    Q: Do you offer technical support?

    A: Yes, we have professional technician who can solve all your doubts.

    Q: Can you factory offer a sample?

    A: Yes, sample can be provided.

    Q: How to pay for a sample?

    A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

    Q: Do you have some videos of your products?

    A: Yes, you could visit our YOUTUBE page for encoder videos.

    Q: What’s your encoder product guarantee policy?

    A: 1 year quality warranty and life-long technical support.

    Q: Where can I download the encoder catalogue or datasheet?

    A: You could visit our official website or email us directly to the latest files.



    Hollow Shaft Heavy Duty Encoder K58 , Photoelectric Rotary Encoder 7200 Ppr Dc 8 - 30v



    Related K58 encoder model number for choosing

    K58-J1V2000B22

    K58-J2N5000BQ22

    K58-J3F7200B20

    K58-J4E14400BQ20

    K58-J6C28800B19 DC5V

    K58-J12C2500/8BQ19 DC5V

    K58-J12E1000/8B18 DC12-24V

    K58-J12E1024/4BQ18 DC8-30V

    K58-J12C2048/6BQ15 DC5V
