Taper Shaft Motor Servo Motor Rotary Encoder LD Output Die Cast Aluminum Material

Taper Shaft Motor Servo Motor Rotary Encoder LD Output Die Cast Aluminum Material

Products - Servo Motor Rotary Encoder
  • High Light

    optical motor shaft encoders

    ,

    cnc rotary encoder

  • Encoder Type
    Servo Motor Encoder
  • Material
    Die Cast Aluminum
  • Hollow Shaft Type
    Hollow Conical Shaft
  • Resolution
    50ppr(Min) To 8192ppr(Max)
  • Hollow Shaft Diameter
    9mm( Taper 1:10)
  • Optional Supply Voltage
    DC5V & DC8-30V
  • Shaft Load
    Radial 50N; Axial 30N
  • Package
    Carton Box
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    KZ48 taper hole encoder
  • Minimum Order Quantity
    1 piece to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card, Paypal, etc
  • Supply Ability
    100K pieces per year

Taper Shaft Motor Servo Motor Rotary Encoder LD Output Die Cast Aluminum Material

  • Taper Shaft Motor Servo Motor Rotary Encoder LD Output Die Cast Aluminum Material
  • Taper Shaft Motor Servo Motor Rotary Encoder LD Output Die Cast Aluminum Material
Get Price Contact Now

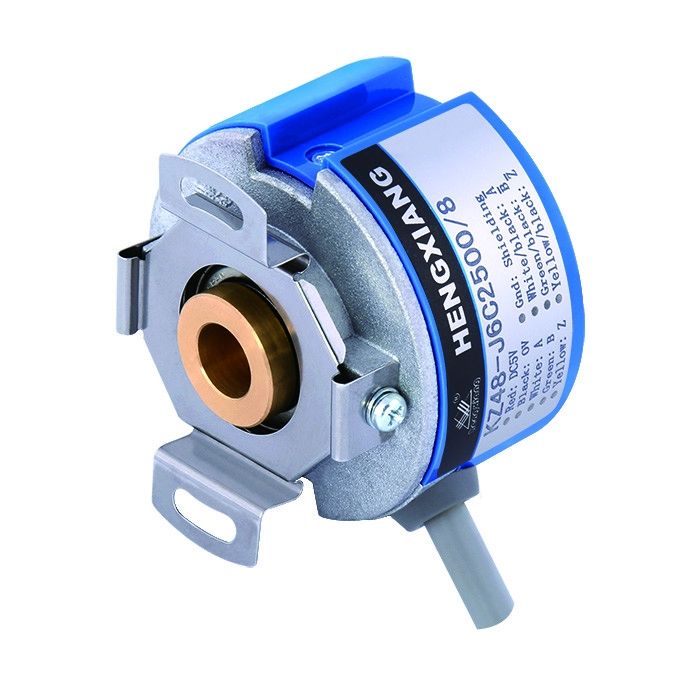

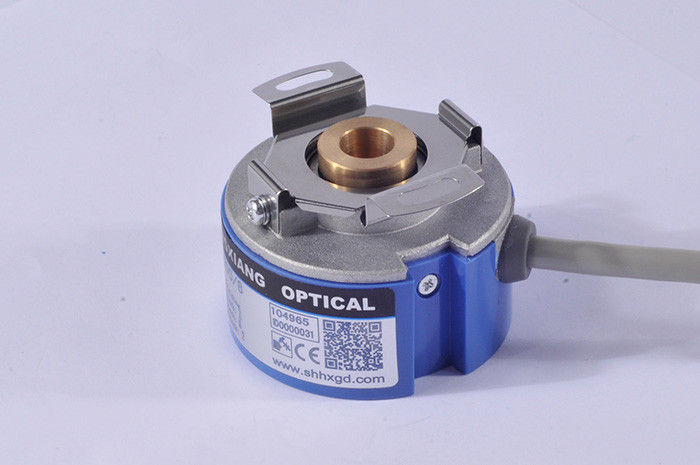

Taper shaft motor encoder KZ48 shaft 9mm taper 1:10 depth 15mm LD output for servo motor



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers

Taper Shaft Motor Servo Motor Rotary Encoder LD Output Die Cast Aluminum Material 0



KZ48 encoder model number to select

KZ48-J12C2500/16

KZ48-J2V500

KZ48-J3N512

KZ48-J4C600

KZ48-J6E720

KZ48-J12C2000/4

KZ48-J2F1000

KZ48-J3FH1024

KZ48-J4E1200



Product introduction of KZ48 Encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 48mm
Thickness 34mm
Installation dimension 40mm(spring plate 48T40)
Hollow shaft type hollow conical shaft
Hollow shaft diameter 9mm( taper 1:10)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;1000; 1024;1200;2000;2048;2500; 4096;5000;8192
1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4； 2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8;8192/4; 8192/6;8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V



Advantage of “HENGXIANG” encoder factory

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment



Applications

  • Petrochemical industry
  • Pharmaceutical industry
  • Inverter
  • Variable frequency driver
  • Embroidery machine
  • Elevator
  • Printing machinery
  • Projector
  • Injection molding machine
  • Disc shoe machine,
  • Textile dyeing
  • Leather machine
  • Paper equipment
  • Industrial machinery
  • Paper cutter
  • CNC machine tool
  • Automatic measurement
  • Remote control

Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
