Hole Diameter 16mm Hollow Shaft Optical Encoder Installation Size 49mm K76

Hole Diameter 16mm Hollow Shaft Optical Encoder Installation Size 49mm K76

  • High Light

    high speed rotary encoder

    ,

    relative rotary encoder

  • Model
    K76 Series Rotary Encoder
  • Thickness
    37mm
  • Shaft Load
    Radial 70N; Axial 50N
  • Signal Circuit
    NP,PNP,TTL,HTL,Voltage
  • Top REV
    3000RPM
  • Top Response Frequency
    300KHZ
  • Temperature
    Operating:-20 ~+85°
  • Mark To Space Ratio
    45% To 55%
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K76 Series rotary encoder
  • Minimum Order Quantity
    could 1pcs encoder to start order first
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

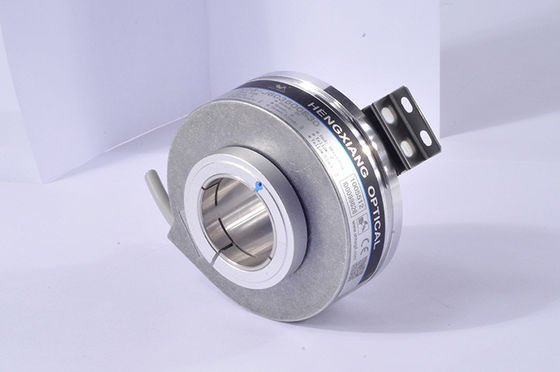

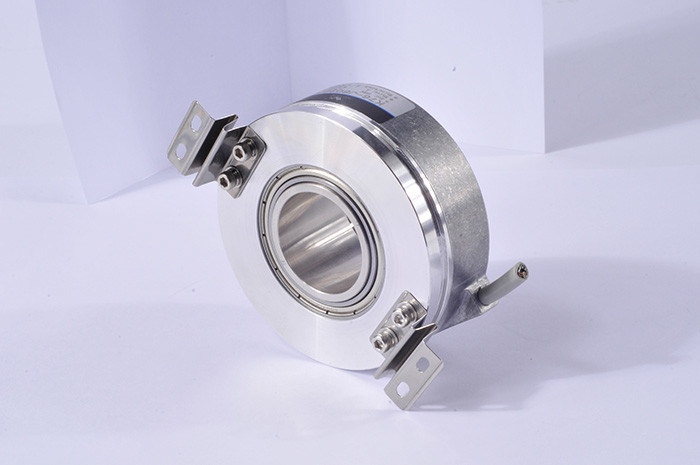

Hole Diameter 16mm Hollow Shaft Optical Encoder Installation Size 49mm K76

Hole diameter 16mm rotary encoder installation size 49mm K76 hollow shaft optical encoder





Hole Diameter 16mm Hollow Shaft Optical Encoder Installation Size 49mm K76 0



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.









Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



K76 incremental encoder Parameter table

Items Basic parameters
Encoder type Incremental encoder
Brand HENGXIANG
Resolution 100;200;250;300;360;400;450;500;512;600;720;800;1000; 1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
  7200;8192;10000;14400;16384;28800;32768
  1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4; 2500/6;2500/8;4096/4;4096/6;4096/16; 5000/6;5000/8;5000/10;5000/12;5000/16;
  8192/8;8192/10;/8192/16;10000/8;10000/10;10000/16;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 80 x 10-3 N.m
Intertia moment less than 100x 10-6kg.m2
Shaft load Radial 70N; Axial 50N
Top REV 3000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+85°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 1960m/s2 ,11 ms three times for X,Y,Z direction individually
