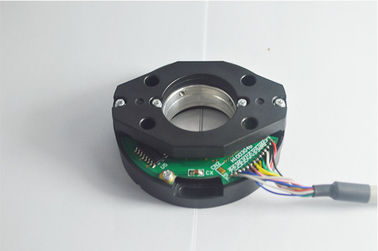

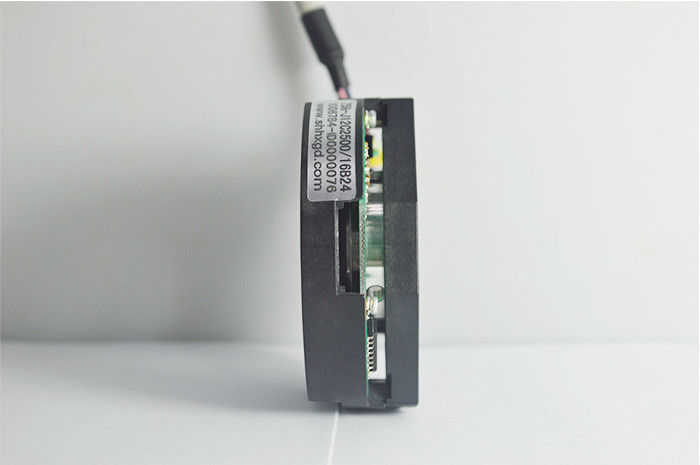

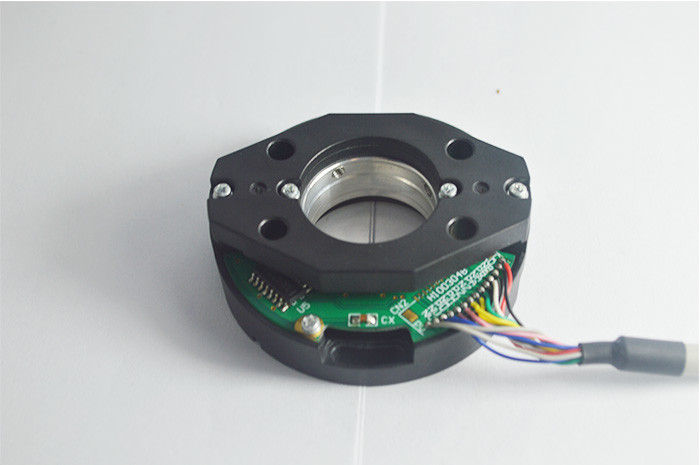

Z58 Optical Rotary Bearingless Encoder Space Saving With ABZUVW Phase

Z58 Optical Rotary Bearingless Encoder Space Saving With ABZUVW Phase

    • Z58 Optical Rotary Bearingless Encoder Space Saving With ABZUVW Phase
    • Z58 Optical Rotary Bearingless Encoder Space Saving With ABZUVW Phase
  • Z58 Optical Rotary Bearingless Encoder Space Saving With ABZUVW Phase

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: Z58-J non-bearing encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Keywords: Incremental Rotary Encoder Shaft Diameter: 14mm;19mm;20mm;24mm;25mm
    Consumption Current: 120mA MAX Resolution: 1024ppr(Min) To 10000ppr(Max)
    Optional Supply Voltage: DC5V & DC8-30V External diameter: 58mm
    Net weight : About 85g (with Package) Slew Speed: 5000rpm

    Z58 bearingless optical rotary encoder up to 10000 resolution space saving with ABZUVW phase



    Simple introduction of Z58 Series

    Consumption current: 120mA MAX

    Pulse per round ; Min 1024; Max 10000

    Motor Poles:4 poles, 6 poles,8 poles,10 poles,16 poles

    Encoder type: bearingless encoder

    Thickness: 15mm only

    Usage: widely used on robot arms or other robot application to save space

    Hollow shaft diameter : Min is 14mm through hole shaft, Max is 24mm through hole shaft



    Key Features of Z58 Encoder

    Items Basic parameters
    Brand HENGXIANG
    Encoder type bearingless encoder
    External diameter 58mm
    Thickness 15mm
    Hollow shaft type through hole
    Hollow shaft diameter 14mm;19mm;20mm;24mm;25mm
    Resolution 1024/8;1024/10;1024/16;2048/6;2048/8;2048/10;2500/8;
    2500/164096/8;4096/10/;4096/16;5000/8;5000/10;
    5000/16;10000/8;10000/10;10000/16
    Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
    Supply voltage DC5V ; DC8--30V
    Outlet type Cable out from side
    Output mode line drive (26LS31) TTL
    line drive(DC8-30V) HTL
    Cable length 300mm
    Consumption current 120mA MAX
    Top response frequency 300KHZ
    GND not connect to encoder
    Slew speed 5000RPM
