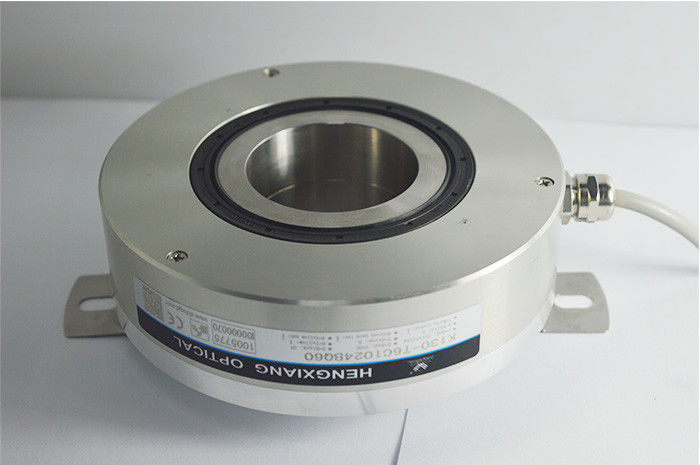

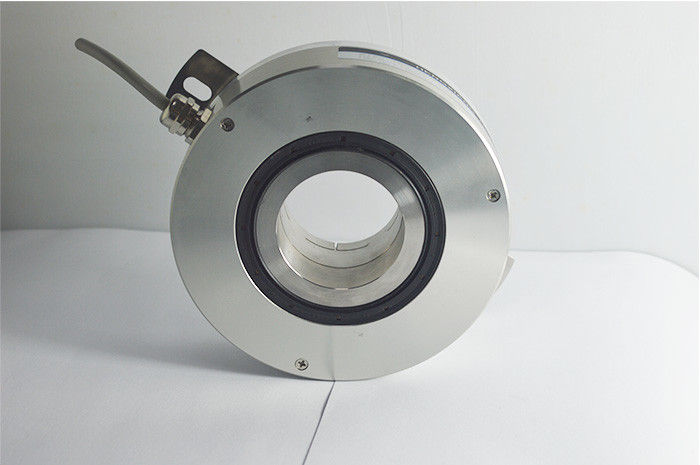

K130 55mm Hollow Shaft Elevator Encoder , Relative Rotary Encoder 65536 Resolution For CNC Machine

K130 55mm Hollow Shaft Elevator Encoder , Relative Rotary Encoder 65536 Resolution For CNC Machine

    • K130 55mm Hollow Shaft Elevator Encoder , Relative Rotary Encoder 65536 Resolution For CNC Machine
    • K130 55mm Hollow Shaft Elevator Encoder , Relative Rotary Encoder 65536 Resolution For CNC Machine
  • K130 55mm Hollow Shaft Elevator Encoder , Relative Rotary Encoder 65536 Resolution For CNC Machine

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: K130 Series relative rotary encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Keywords: Relative Rotary Encoder External diameter: 130mm
    Thickness: 48mm Hollow Shaft Type: Through Hole (clamping Ring At Prior)
    Resolution : 1024;2048;4096;8192;16384;32768;65536 Package: Carton Box
    Outlet Type: Socket Out From Side Signal Circuit: TTL, HTL

    Installation size 150mm K130 hollow shaft encoder 55mm 65536 resolution for CNC machine



    Our Service

    • Quick response once received customer’s quotation query
    • Professional engineer team, to solve your problems at any time
    • Strictly inspection before shipment
    • Various encoder models to be selected
    • Short lead time
    • High quality standard



    Related model number of K130 Series

    K130-T2F1024BQ48

    K130-T3FH2048 BQ55

    K130-T4C4096 BQ60

    K130-T6E8192 BQ48

    K130-T2F16384 BQ55

    K130-T3F32768 BQ60

    K130-T4E65536 BQ48

    K130-T6C1024 BQ55



    K130 Encoder Product introduction

    Items Basic parameters
    Brand HENGXIANG
    Encoder type Incremental encoder
    External diameter 158mm
    Thickness 43mm
    Installation dimension R85mm(spring plate 158T170)
    Hollow shaft type through hole (clamping ring at prior)
    Hollow shaft diameter 70mm,75mm,78mm;80mm;82mm
    Resolution 1024;2048;20000;40000;80000
    Output phase Phase A+,B+,Z+,A-,B-,Z-
    Supply voltage DC5V ; DC8-30V
    Outlet type Cable out from side
    Output mode Push-pull output
    line drive (26LS31) TTL
    line drive(DC8-30V) HTL
    Consumption current 100mA MAX
    Top response frequency 300KHZ
    Insulation resistance 10MΩ
    GND not connect to encoder
    starting torque less than 400 x 10-3 N.m
    Intertia moment less than 350x 10-6kg.m2
    Shaft load Radial 90N; Axial 60N
    Top REV 3000RPM
    Environmental temperature Operating:-20 ~+80°;storage:-25 ~+85°
    Environmental humidity Operating and storage: 35-85%RH(noncondensing)
    Vibration(endure) Amplitude 1.52mm,5-55Hz,2 hours for three axis individually



    Usage for K130 large hole encoder

    • Projector
    • Injection molding machine
    • Disc shoe machine,
    • Textile dyeing
    • Leather machine
    • Paper equipment
    • Industrial machinery
    • Paper cutter
    • CNC machine tool
    • Automatic measurement
    • Remote control





    Matters needing attention

    1. Must choose the power supply voltage: DC5V or DC8-30V

    2. Must choose leaf spring plate model number if you select hollow shaft encoder

    3. Please advise the motor speed (RPM) that you actually use

    4. If you have any other requirements, please provide detail parameters



    Notice for encoder installation

    1. Please read the encoder specification carefully before installation

    2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

    3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

    4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

    5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

    6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

    7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

    8. The encoder cable signal can’t be drew or bent forcibly.
