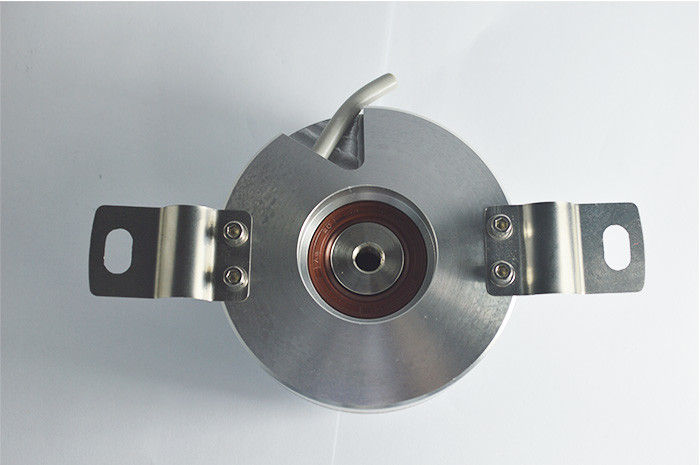

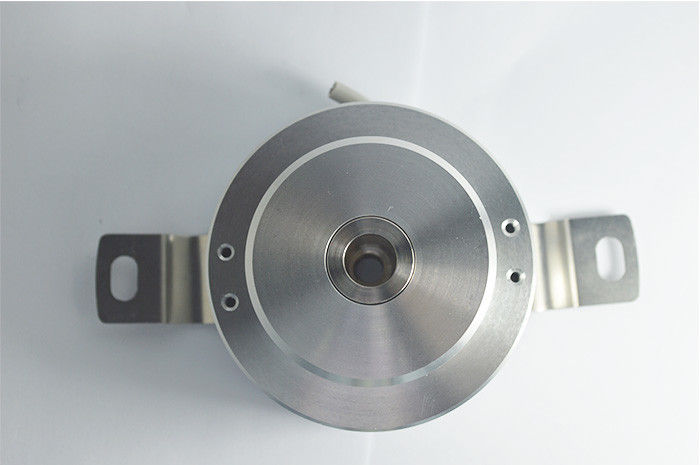

IP65 Industrial Elevator Encoder External Diameter 80mm CE Certification

IP65 Industrial Elevator Encoder External Diameter 80mm CE Certification

    • IP65 Industrial Elevator Encoder External Diameter 80mm CE Certification
    • IP65 Industrial Elevator Encoder External Diameter 80mm CE Certification
  • IP65 Industrial Elevator Encoder External Diameter 80mm CE Certification

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: K80 industrial rotary encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Model: Industrial Rotary Encoder Encoder Type: Incremental Encoder
    External diameter: 80mm Hollow Shaft Diameter: 10.5mm, 12mm
    Installation Dimension: R60.5mm(spring Plate 76T69) Motor Speed: 2000RPM ;IP65≤1500 RPM
    Shaft Load: Radial 50N; Axial 30N Net weight : About 600g (with Package)

    K80 external diameter 80mm elevator encoder hollow shaft 20mm installation size 121mm IP65



    Our advantage

    • Over 18 years encoder production experience
    • More than 20 years experienced engineers
    • Professional working team
    • High quality standard
    • Quick Response time
    • Utility Model Patent Certificate
    • Own brand and unique brand
    • CE certification for all models
    • Prompt delivery date
    • 100% full inspection before shipment



    Product introduction of K80 Series encoder

    Items Basic parameters
    Encoder type Incremental encoder
    Brand HENGXIANG
    External diameter 80mm
    Thickness 50mm
    Installation dimension R60.5mm(spring plate 76T69)
    Hollow shaft type through hole
    Hollow shaft diameter 10.5mm; 12mm, shaft diameter can be customized.
    Resolution 1000;1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
    7200;8192;10000;14400;16384;28800;32768
    Output phase Phase A+,B+,Z+,A-,B-,Z-
    Supply voltage DC5V ; DC8-30V
    Outlet type Cable outlet only
    cable with socket outlet
    Output mode NPN/PNP(Open Collector Output)
    Voltage output
    Push-pull output
    line drive (26LS31) TTL
    line drive(DC8-30V) HTL
    Consumption current 100mA MAX
    Top response frequency 300KHZ
    Allowable ripple ≤3%rms
    Load Voltage ≤DC30V
    GND not connect to encoder
    Mark to Space ratio 45% to 55%
    starting torque less than 20m N.m
    Intertia moment less than 25x 10-6kg.m2
    Shaft load Radial 50N; Axial 30N
    Top REV 2000RPM ;IP65≤1500 RPM



    Shipment

    Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

    You could select the express according to your requirements if freight collector

    If you do not have any courier account, we will check and find a cheapest and safety express for you.

    Our factory has 30% discount with most courier company, so price could be as cheap as possible.



    Questions you may like to know before ordering

    Q: Where is your factory?

    A: Our factory is located on Shanghai City.

    Q: Can I pay a visit to your factory?

    A: Yes, you we welcome to visit our factory at any time if convenient.

    Q: How long is your delivery time?

    A: Usually 3 working days for sample, 7-15 days for mass production,

    The production date is according to order quantity.

    Q: What is the highest resolution of your encoder products?

    A: The highest resolution is 80000ppr, you can email us for more information.

    Q: Can your encoder be customized?

    A: Yes, our encoder can be customized according to your requirements,

    Q: Do you test your encoder product before shipment?

    A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.





    IP65 Industrial Elevator Encoder External Diameter 80mm CE Certification





    About Encoder Vibration

    Vibration acting on an encoder always cause wrong pulse easily.

    So we have to pay more attention to encoder working place.

    The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
