120mA MAX Z58 Servo Motor Encoder 10000 Pulse Cable Out From Side

120mA MAX Z58 Servo Motor Encoder 10000 Pulse Cable Out From Side

  • High Light

    precision rotary encoder

    ,

    servo motor encoder

  • Brand
    HENGXIANG
  • Modle
    Z58 Bearingless Encoder Module
  • Consumption Current
    120mA MAX
  • Resolution
    Up To 10000 Pulse
  • Optional Supply Voltage
    DC5-30V
  • Outlet Type
    Cable Out From Side
  • Weight
    85g
  • Cable length
    300mm
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Z58 bearingless encoder module
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

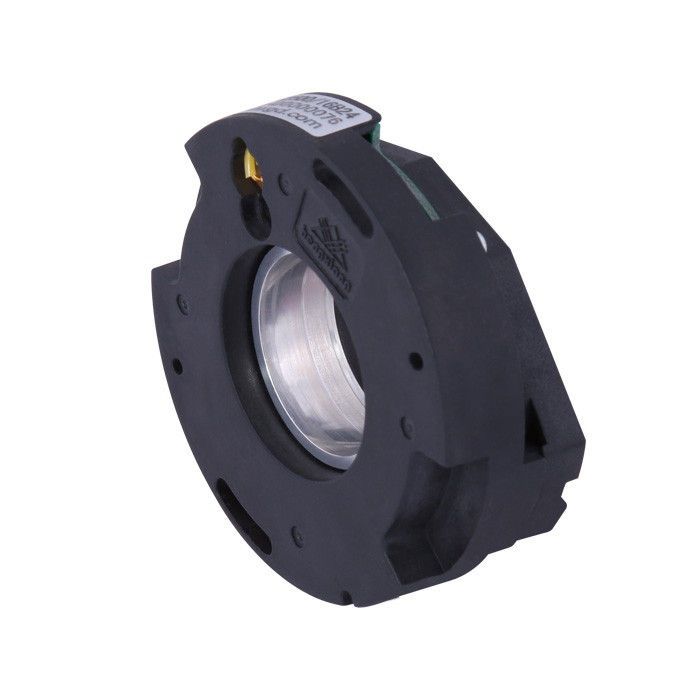

120mA MAX Z58 Servo Motor Encoder 10000 Pulse Cable Out From Side

bearingless encoder module for servo motor application economy encoder supplier



Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.



Detail Specifications of Z58 Series

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 58mm
Thickness 15mm
Hollow shaft type through hole
Hollow shaft diameter 14mm;19mm;20mm;24mm;25mm
Resolution 1024/8;1024/10;1024/16;2048/6;2048/8;2048/10;2500/8;
2500/164096/8;4096/10/;4096/16;5000/8;5000/10;
5000/16;10000/8;10000/10;10000/16
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
Consumption current 120mA MAX
Top response frequency 300KHZ
GND not connect to encoder
Slew speed 5000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminum alloy
Certification CE
package Carton box
Net weight About 85g (with package)



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.

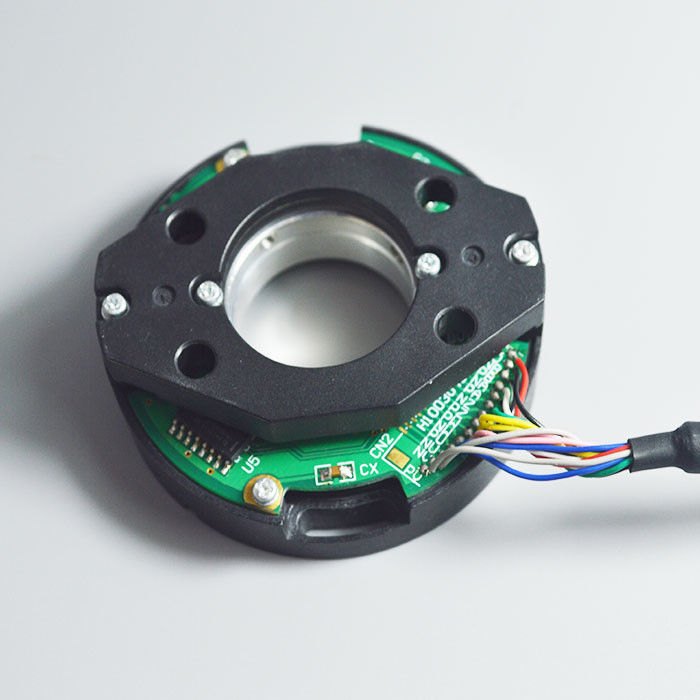

120mA MAX Z58 Servo Motor Encoder 10000 Pulse Cable Out From Side 0



Part Number of Z58 Series

Z58-J12C1000/10B14

Z58-C12E1024/8B15

Z58-C12C2048/8B16

Z58-J12E1024/10B18

Z58-C12E2048/10B19

Z58-J12C1024/16B20

Z58- C12E2048/16B14

Z58-J12C2500/8B15

Z58- C12E4096/8B16

Z58- C12E5000/10B20

Z58- J12C10000/10B15

Z58- C12E5000/16B16

Z58- J12C10000/16B19



Lead time

3-5 working days for sample after full paid

7-15 days for mass production after full paid
