Waterproof Dc Motor With Encoder / K50 1024 Ppr Incremental Encoder ABZ Phase

Waterproof Dc Motor With Encoder / K50 1024 Ppr Incremental Encoder ABZ Phase

  • High Light

    incremental type encoder

    ,

    incremental position encoder

  • Keywards
    Dc Motor Encoder K50
  • Brand
    HENGXIANG
  • Installation Dimension
    R27.5mm,R30mm, R34.5mm
  • Hollow Shaft Diameter
    8mm,10mm,12mm;14mm;15mm
  • Resolution
    50ppr(Min) To 23040ppr(Max)
  • IP Grade
    IP50;IP65
  • Shaft Material
    Stainless Steel
  • Supply voltage
    DC5V Or DC8-30V
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    dc motor encoder K50
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

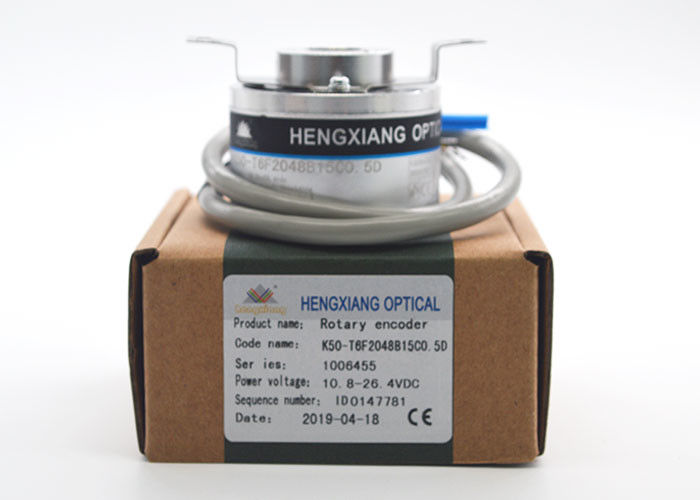

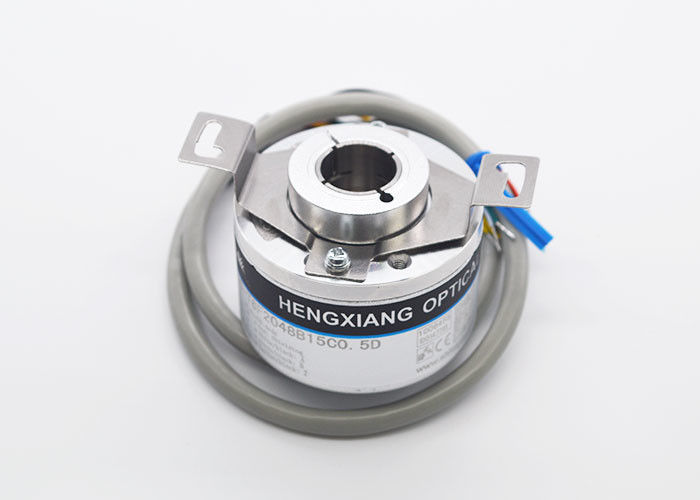

Waterproof Dc Motor With Encoder / K50 1024 Ppr Incremental Encoder ABZ Phase

dc motor encoder K50 incremental encoder 1024ppr ABZ phase ,IP65 waterproof encoder



K50 Encoder model number to select

K50-T6C1024Q6

K50-T3F1200Q8

K50-Q3N2048B

K50-Q6C2500Q10

K50-Q6E512B14

K50-Q2F360Q14

K50-T2V1440Q12

K50-T3F10000B12

K50-T3P16384B14

K50-T4C23040B15



Product introduction for K50 hollow shaft encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Installation dimension R27.5mm,R30mm, R34.5mm
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  Long line drive (26LS31)
  Compatible RS422
  Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+90°
  Storage temperature: -25~+100°
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Shell Die cast aluminum
Top response Frequency 300kHz Max
Shell Material die cast aluminum
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
GND not connect to encoder
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually
Shock(endure) 490m/s2,11 ms three times for X,Y,Z direction individually
Protection grade IP50 ; IP65





Waterproof Dc Motor With Encoder / K50 1024 Ppr Incremental Encoder ABZ Phase 0



FAQ

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

The production date is according to order quantity.





Our advantage

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
