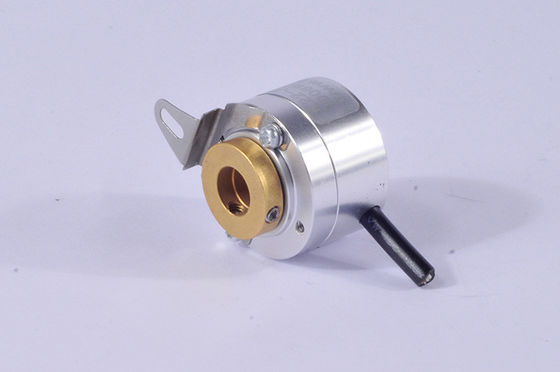

K22 Miniature Blind Hollow Shaft Rotary Encoder 22mm 250ppr - 1600ppr Resolution

K22 Miniature Blind Hollow Shaft Rotary Encoder 22mm 250ppr - 1600ppr Resolution

K22 Miniature Blind Hollow Shaft Rotary Encoder 22mm 250ppr - 1600ppr Resolution

Product Details:

Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K22 Miniature blind hollow shaft encoder

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: K22 Miniature Blind Hollow Shaft Encoder External diameter: 22mm
Hollow Shaft Diameter: 4mm;5mm,6mm,6.5mm Resolution: 250ppr - 1600ppr
Thickness: 18mm Voltage: DC5V ; DC8-30V
Gross: 35 Grams Cable length: 500mm

K22 Miniature blind hollow shaft incremental encoder For industrial applications 22mm



  • Resolution up to 1,600 pulses per turn
  • External diameter 22 mm
  • Blind hollow shaft Ø 4mm to 6.5 mm
  • Protection class IP40
  • Anti-rotation system through flexible flange or pin torque support
  • Connection by cable (other cable lenght available)



Product Basis information of K22 series rotary encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 22mm
Thickness 18mm
Installation dimension R12mm, spring plate 22T24
Hollow shaft type blind hole
Hollow shaft diameter 4mm;5mm,6mm,6.5mm
Resolution 250;256;360;400;500;512;720;800;1000;1024;1440;1600
Output phase Phase A,B,Z
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode Collector open circuit output(NPN &PNP)
TTL(DC5V)
HTL(DC8-30V)
Protection grade IP50
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Rise/ Fall time 1usec Max( 1000mm cable)
starting torque less than 5x 10-4 N.m
Intertia moment less than 1x 10-6kg.m2
Shaft load Radial 2N; Axial 2N
Top REV 5000r rpm



Few model number for K22

K22-J1N1660B4

K22-L2F1024B5

K22-L3PH1000B6

K22-L4C800B6.5

K22-J6E720B6.5

K22-J6C512B4

K22-J4E500B5

K22-J3NH400B6

K22-L2F360B6.5

K22-L1V256B6

K22-J3F250B4
