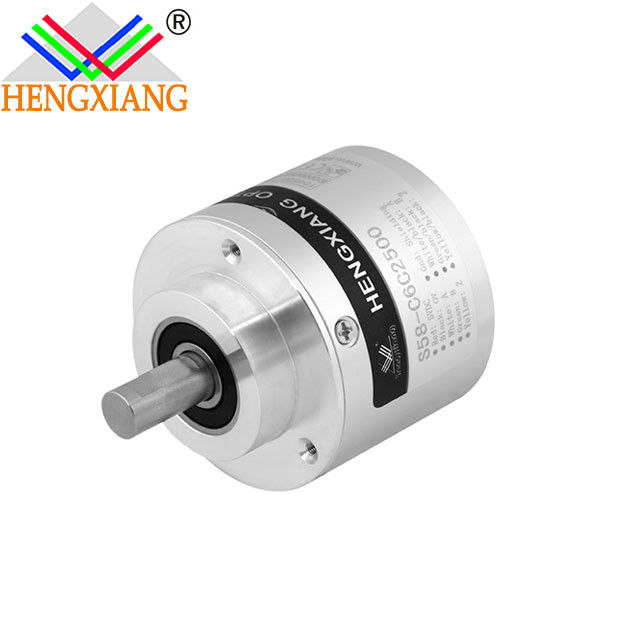

Incremental Quadrature Rotary Encoder S58 Solid Shaft Encoder

Incremental Quadrature Rotary Encoder S58 Solid Shaft Encoder

  • High Light

    S58 Solid Shaft Encoder

    ,

    Incremental Quadrature Rotary Encoder

    ,

    6000RPM Quadrature Rotary Encoder

  • Product Name
    Quadrature Rotary Encoder S58 Solid Shaft Encoder Complementary Output With Alarm/sensing
  • Encoder Type
    Incremental Encoder
  • Solid Shaft diameter
    10mm(D Shape)
  • Supply voltage
    DC5V ; DC8-30V
  • Top REV
    6000RPM ;IP65≤3000 RPM
  • Bearing Life
    1.5x109 Revs At Rated Load(100000hrs At 2500RPM)
  • Shaft Material
    Stainless Steel
  • Certification
    CE
  • Shell Material
    Die Cast Aluminum
  • Cable Length
    1000mm(cable With Shielding)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S58
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

Incremental Quadrature Rotary Encoder S58 Solid Shaft Encoder

Quadrature rotary encoder S58 solid shaft encoder complementary output with alarm/sensing



 Product Description






Some part number for S58 series

S58-T3F8192C2

S58-Q2N4096

S58-D6C5000C5

S58-C4E2000

S58-T3N2048C6

S58-Q2F1200

S58-D1V1000

S58-C6E1024

S58-T4C200

S58-Q3V100 DC5V

S58-D2N60 DC8-30V

S58-C1F50 DC24V



S58 Characteristics



Product Name

S58 heavy duty encoder outer diameter 58mm shaft 10mm 1024ppr 758-A-21S1024RHV

Brand

HENGXIANG

Solid Shaft diameter

10mm(D shape)

Resolution

50;60;100;200;250;256;300;360;400;450;500;512;600;

700;720;800;900;1000;1024;1200;2000;2048;2500;5000

8192;10000;11520;16384;20000;23040

Output phase

Phase A+,B+,Z+ , A- B- Z-

Supply voltage

DC5V ; DC8-30V

Outlet type

Cable out from back

Cable out from side

Socket out from side

Socket out from back

Solid Shaft diameter

10mm(D shape)

Resolution

1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;

4096;5000;5760;8192;10000;11520;16384;20000;23040

1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;

2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8

Output mode

NPN Collector open circuit output

Voltage output

Push-pull output

Difference output

Long line drive (26LS31)

compatible RS422

Long line drive (RT7272)

Top REV

6000RPM ;IP65≤3000 RPM

Bearing life

1.5x109 revs at rated load(100000hrs at 2500RPM)

Environmental temperature

Operating:-20 ~+80°;storage:-25 ~+85°

Environmental humidity

Operating and storage: 35-85%RH(noncondensing)

Vibration(endure)

Amplitude 0.75mm,5-55Hz,2 hours for three axis individually

Sock(endure)

490m/s2 ,11 ms three times for X,Y,Z direction individually

Shaft Material

Stainless steel

Shell Material

die cast aluminum

Cable length

1000mm(cable with shielding)

Certification

CE

package

Carton box

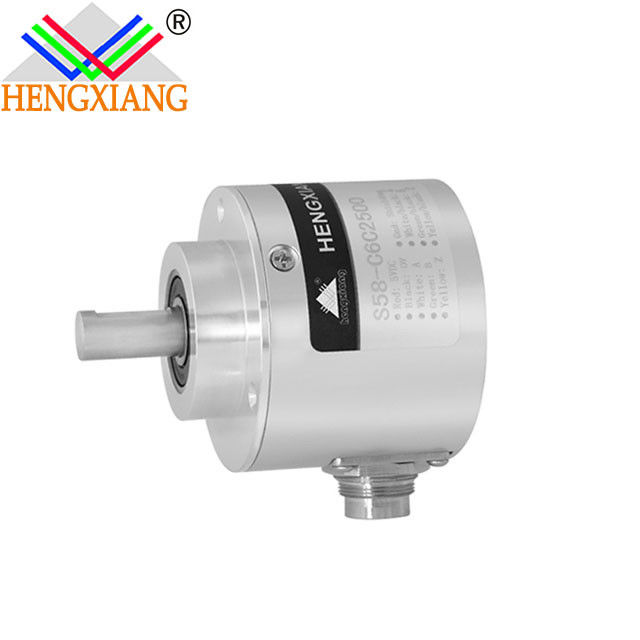

Incremental Quadrature Rotary Encoder S58 Solid Shaft Encoder 0

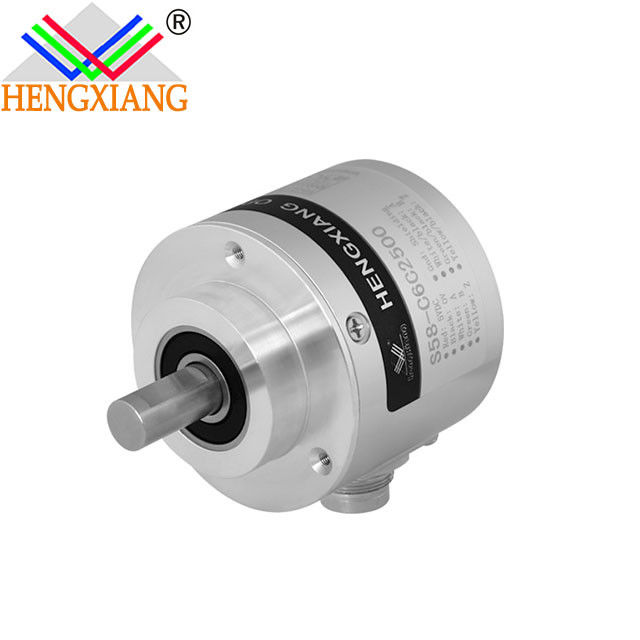

Incremental Quadrature Rotary Encoder S58 Solid Shaft Encoder 1

Few Questions you may like to know before ordering

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?

A: HENGXIANG

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.
