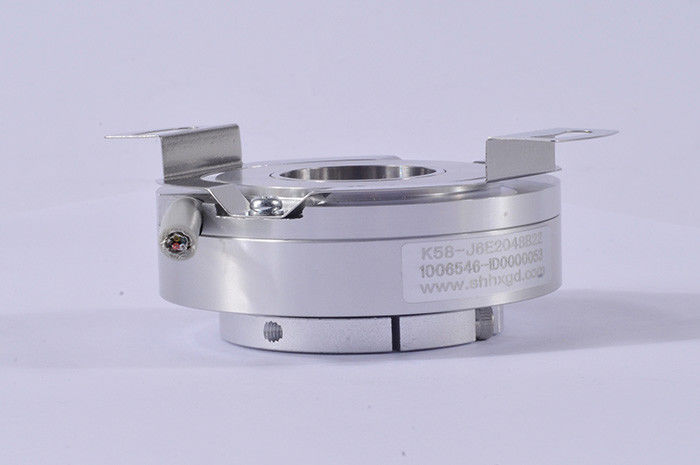

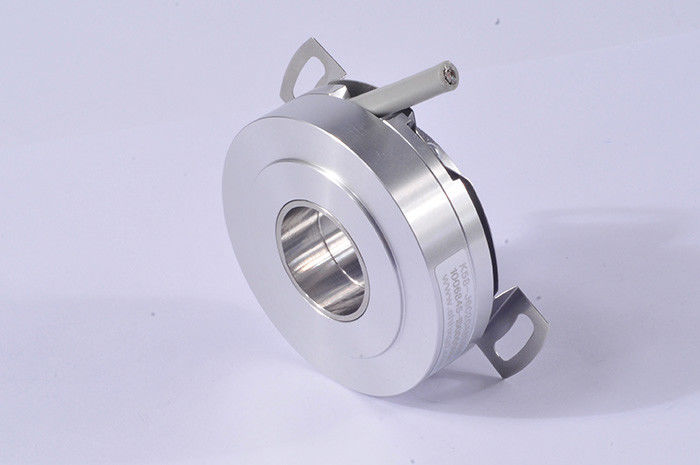

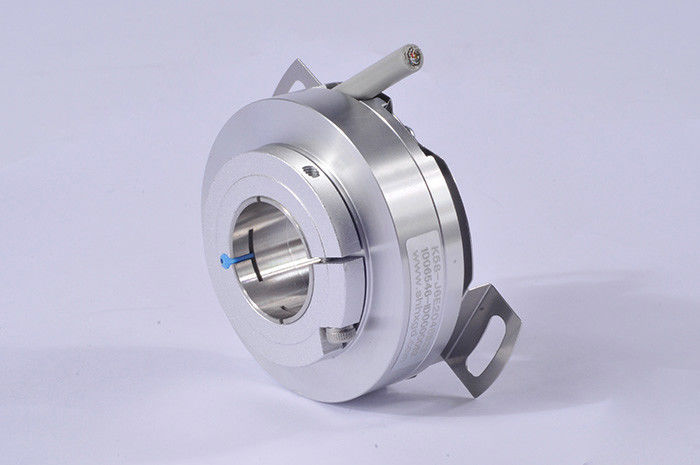

Hollow Shaft Heavy Duty Encoder K58 Photoelectric Rotary Encoder 7200ppr

Hollow Shaft Heavy Duty Encoder K58 Photoelectric Rotary Encoder 7200ppr

  • High Light

    Hollow Shaft Heavy Duty Encoder

    ,

    K58 Photoelectric Rotary Encoder

    ,

    7200ppr Photoelectric Rotary Encoder

  • Product Name
    Hollow Shaft Heavy Duty Encoder K58 Photoelectric Rotary Encoder 7200ppr Dc8-30v
  • Encoder Type
    Incremental Encoder
  • External diameter
    58mm
  • Thickness
    24mm
  • Supply voltage
    DC5V ; DC8-30V
  • Outlet Type
    Cable Out From Side
  • GND
    Not Connect To Encoder
  • Mark To Space Ratio
    45% To 55%
  • Top REV
    3000RPM
  • Shaft Material
    Stainless Steel
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K58
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

Hollow Shaft Heavy Duty Encoder K58 Photoelectric Rotary Encoder 7200ppr

Hollow shaft heavy duty encoder K58 photoelectric rotary encoder 7200ppr dc8-30v



 Product Description




Video of Encoder products

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.



K58 encoder Product Description



Items

Basic parameters

Brand

HENGXIANG

Encoder type

Incremental encoder

External diameter

58mm

Thickness

24mm

Installation dimension

R34.1mm(spring plate 58T64)

Hollow shaft type

clamping ring at prior or clamping ring at rear

Hollow shaft diameter

15mm,16mm,18mm;20mm;22mm

Resolution

1000;1024;1200;1250;1440;2000;2048;2500;4096;5000;

7200;14400;28800

1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;

2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;

5000/4;5000/6;/5000/8

Output phase

Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Supply voltage

DC5V ; DC8-30V

Outlet type

Cable out from side

GND

not connect to encoder

Mark to Space ratio

45% to 55%

starting torque

less than 9.8 x 10-3 N.m

Intertia moment

less than 6.5x 10-6kg.m2

Shaft load

Radial 50N; Axial 30N

Top REV

3000RPM

Bearing life

1.5x109 revs at rated load(100000hrs at 2500RPM)

Environmental temperature

Operating:-20 ~+85°;storage:-25 ~+90°

Environmental humidity

Operating and storage: 35-85%RH(noncondensing)

Vibration(endure)

Amplitude 1.52mm,5-55Hz,2 hours for three axis individually

Sock(endure)

980m/s2 ,11 ms three times for X,Y,Z direction individually

Shaft Material

Stainless steel





Questions you may like to know before ordering

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.



Related K58 encoder model number for choosing

K58-J1V2000B22

K58-J2N5000BQ22

K58-J3F7200B20

K58-J4E14400BQ20

K58-J6C28800B19 DC5V

K58-J12C2500/8BQ19 DC5V

K58-J12E1000/8B18 DC12-24V

K58-J12E1024/4BQ18 DC8-30V

K58-J12C2048/6BQ15 DC5V
