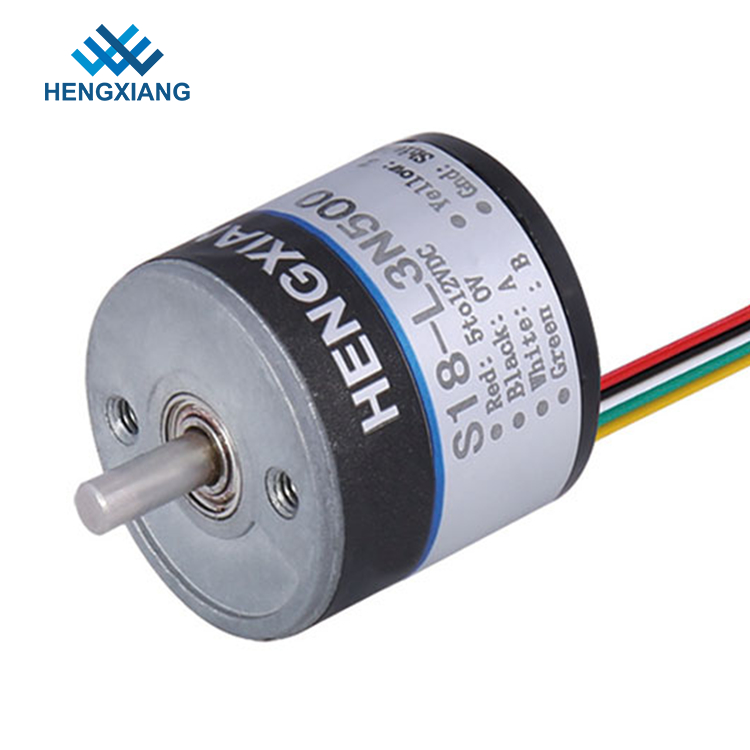

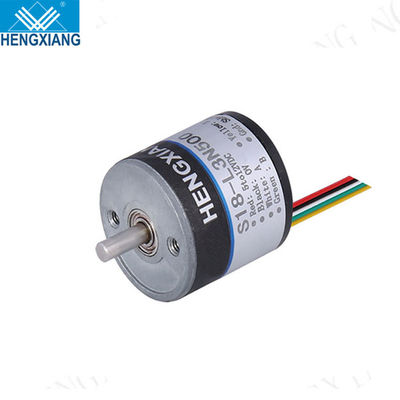

S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary

S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary

  • High Light

    Robot Machine Incremental Rotary Encoder

    ,

    Solid Incremental Rotary Encoder

    ,

    Incremental Shaft Encoder 36ppr

  • External diameter
    18mm
  • Solid Shaft Diameter
    2.5mm
  • Resolution
    36-1600 Ppr
  • Output phase
    Phase A,B,Z
  • Outlet Type
    Cable Out From Side/back
  • Output mode
    NPN &PNP
  • Protection grade
    IP50
  • Supply voltage
    DC5V & 8-30V
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S18
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary

S18 small encoder Solid shaft 2.5mm robot machine 36ppr NPN PNP incremental rotary



1. Feature: Solid Shaft encoder,also called rotary encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to an analog or digital code.



2. Application: Rotary encoders are used in many applications that require precise shaft unlimited rotation—including industrial controls, robotics, special purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs),controlled stress rheometers, and rotating radar platforms.



3. About encoders:

There are two main types: Absolute and incremental (relative).

The output of absolute encoders indicates the current position of the shaft, making them angle transducers.

The output of incremental encoders provides information about the motion of the shaft, which is typically further processed elsewhere into information such as speed, distance and position.



4. Important parameters:

Resolution:

36-1600 ppr



Basic parameters:

Brand HENGXIANG
External dimensions External diameter: 18mm
Thickness: 18mm
Solid Shaft Diameter: ⌀2.5mm
Resolution 36;50;60;100;200;250;256;300;360;400;500;512;720;800;1000;1024;1440;1600
Output phase Phase A,B,Z
Supply voltage DC5V ; DC8-30V
Outlettype Cable out from side
Cable out from back
Output mode Collector open circuit output(NPN &PNP)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Top Resonse Frequency 100kHz Max
Top Rev 5000rpm
Protection grade IP50
Consumption current 50mA Max
Rise/ Fall time 100nsec Max
Shaft Load Radial: 2N; Axial:2N
Vibration(endure) Amplitude 0.75mm,10-50Hz,1 hour for X/Y/Z direction individually
Shock(endure) 49/m/s2,three times for X,Y,Z direction individually
Shaft Material 304 stainless steel
Cable length 150mm
Shell Aluminium Alloy
Package Carton box
Net weight About 20g (with package)
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 0
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 1
Model Selection Guide
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 2
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 3

Product Usage
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 4
  •

    •

Rotary encoder Applications:
--inspection machine of electronic omponents--Pipeline radar
--Manual image measuring instrument
--Hydraulic transmission test comprehensive test bench
--Automatic bar feeder
--Intelligent Fertilizer
--Lifting and metallurgical three-phase asynchronous motors
--Solar air conditioner
--Armature rotor test system
Packing&Shipping
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 5
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 6
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 7
S18 Small Encoder Solid Shaft 2.5mm Robot Machine 36ppr NPN PNP Incremental Rotary 8
