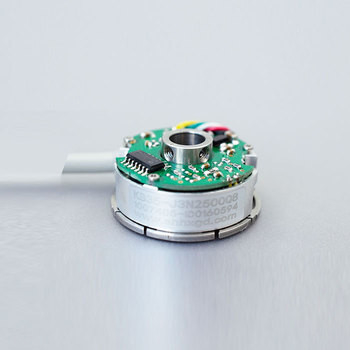

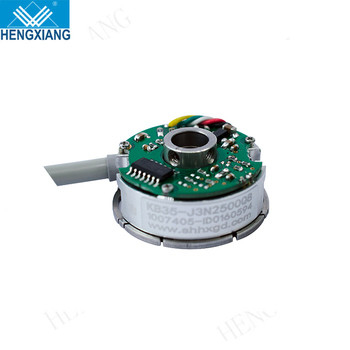

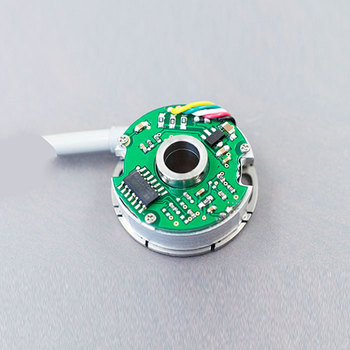

35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic

35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic

  • High Light

    35mm Mini Incremental Rotary Encoder

    ,

    UVW Signal Incremental Rotary Encoder

    ,

    Servo Motor Robotic Incremental Shaft Encoder

  • External diameter
    35mm
  • Thickness
    17mm
  • Installation Dimension
    R29mm
  • Shaft Type
    Through Hole
  • Hollow Shaft Diameter
    6mm;8mm
  • Resolution
    1024-14400 Ppr
  • Output phase
    OC(NPN/PNP); Push-pull; TTL(DC5V); HTL(DC8-30V)
  • Outlet Type
    Radial Cable/socket
  • Pole
    4pole/6pole/8pole
  • Output Phase
    AB/ABZ/±AB/±ABZ/±ABZUVW
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    KB35
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic

35mm mini incremental rotary encoder hollow shaft UVW signal servo motor robotic





1. Feature: Miniature size 35mm, Incremental encoder, small volume, extra thin, unique structural design, easy to install.



2. Application: Automation control like Servo motor, textile industry, robot, small instrument etc.



3. Important parameters:

External dia: 35mm, thickness 17mm,

Hollow shaft: Hollow shaft 6mm/8mm,

Resolution: High resolution 1024-14400ppr, UVW signal 4pole/6pole/8pole

Supply voltage: DC5V; DC8-30V

Outlet type: Radial socket or radial cable.



Product Description
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental Type
External diameter
35mm
Thickness
17mm
Hollow shaft type
Through hole
Hollow shaft diameter
6mm;8mm
Resolution
1024;2048;2500;3600;5000;7200;10000;14400
Output phase
2=AB;3=A+B+Z; 4=±A±B;6=±A±B±Z;12=±A±B±Z±U±V±W
Supply voltage
DC5V; DC8-30V
Outlet type
Radial connector; Radial cable
Output mode
N=OC(NPN); C=TTL(DC5V)
E=HTL(DC8-30V); S=TTL(DC5V)
Consumption current
120mA Max
Top response frenquency
100kHZ; 200kHZ; 300kHZ
GND
not connected to the encoder
Starting torque
less than 5.9x10-³N.m
Inertia moment
less than 1.5x 10-6kg.m2
Environmental temperature
Operating:-20 ~+100°C;
storage:-25 ~+110°C
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Protection
IP50
Material
Aluminium alloy
Certification
CE
package
Carton box
Net weight
About 60g



Model Selection
※(Contact us with the model and quantity to get the accurate price)

35mm Mini Incremental Rotary Encoder Hollow Shaft UVW Signal Servo Motor Robotic 0
