NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc

NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc

Products - Miniature Rotary Encoder
  • High Light

    Mini Rotary Encoder Diameter 18mm

    ,

    NPN Mini Rotary Encoder

    ,

    Rotary Solid Shaft Incremental Encoder

  • External dimensions
    Thickness: 18mm
  • Thickness 18mm
    Solid Shaft Diameter: ⌀2.5mm
  • Resolution
    36;50;60;100;200;250;256;360;400;500;512；720；800；1000;1024；1440;1600
  • Output phase
    Phase A,B,Z
  • Outlet Type
    Cable Out From Side
  • Output mode
    Collector Open Circuit Output(NPN &PNP)
  • Environmental temperature
    Operating Temperature: -20~+80° (Non Icing)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S18 incremental encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece/ packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc

  • NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc
  • NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc
  • NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc
Get Price Contact Now

NPN outer diameter 18mm mini rotary encoder solid shaft 2.5mm 60ppr 3.3Vdc



1,Working principle:

By a central shaft of the photoelectric code disk, which has a ring through, dark inscription, there are photoelectric transmitting and receiving devices read, to obtain four groups of sine wave signals combined into A, B, C, D, each sine wave difference of 90 degrees phase difference (relative to a circumferential wave for 360 degrees), the C, D signal reverse, superimposed on the A, B two phases, can enhance the stability of the signal; the other each turn output a Z-phase pulse to represent the zero position reference position.

Since the phase difference between A and B is 90 degrees, it is possible to distinguish the forward and reverse rotation of the encoder by comparing whether phase A is in front or phase B is in front, and the zero reference position of the encoder can be obtained by the zero pulse.



1. Feature: Mini incremental encoder, hollow shaft, easy to install



2. Application: Subminiature motor, small instrument for automation control.



3. Important parameters: 18mm external dia, thickness 15.3mm, hollow/blind shaft 2.5mm, resolution max 1600 ppr, supply voltage DC5V; DC8-30V, protection grade IP50, cable length 150mm


Product Description

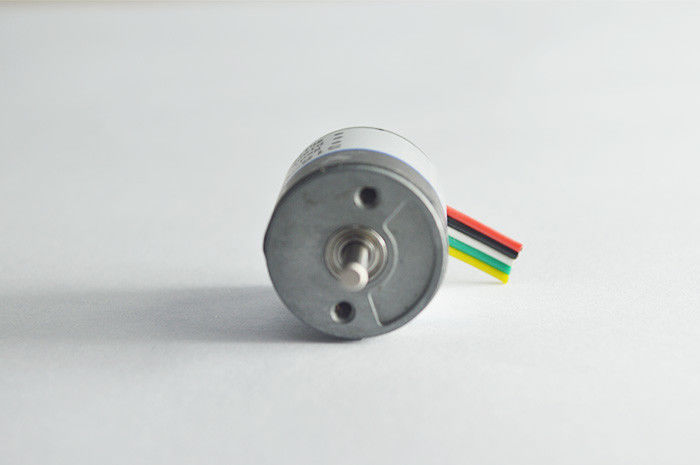

NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc 0

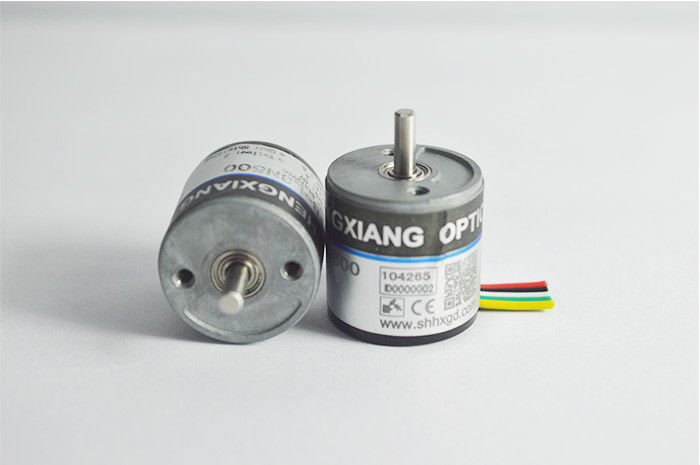

NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc 1

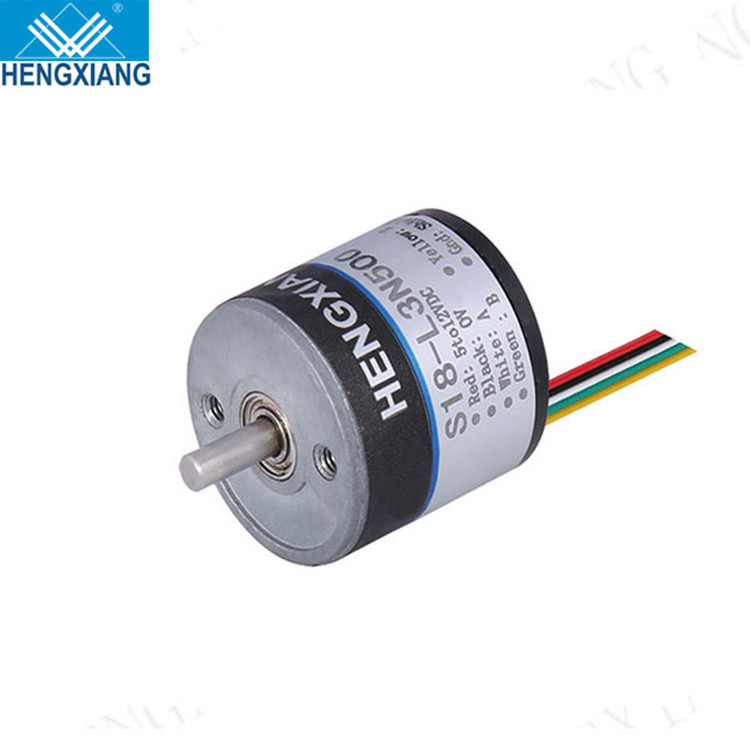

NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc 2

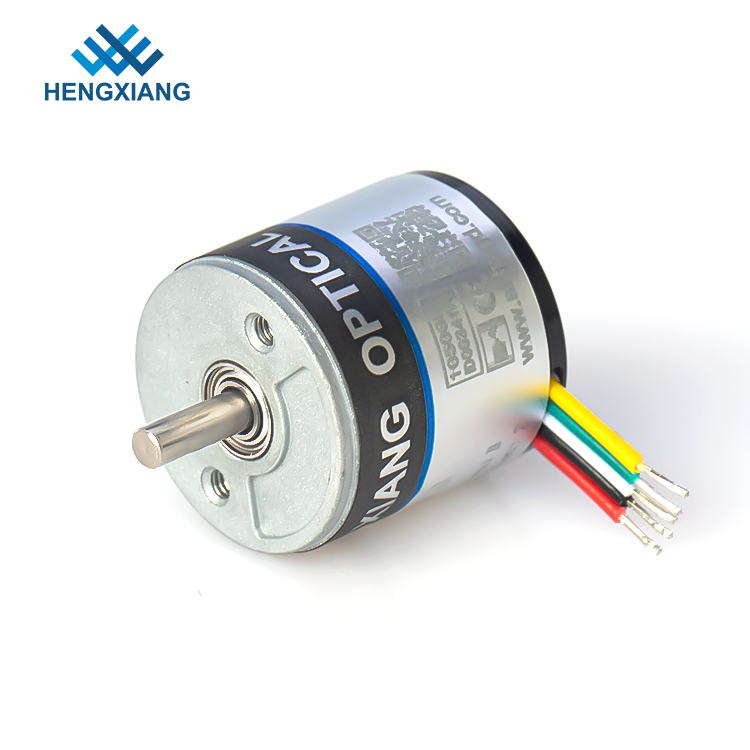

NPN Outer Diameter 18mm Mini Rotary Encoder Solid Shaft 2.5mm 60ppr 3.3Vdc 3



Detail parameters of S18 Series encoder
Brand
HENGXIANG
External dimensions
External diameter: 18mm
Thickness: 18mm
Solid Shaft Diameter: ⌀2.5mm
Resolution
36;50;60;100;200;250;256;360;400;500;512；720；800；1000;1024；1440;1600
Output phase
Phase A,B,Z
Supply voltage
DC5V ; DC8-30V
Outlettype
Cable out from side
Cable out from back
Output mode
Collector open circuit output(NPN &PNP)
Environmental temperature
Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity
Operating and storage: 35~85%RH (non-condensing)
Top Resonse Frequency
100kHz Max
Top Rev
5000rpm
Protection grade
IP50
Consumption current
50mA Max
Rise/ Fall time
100nsec Max
Shaft Load
Radial: 2N; Axial:2N
Vibration(endure)
Amplitude 0.75mm,10-50Hz,1 hour for X/Y/Z direction individually
Shock(endure)
49/m/s2,three times for X,Y,Z direction individually
Shaft Material
304 stainless steel
Cable length
150mm
Shell
Aluminium Alloy
Package
Carton box
Net weight
About 20g (with package)
Certification
CE
