Compact Rotary Encoder Module / Sensor , Z48 Series Shaft Encoder Sensor

Compact Rotary Encoder Module / Sensor , Z48 Series Shaft Encoder Sensor

Compact Rotary Encoder Module / Sensor , Z48 Series Shaft Encoder Sensor

Product Details:

Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Z48-J Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: each piece will be packed by one single carton box, safety package before shipment
Delivery Time: 1-3 working days for sample, 7 -10 days for mass production
Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability: 100K pieces per month
Contact Now
Detailed Product Description
Brand: HENGXIANG Shaft Diameter: 8mm
Thickness: 22.5mm Resolution: 50ppr(Min) To 2500ppr(Max)
Optional Supply Voltage: DC5V & DC8-30V Output Mode: Open Collector, Voltage Output, Push-pull, TTL,HTL
Outlet Type: Wire Out From Side Wire Length: 250mm (it Can Be Added As Requirement)
Weight: About 60g (with Package)

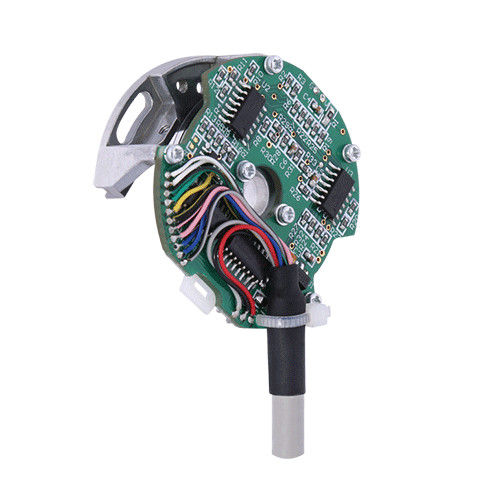

Z48 series encoder Modules external diameter 48mm shaft 8mm logical compact configuration easy to installation



Specifications:





Items Basic parameters
External dimensions External diameter: 48mm
Thickness: 22.5mm
Hollow Shaft diameter: 8mm
Resolution 50;60;100;200;250;300;360;400;450;500;512;600;
720;1000;1024;1200;2000;2048;2500;
4 poles,6poles,8poles,12poles

1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;1200/4;1200/6;1200/8;

2000/4;2000/6;2000/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;

Output phase Phase A,B,Z,U,V,W or A- B- Z- U- V- W-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side (with metal sleeve)
Output mode Open Collector circuit output
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
Long line drive (RT7272)
Long line drive (26LS31)-Phase ABZ back of UVW
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP40
Cable length 250mm(Can be added)
Shell Aluminium
package Carton box
Net weight About 60g (with package)
Certification CE
