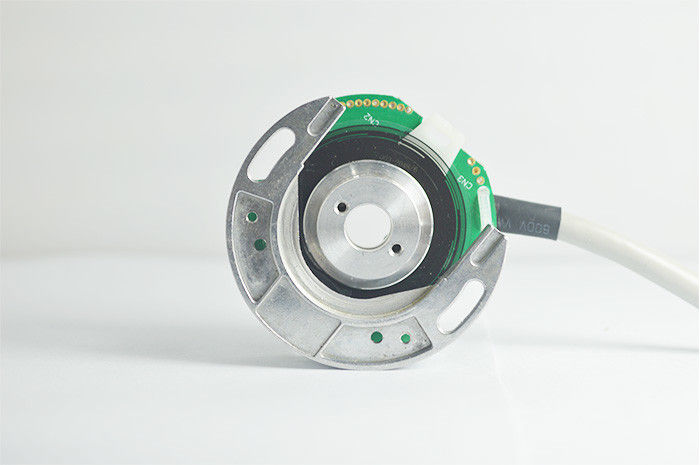

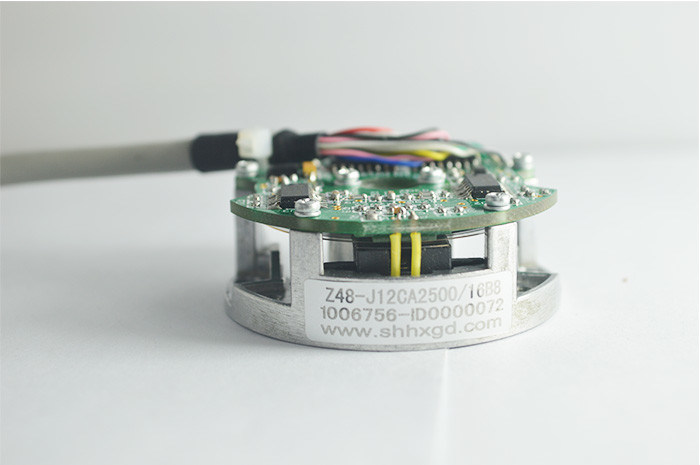

Totem Pole Output Z48 Rotary Encoder Module External Diameter 48mm Hole 8mm

Totem Pole Output Z48 Rotary Encoder Module External Diameter 48mm Hole 8mm

    • Totem Pole Output Z48 Rotary Encoder Module External Diameter 48mm Hole 8mm
    • Totem Pole Output Z48 Rotary Encoder Module External Diameter 48mm Hole 8mm
  • Totem Pole Output Z48 Rotary Encoder Module External Diameter 48mm Hole 8mm

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: Z48-J Rotary Encoder Module

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card, Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Product Name: Rotary Encoder Module Hollow Shaft Type: Through Hole
    GND: Not Connect To Encoder Optional Supply Voltage: DC5V & DC8-30V
    Output Mode: Open Collector, Voltage Output, Push-pull, TTL,HTL Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
    Weight: About 60g (with Package) Thickness: 22.5mm

    Totem pole output Z48 rotary encoder module external diameter 48mm hole 8mm customizable



    About Encoder Vibration

    Vibration acting on an encoder always cause wrong pulse easily.

    So we have to pay more attention to encoder working place.

    The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.



    Video of Encoder products

    There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

    At the same time, you could also visit our YOUTUBY page easily.

    Most of the encoder series have videos for reference.



    Z48 encoder Product introduction

    Items Basic parameters
    Brand HENGXIANG
    Encoder type bearingless encoder
    External diameter 48mm
    Thickness 22.5mm
    Dimension of limiting slot 30mm, depth 2.4mm
    Installation dimension R22.35mm
    Hollow shaft type through hole
    Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
    Supply voltage DC5V ; DC8-30V
    Outlet type Cable out from side
    Output mode NPN/(Open Collector Output)
      line drive (26LS31) TTL
      line drive(DC8-30V) HTL
    Cable length 500mm
    Consumption current 100mA MAX
    Top response frequency 300KHZ
    Allowable ripple ≤3%rms
    Load Voltage ≤DC30V
    Insulation strength AC500V 60s
    Insulation resistance 10MΩ
    GND not connect to encoder
    Mark to Space ratio 45% to 55%
    Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
    Environmental humidity Operating and storage: 35-85%RH(noncondensing)
    Material aluminum alloy
    Certification CE
    package Carton box
    Net weight About 60g (with package)



    Totem Pole Output Z48 Rotary Encoder Module External Diameter 48mm Hole 8mm



    Some encoder model number for reference

    Z48-J3N1024

    Z48-J4C1220

    Z48-J6E2000

    Z48-J12C2048/4

    Z48-J1N2048

    Z48-J2C2500

    Z48-J3N50

    Z48-J4C60

    Z48-J6E500

    Z48-J12C2500/8



    Signal Circuit of encoder

    1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

    An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

    2. PNP output

    The PNP output is an interface based on an output circuit with a PNP transistor.

    3. Push-Pull output(HTL)

    High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

    “Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

    4. TTL RS-422 output

    In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

    The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.
