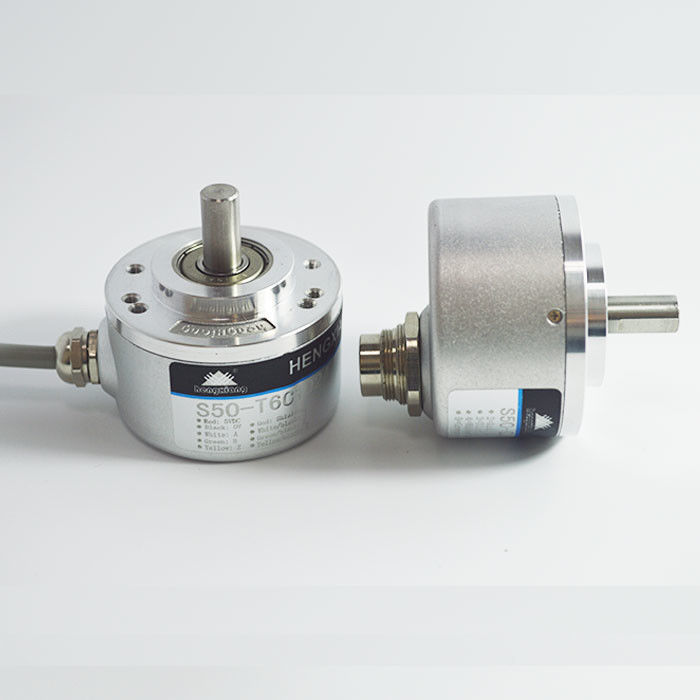

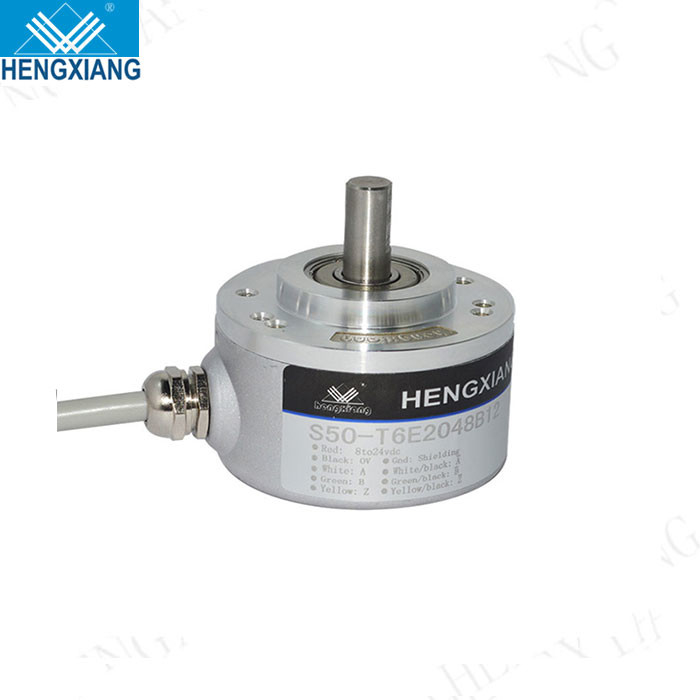

S50 Incremental Optical Rotary Encoders ABZ Phase Push Pull Output Cable Length 1000mm

S50 Incremental Optical Rotary Encoders ABZ Phase Push Pull Output Cable Length 1000mm

    • S50 Incremental Optical Rotary Encoders ABZ Phase Push Pull Output Cable Length 1000mm
    • S50 Incremental Optical Rotary Encoders ABZ Phase Push Pull Output Cable Length 1000mm
  • S50 Incremental Optical Rotary Encoders ABZ Phase Push Pull Output Cable Length 1000mm

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: S50 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Brand: HENGXIANG Product Name: Solid Shaft Optical Rotary Encoder
    External diameter: 50mm Thickness: 30mm
    Output phase: Phase A+,B+,Z+ A- B- Z- Supply voltage: DC5V ; DC8-30V
    Resolution: 50ppr - 23040ppr Package: Carton Box

    S50 incremental encoder ABZ phase push-pull output cable length 1000mm



    1. About Our Factory

    1. Own brand of "HENGXIANG" encoder,

    2. Has ISO9001:2000 Quality Management System Certificate and CE Certification

    3. Invention patents five and utility model patents five

    4. Passed Shanghai New and High-tech Achievements Transformation Project.

    5. Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.



    2. Our advantage

    High quality standard

    Quick Response time

    Utility Model Patent Certificate

    Own brand and unique brand

    CE certification for all models

    Prompt delivery date



    3. Detail Specifications

    Items Basic parameters
    Brand HENGXIANG
    Encoder type Incremental encoder
    External diameter 50mm
    Thickness 30mm
    Shaft length 16mm
    Solid Shaft diameter 8mm(D shape)
    Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
    700;720;800;900;1000;1024;1200;2000;2048;2500;5000
      8192;10000;11520;16384;20000;23040
    Output mode NPN&PNP
      Voltage output
      Push-pull output
      Difference output(TTL,HTL,RS422)
    Environmental temperature Operating temperature: -20~+90° (Non icing)
      Storage temperature: -25~+100° (Non icing)
    Environmental humanity Operating and storage: 35~85%RH (non-condensing)
    Protection grade IP50 ; IP65
    Cable length 1M (cable length could be added appropriately by
      require, but it need payment individually)





     4. Applications

    S50 rotary encoders can widely worked on following machines or devices, if you have the same application, or if you have any other usages, you are free to let us know.

    Packing machinery

    Capsule filling machine

    Pharmaceutical machine

    VVVF motor

    DC motor

    Stepper motor

    Servo motion controller

    Gearbox

    DC garage door motor

    DC servo motor

    Stock driver

    PMDC geared motor

    Brushless dc motor
    Servo motor

    Drawing machine



     5. Dimension

    S50 Incremental Optical Rotary Encoders ABZ Phase Push Pull Output Cable Length 1000mm



    6. Payment terms

    1. T/T, western union, credit card, Paypal,etc

    2. 3-5 working days after payment received

    3. Encoders will be shipped once ready



    7. Some Related S50 encoder model number

    S50-T1F200 DC5V

    S50-T3F1200 DC5-30V

    S50-T3F1024 DC12V

    S50-T2F2000 DC5V

    S50-T1F8192 DC5V

    S50-T3F10000 DC12-24V

    S50-T3F3040F DC8-30V

    S50-T1F2500 DC5V

    S50-T2F3600 DC5-30V

    S50-T3F4096 DC24V

    S50-T3F2048 DC5V

    S50-Q2F720 DC5V

    S50-Q1F1440 DC24V

    S50-Q3F1000 DC8-30V

    S50-D3F512 DC5-12V

    S50-D2F1024 DC30V

    S50-D3F1024 DC8V





    8. Production date

    1. for 1-10 samples: 3-5 working days

    2. for 20-50 mass production: 7-10 working days

    3. for over 100pcs, production will be discussed with customers and ship on time



    9. FAQ

    Q: What parameters are requested before ordering an encoder?

    A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

    If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

    Q: Where is your factory?

    A: Our factory is located on Shanghai City.

    Q: Can I pay a visit to your factory?

    A: Yes, you we welcome to visit our factory at any time if convenient.

    Q: How long is your delivery time?

    A: Usually 3 working days for sample, 7-15 days for mass production,

    The production date is according to order quantity.

    Q: What is the highest resolution of your encoder products?

    A: The highest resolution is 80000ppr, you can email us for more information.

    Q: Can your encoder be customized?

    A: Yes, our encoder can be customized according to your requirements,
