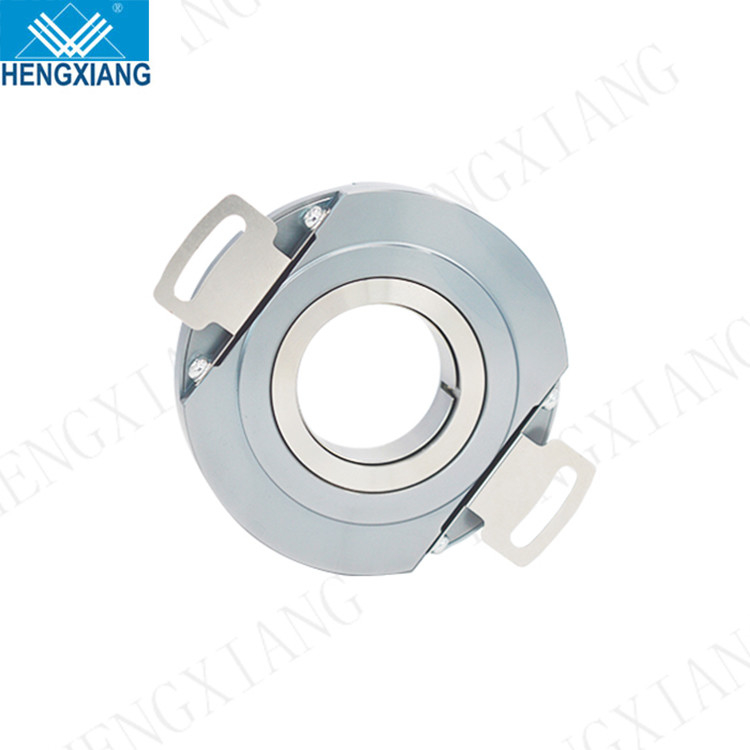

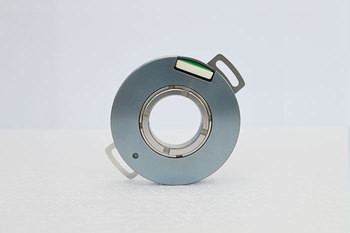

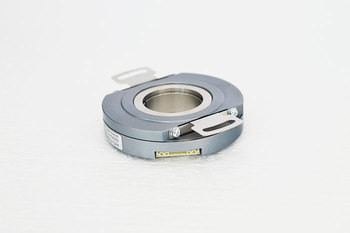

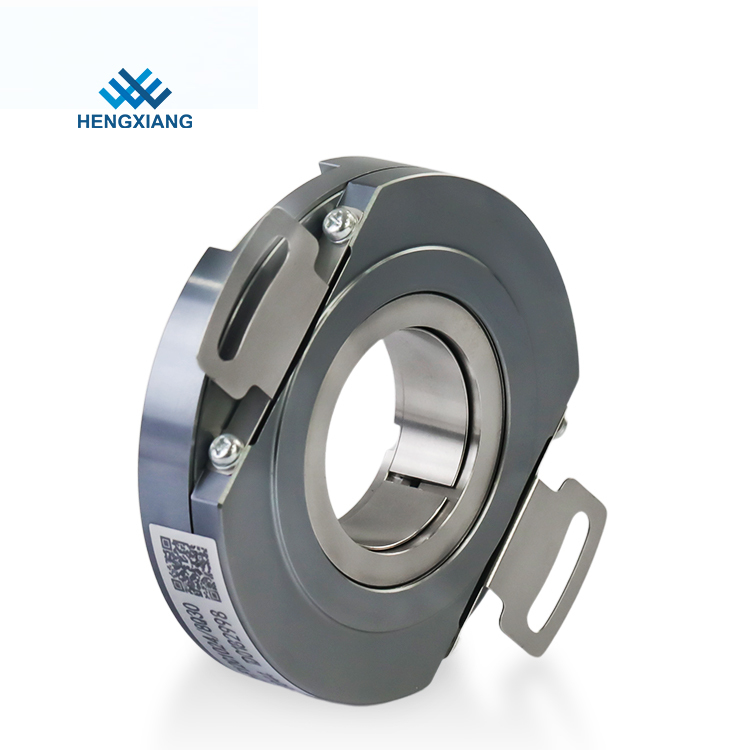

Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole

Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole

Products - Optical Rotary Encoders
  • High Light

    Digital Optical Rotary Pulse Encoder

    ,

    Single Bearing 25mm Optical Rotary Encoders

    ,

    UVW 8 Pole Optical Rotary Encoders

  • External Diameter
    72mm
  • Thickness
    15mm(Ultra-thin)
  • Hollow Shaft Type
    Through Shaft
  • Hollow Shaft Diameter
    Can Be Customized Up Tp 30mm
  • Pulse/Pole
    1024-10000ppr/8 Pole
  • Supply Voltage
    DC5V; DC8-30V
  • Protection Grade
    IP50
  • Output Type
    OC/Line Driver
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    PN72
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole

  • Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole
  • Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole
  • Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole
  • Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole
  • Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole
Get Price Contact Now

Digital optical rotary pulse encoder Single bearing 25mm hollow shaft UVW 8 pole





1. Feature: Mechanical soft connection structure, ultra-thin, with LED zero position indication, easy too install, various shaft, dust-proof protection.



2. Application: Servo motor, robot etc.



3. Important parameters:

External dia: 72mm, thickness 15mm,

Hollow shaft: Up to 30mm,

Resolution: Up to 10000ppr,

Supply voltage: DC5V; DC8-30V,

Protection grade: IP50,

Outlet type: Radial connector or radial cable.





Product Description
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental Type
External diameter
72mm
Thickness
15mm
Hollow shaft type
Through shaft
Hollow shaft diameter
25mm; 28mm; 30mm
Resolution
1024/8; 2048/8; 2500/8; 4096/8; 5000/8; 8192;/8; 10000/8
Output phase
3=A+B+Z; 6=A+A-+B+B-+Z+Z-; 6=Less wiring type A+B+Z Delay U+V+W; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage
DC5V; DC8-30V
Outlet type
Radial connector; Radial cable
Output mode
N=OC(DC5V&8-30V); C=TTL(DC5V)
E=HTL(DC8-30V); S=TTL(DC5V)(Less wiring type)
Consumption current
120mA Max
Top response frenquency
100kHZ; 500kHZ; 800kHZ
GND
not connected to the encoder, must be effectively connected to GND
Starting torque
Less than 60×10-3 N.m
Inertia moment
Less than 80×10-6 kg.m2
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Enviromental humidity
Operating and storage: 35~85%RH(noncondensing)
Protection
IP50
Material
Aluminium alloy
Certification
CE
package
Carton box
Net weight
About 200g
Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole 0
Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole 1

Product Usage
Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole 2

  •

    •

Rotary encoder Applications:
--inspection machine of electronic omponents--Pipeline radar
--Manual image measuring instrument
--Hydraulic transmission test comprehensive test bench
--Automatic bar feeder
--Intelligent Fertilizer
--Lifting and metallurgical three-phase asynchronous motors
--Solar air conditioner
--Armature rotor test system
Company Introduction
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture.
After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .
Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole 3
Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole 4
Digital Optical Rotary Pulse Encoder Single Bearing 25mm Hollow Shaft UVW 8 Pole 5



"HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
FAQ
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have
any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
