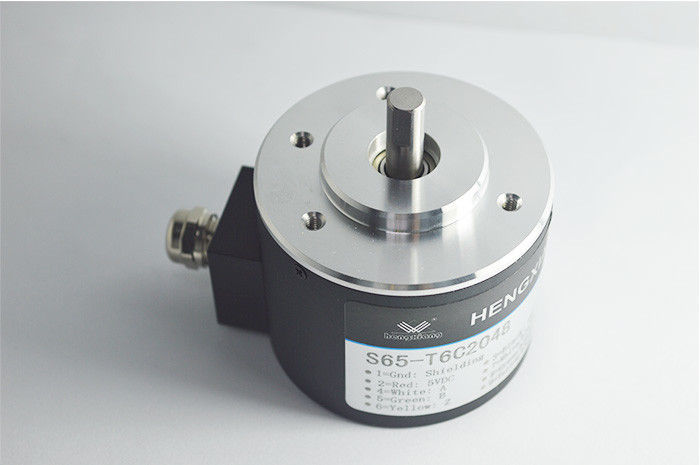

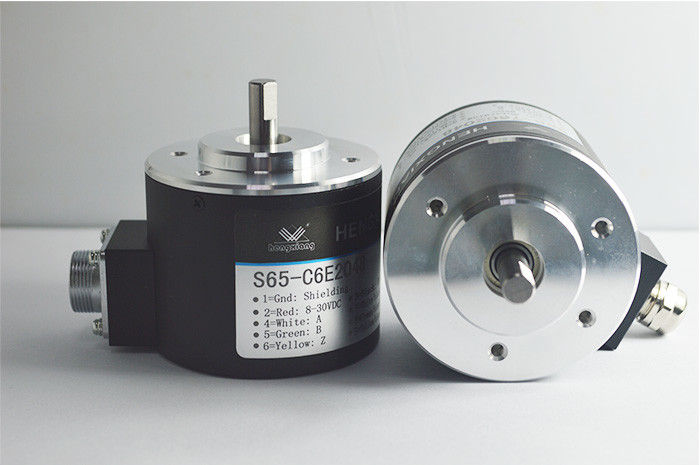

Conventional Incremental S65 Solid Shaft Encoder Shaft Diameter 8mm With Radial Cable

Conventional Incremental S65 Solid Shaft Encoder Shaft Diameter 8mm With Radial Cable

    • Conventional Incremental S65 Solid Shaft Encoder Shaft Diameter 8mm With Radial Cable
    • Conventional Incremental S65 Solid Shaft Encoder Shaft Diameter 8mm With Radial Cable
  • Conventional Incremental S65 Solid Shaft Encoder Shaft Diameter 8mm With Radial Cable

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: S65 solid shaft encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    External diameter: 65mm Thickness: 53mm
    Installation Dimension: Diameter 48mm Product Name: Solid Shaft Encoder
    Supply voltage: DC5V ; DC8~30V Resolution: 50ppr - 23040ppr
    Protection grade: IP50 ; IP65 Net weight : About 350g (with Package)

    Conventional incremental encoder S65 solid shaft encoder shaft diameter 8mm with radial cable



    Production Video

    There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

    At the same time, you could also visit our YOUTUBY page easily.

    Most of the encoder series have videos for reference.



    Key Features for S65 series encoder

    Items Basic parameters
    Brand HENGXIANG
    Encoder type Incremental encoder
    External diameter 65mm
    Thickness 53mm
    Installation dimension diameter 48mm
    Shaft length 16mm
    Solid Shaft diameter 8mm(D shape)
    Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
    1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
    3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
    Output phase Phase A+,B+,Z+ ,A- B- Z-
    Supply voltage DC5V ; DC8~30V
    Outlet type Radial cable
    Radial socket
    Output mode Collector open circuit output
    Voltage output
    Push-pull output
    Difference output Long line drive (26LS31)
    compatible RS422
    Long line drive (RT7272)
    Protection grade IP50 ; IP65
    Cable length 1M (cable length could be added appropriately by
    require, but it need payment individually)
    Consumption current 100mA MAX
    Top response frequency 300KHZ
    Allowable ripple ≤3%rms
    Load Voltage ≤DC30V
    Insulation strength AC500V 60s
    Insulation resistance 10MΩ



    Signal Circuit of encoder

    1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

    An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

    2. PNP output

    The PNP output is an interface based on an output circuit with a PNP transistor.

    3. Push-Pull output(HTL)

    High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

    “Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

    4. TTL RS-422 output

    In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

    The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.
