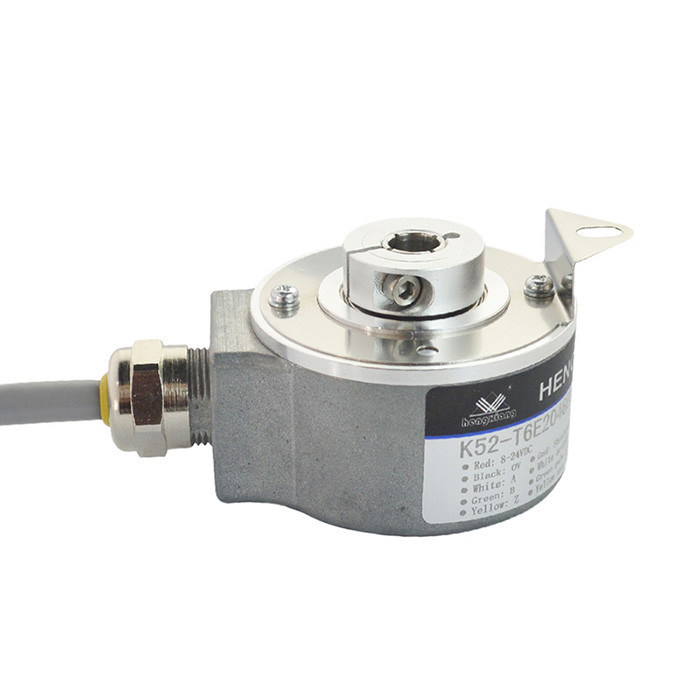

8192ppr 8 Poles Incremental Position Encoder K52 Hollow Shaft UVW Signal Line Driver Output

8192ppr 8 Poles Incremental Position Encoder K52 Hollow Shaft UVW Signal Line Driver Output

  • High Light

    incremental type encoder

    ,

    incremental position encoder

  • Brand
    HENGXIANG
  • Product Name
    High Speed Rotary Encoder
  • External diameter
    52mm
  • Hollow Shaft Diameter
    8mm,10mm,12mm;14mm;15mm
  • Output phase
    Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
  • Resolution
    1000PPR-23040PPR
  • Intertia Moment
    Less Than 6.5x 10-6kg.m2
  • Net weight
    About 310g (with Package)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K52 position encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

8192ppr 8 Poles Incremental Position Encoder K52 Hollow Shaft UVW Signal Line Driver Output

K52 position encoder 8192ppr 8 poles UVW signal line driver output hollow shaft incremental encoder



Some model number for K52 series

K52-T3F1000B15

K52-Q2N1200B14

K52-Q2F1024B10

K52-TE6E2048B8

K52-TE6C2500Q14

K52-T12C4096Q12

K52-T12E1200/4Q8

K52-Q3V1024Q6

K52-Q6E5000B14

K52-TE128192/6B15



Product Information

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 51mm
Thickness 39mm
Installation dimension R27.5mm(spring plate 50T55)
Hollow shaft type through hole or blind hole
Hollow shaft diameter 8mm,10mm,12mm;14mm;15mm
Resolution 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;
4096;5000;5760;8192;10000;11520;16384;20000;23040
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from back
Socket out from back
Cable out from back with socket
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Consumption current 100mA MAX



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



8192ppr 8 Poles Incremental Position Encoder K52 Hollow Shaft UVW Signal Line Driver Output 0



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.



Production Video

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders
