Waterproof Stainless Stain Through Shaft Encoder 5000ppr 8 Pole 12mm

Waterproof Stainless Stain Through Shaft Encoder 5000ppr 8 Pole 12mm

Products - Hollow Shaft Incremental Encoders
  • High Light

    Waterproof Through Shaft Encoder

    ,

    Hollow Shaft Through Shaft Encoder

    ,

    8 Pole Hollow Shaft Incremental Encoders

  • External diameter
    50mm
  • Encoder Type
    Through Shaft Incremental Encoder
  • Hollow Shaft Diameter
    10mm;12mm;14mm;15mm
  • Resolution
    1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
  • Output phase
    4=A+A-+B+B-; 6=A+A-+B+B-+Z+Z-; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
  • Outlet Type
    Radial Cable
  • Output Mode
    F=Push-pull; C=TTL(DC5V)；E=HTL(DC8-30V)
  • Protection
    IP67
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    PGK50
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Waterproof Stainless Stain Through Shaft Encoder 5000ppr 8 Pole 12mm

  • Waterproof Stainless Stain Through Shaft Encoder 5000ppr 8 Pole 12mm
  • Waterproof Stainless Stain Through Shaft Encoder 5000ppr 8 Pole 12mm
  • Waterproof Stainless Stain Through Shaft Encoder 5000ppr 8 Pole 12mm
Get Price Contact Now

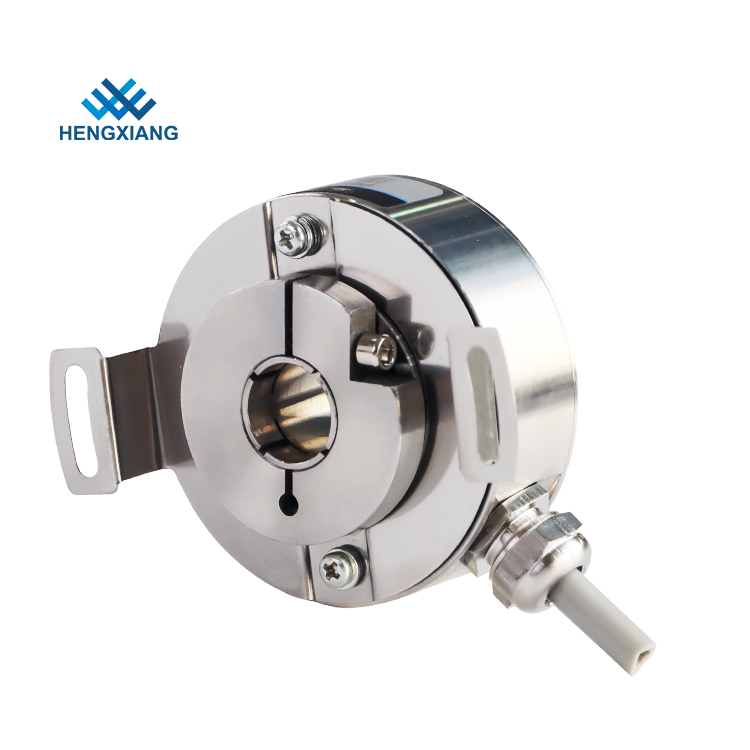

Water-proof encoder stainless stain 8 pole 12mm through shaft 5000ppr encoder


1. Feature: Hollow shaft incremental encoder.



2. Application: Motor, Textile industry, packaing machinery, production line and other automation                                                             control.



3. Important parameters: Material stainless steel, IP67 high protection class(dust-proof& water-proof),                                                    Extra-thin type.




Main Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental Type
External diameter
50mm
Thickness
27mm
Hollow shaft type
Through shaft
Hollow shaft diameter
10mm;12mm;14mm;15mm(optional)
Resolution
1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
Output phase
1=A+B; 2=A+B; 3=A+B+Z; 4=A+A-+B+B-; 6=A+A-+B+B-+Z+Z-; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage
DC5V; DC8-30V
Outlet type
Radial cable
Output mode
F=Push-pull; C=TTL(DC5V)
E=HTL(DC8-30V)
Consumption current
100mA Max; 120mA Max
Top response frenquency
100kHZ; 500kHZ; 600kHZ
GND
not connected to the encoder
Starting torque
Less than 9.8×10-3 N.m
Inertia moment
Less than 6.5×10-6 kg.m2
Environmental temperature
Operating: -40~+90℃(repeatable winding cable: -10℃); Storage: -45~+95℃
Enviromental humidity
Operating and storage: 50~85%RH(noncondensing)
Protection
IP67
Shell
Stainless steel
Certification
CE
package
Carton box
Net weight
About 150g
