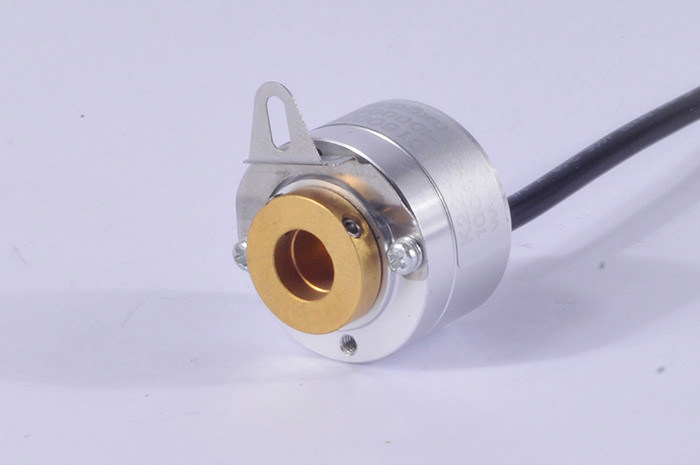

K22 Optical Quadrature Encoder Blind Hole 6mm , Photoelectric Rotary Encoder Axis Depth 10mm

K22 Optical Quadrature Encoder Blind Hole 6mm , Photoelectric Rotary Encoder Axis Depth 10mm

    • K22 Optical Quadrature Encoder Blind Hole 6mm , Photoelectric Rotary Encoder Axis Depth 10mm
    • K22 Optical Quadrature Encoder Blind Hole 6mm , Photoelectric Rotary Encoder Axis Depth 10mm
  • K22 Optical Quadrature Encoder Blind Hole 6mm , Photoelectric Rotary Encoder Axis Depth 10mm

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: K22 quadrature optical encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Encoder Type: Quadrature Encoder External diameter: 22mm
    Hollow Shaft Diameter: 4mm;5mm,6mm,6.5mm Top Response Frequency: 300KHZ
    Installation Dimension: R12mm, Spring Plate 22T24 Package: Carton Box
    Net weight : About 35g (with Package) Shell Material: Aluminum Alloy

    K22 quadrature optical encoder blind hole 6mm axis depth 10mm photoelectric rotary encoder



    Related K22 encoder model number

    K22-J 3 N 1024 B6.5 DC5V

    K22-J 3 N 1000 B4 DC12V

    K22-L 6 E 1440 B6 DC8-30V

    K22-L 6 C 1600 B5 DC5V

    K22-J 3 NH 360 B6.5 DC12V

    K22-L 3 NH 250 B6.5 DC24V

    K22-L 2 N 800 B5 DC8-30V

    K22-J 1 N 250 B6.5 DC5-30V



    Specification

    Items Basic parameters
    Brand HENGXIANG
    Encoder type Incremental encoder
    Supply voltage DC5V ; DC8-30V
    Outlet type Cable out from side
      Cable out from back
    Output mode Collector open circuit output(NPN &PNP)
      TTL(DC5V)
      HTL(DC8-30V)
    Protection grade IP50
    Cable length 500mm
    Consumption current 100mA MAX
    Top response frequency 300KHZ
    Rise/ Fall time 1usec Max( 1000mm cable)
    starting torque less than 5x 10-4 N.m
    Intertia moment less than 1x 10-6kg.m2
    Shaft load Radial 2N; Axial 2N
    Top REV 5000r rpm
    Environmental temperature Operating:-20 ~+80°;storage:-25 ~+85°
    Environmental humidity Operating and storage: 35-85%RH(noncondensing)
    Vibration(endure) Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
    Sock(endure) 49m/s2 ,three times for X,Y,Z direction individually
    Shell Material aluminum alloy
    Certification CE
    package Carton box



    K22 Optical Quadrature Encoder Blind Hole 6mm , Photoelectric Rotary Encoder Axis Depth 10mm

    Why choose us?

    HENGXIANG brand--The trustworthy partner
    CE approved--advantaged product quality;
    Fast delivery--strong stock product ability;

    Factory directly provide a competitive price;
    One-stop service--for your efficient purchasing experience;

    OEM design accepted--customized design, your own brand accepted.



    Payment terms:

    1. T/T, western union, credit card, Paypal, etc

    2. 3-5 working days after payment received

    3. Encoders will be shipped once ready



    Matters needing attention

    1. Must choose the power supply voltage: DC5V or DC8-30V

    2. Must choose leaf spring plate model number if you select hollow shaft encoder

    3. Please advise the motor speed (RPM) that you actually use

    4. If you have any other requirements, please provide detail parameters



    Notice for encoder installation

    1. Please read the encoder specification carefully before installation

    2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

    3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

    4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

    5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

    6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

    7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

    8. The encoder cable signal can’t be drew or bent forcibly.
