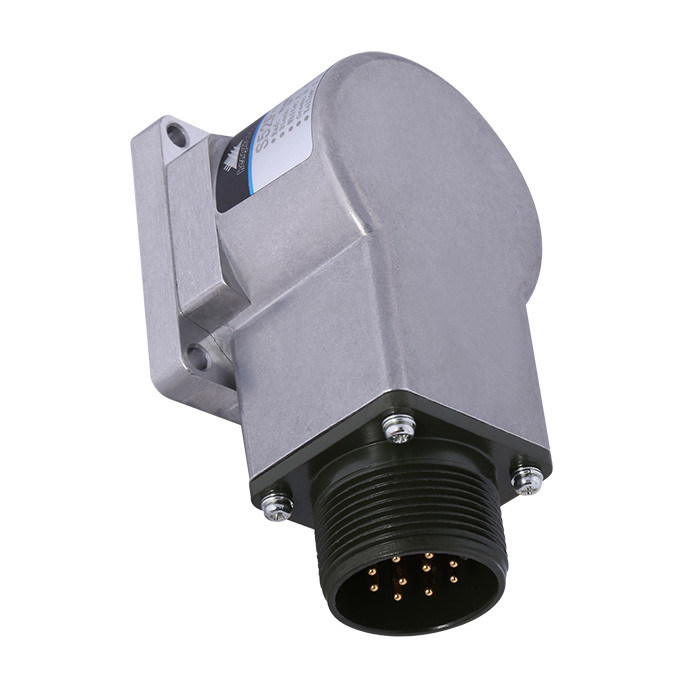

Flange S52F Photoelectric Incremental Encoder , 10mm Solid Shaft Encoder Differential Output
-
High Light
stepper motor rotary encoder
,2048 pulse encoder
-
BrandHENGXIANG
-
Product NameIncremental Encoder
-
Flange Dimension52mm X 52mm
-
Solid Shaft diameter8mm(D Shape)
-
Output phasePhase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
-
Insulation Resistance10MΩ
-
Starting TorqueLess Than 10m N.m
-
Shaft MaterialStainless Steel
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberS52F Flange encoder
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year
Flange S52F Photoelectric Incremental Encoder , 10mm Solid Shaft Encoder Differential Output
Flange encoder S52F photoelectric incremental encoder solid shaft 10mm differential output
Some of S52F Encoder part number to select
S52F-C6C1200
S52F-C1F1250
S52F-C2V1440
S52F-C3NH2000
S52F-C4E2048
S52F-C6E2500
S52F-C1V3600
S52F-C2F4096
S52F-C3N5000
S52F-C6C10000
Product introduction of S52F flange encoder
| Items | Basic parameters | |
| Brand | HENGXIANG | |
| Encoder type | Incremental encoder | |
| External diameter | 52mm | |
| Thickness | 44mm | |
| Flange dimension | 52mm x 52mm | |
| Installation dimension | 44mm x 44mm | |
| Shaft length | 16mm | |
| Solid Shaft diameter | 10mm(D shape) | |
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000 | |
| 1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000; | ||
| 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040 | ||
| Output phase | Phase A+,B+,Z+ , A- B- Z- | |
| Supply voltage | DC5V ; DC8-30V | |
| Outlet type | Cable out from side | |
| Cable out from back | ||
| Socket out from back | ||
| Output mode | NPN Collector open circuit output | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| Compatible RS422 | ||
| Long line drive (RT7272) | ||
| Protection grade | IP50 ; IP65 | |
| Cable length | 1M (cable length could be added appropriately by | |
| require, but it need payment individually) | ||
| Consumption current | 100mA MAX | |
Our Service
- Quick response once received customer’s quotation query
- Professional engineer team, to solve your problems at any time
- Strictly inspection before shipment
- Various encoder models to be selected
- Short lead time
- High quality standard
Connecting Coupling
There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type
1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.
2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.
3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.
4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.
5. Here are some coupling part number, please carefully check before ordering.
4H4
6H6
6H8
8H8
8H10
6M6
6M8
8M8
8M10
