S52F solid shaft encoder thickness 44mm slew speed 6000rpm heavy duty encoder with flange
Advantage of “HENGXIANG” encoder factory
S52F Series encoder model number for reference
S52F-C1N20000
S52F-C2V23040
S52F-C3FH200
S52F-C4E250
S52F-C6E256
S52F-C1V300
S52F-C2N360
S52F-C3PH1000
S52F-C4E1024

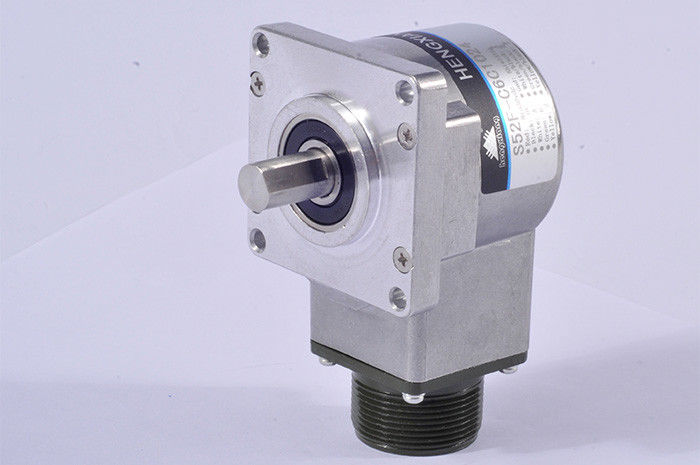

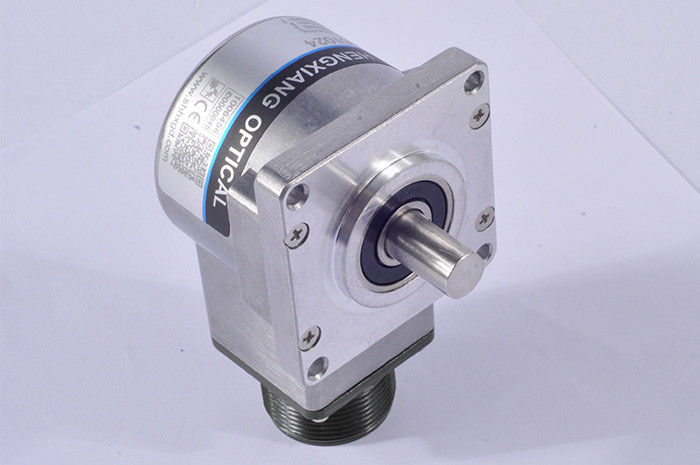

Product Description of S52F rotary encoder
Items | Basic parameters |
Brand | HENGXIANG |
Encoder type | Incremental encoder |
External diameter | 52mm |
Protection grade | IP50 ; IP65 |
Cable length | 1M (cable length could be added appropriately by |
require, but it need payment individually) | |
Consumption current | 100mA MAX |
Top response frequency | 300KHZ |
Allowable ripple | ≤3%rms |
Load Voltage | ≤DC30V |
Insulation strength | AC500V 60s |
Insulation resistance | 10MΩ |
GND | not connect to encoder |
Mark to Space ratio | 45% to 55% |
starting torque | less than 5 x 10-3 N.m |
Intertia moment | less than 3x 10-6kg.m2 |
Shaft load | Radial 60N; Axial 60N |
Top REV | 6000RPM ;IP65≤3000 RPM |
Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
Environmental temperature | Operating:-20 ~+85°;storage:-25 ~+90° |
Environmental humidity | Operating and storage: 35-85%RH(noncondensing) |
Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |
Shaft Material | Stainless steel |
Shell Material | die cast aluminum |
