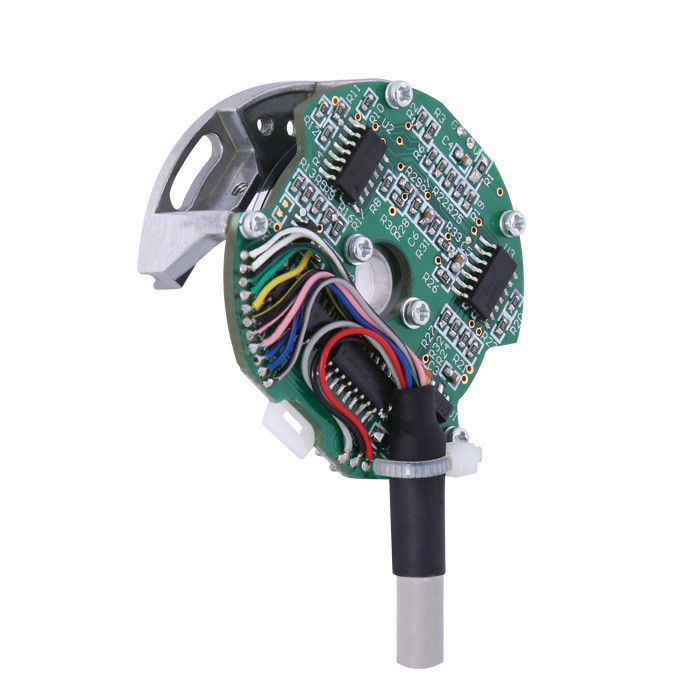

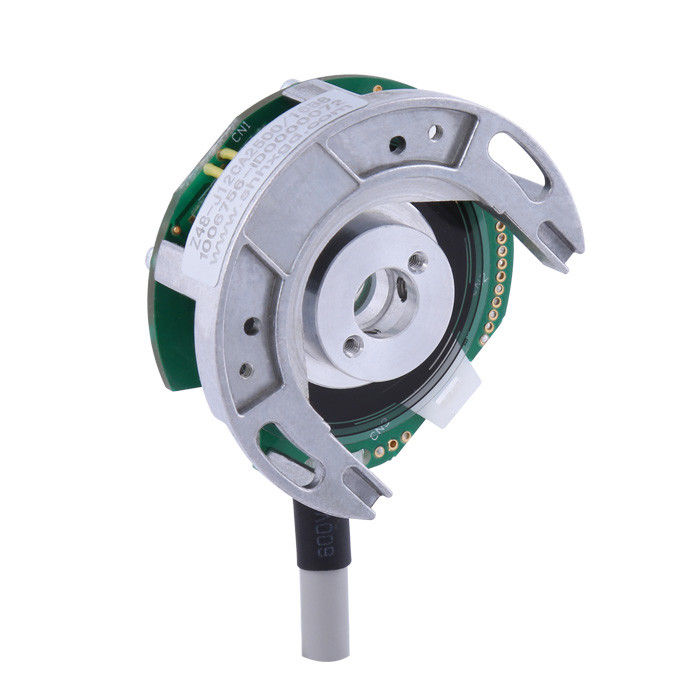

Incremental Type Rotary Encoder Module External Dimension 48mm 1024 Pules For Motor

Incremental Type Rotary Encoder Module External Dimension 48mm 1024 Pules For Motor

    • Incremental Type Rotary Encoder Module External Dimension 48mm 1024 Pules For Motor
    • Incremental Type Rotary Encoder Module External Dimension 48mm 1024 Pules For Motor
  • Incremental Type Rotary Encoder Module External Dimension 48mm 1024 Pules For Motor

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: Z48-J rotary encoder module

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card, Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    Brand: HENGXIANG Shaft Diameter: 8mm
    Resolution: 50ppr(Min) To 2500ppr(Max) Optional Supply Voltage: DC5V & DC8-30V
    Output Mode: Open Collector, Voltage Output, Push-pull, TTL,HTL Wire Length: 250mm (it Can Be Added As Requirement)
    Weight: About 60g (with Package) Thickness: 22.5mm

    Z48 rotary encoder module incremental type external dimension 48mm 1024 pules for motor hole  diameter 8mm



    Signal Circuit of encoder

    1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

    An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

    2. PNP output

    The PNP output is an interface based on an output circuit with a PNP transistor.

    3. Push-Pull output(HTL)

    High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

    “Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

    4. TTL RS-422 output

    In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

    The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.





    Model Number to choose for Z48 Series

    Z48-J1N50

    Z48-J2C60

    Z48-J3N100

    Z48-J4C200

    Z48-J6E256

    Z48-J12C1000/4

    Z48-J1N300

    Z48-J1N2048

    Z48-J2C2500

    Z48-J3N50



    Z48 Encoder Specification

    Items Basic parameters
    Brand HENGXIANG
    Encoder type bearingless encoder
    External diameter 48mm
    Thickness 22.5mm
    Dimension of limiting slot 30mm, depth 2.4mm
    Installation dimension R22.35mm
    Hollow shaft type through hole
    Hollow shaft diameter 8mm
    Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;1000;
    1024;1200;2000;2048;2500;
    1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;
    Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
    Supply voltage DC5V ; DC8-30V
    Outlet type Cable out from side
    Output mode NPN/(Open Collector Output)
    line drive (26LS31) TTL
    line drive(DC8-30V) HTL
    Cable length 500mm
    Consumption current 100mA MAX
    Top response frequency 300KHZ
    Allowable ripple ≤3%rms
    Load Voltage ≤DC30V
    Insulation strength AC500V 60s
    Insulation resistance 10MΩ
    GND not connect to encoder



    Incremental Type Rotary Encoder Module External Dimension 48mm 1024 Pules For Motor
