1024 Ppr 8mm Solid Shaft Encoder DC5V-30V S50 Ttl Circuit Output ABZ Phase

1024 Ppr 8mm Solid Shaft Encoder DC5V-30V S50 Ttl Circuit Output ABZ Phase

  • High Light

    shaft mounted encoder

    ,

    digital shaft encoder

  • Brand
    HENGXIANG
  • Model
    8mm Shaft Encoder
  • External diameter
    50mm
  • Thickness
    30mm
  • Phase
    ABZ
  • Voltage
    DC5V-30V
  • Resolution
    23040 Pulse Per Round
  • IP
    IP65;IP50
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    8mm shaft encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

1024 Ppr 8mm Solid Shaft Encoder DC5V-30V S50 Ttl Circuit Output ABZ Phase

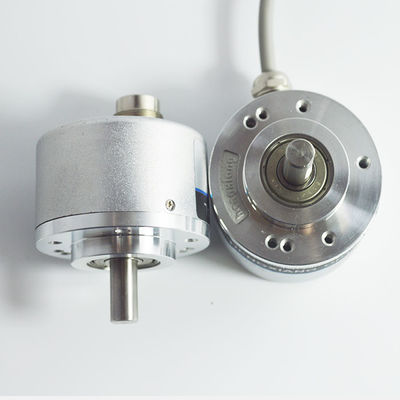

8mm shaft encoder, 1024ppr, ttl circuit output solid shaft encoder S50



1. About Our Factory

1. Own brand of "HENGXIANG" encoder,

2. Has ISO9001:2000 Quality Management System Certificate and CE Certification

3. Invention patents five and utility model patents five

4. Passed Shanghai New and High-tech Achievements Transformation Project.

5. Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.





2. Our advantage

High quality standard

Quick Response time

Utility Model Patent Certificate

Own brand and unique brand

CE certification for all models

Prompt delivery date



3. Detail Specifications

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Shaft length 16mm
Solid Shaft diameter 8mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
  8192;10000;11520;16384;20000;23040
Output mode NPN&PNP
  Voltage output
  Push-pull output
  Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)





 4. Applications

S50 rotary encoders can widely worked on following machines or devices, if you have the same application, or if you have any other usages, you are free to let us know.

Packing machinery

Capsule filling machine

Pharmaceutical machine

VVVF motor

DC motor

Stepper motor

Servo motion controller

Gearbox

DC garage door motor

DC servo motor

Stock driver

PMDC geared motor

Brushless dc motor
Servo motor

Drawing machine



 5. Dimension

1024 Ppr 8mm Solid Shaft Encoder DC5V-30V S50 Ttl Circuit Output ABZ Phase 0

1024 Ppr 8mm Solid Shaft Encoder DC5V-30V S50 Ttl Circuit Output ABZ Phase 1



6. Payment terms

1. T/T, western union, credit card, Paypal,etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready







8. Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



9. FAQ

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

The production date is according to order quantity.

Q: What is the highest resolution of your encoder products?

A: The highest resolution is 80000ppr, you can email us for more information.

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,
