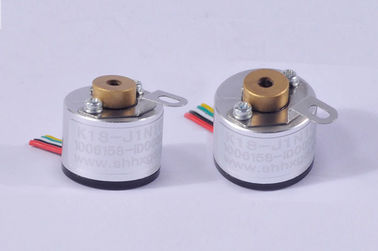

IP40 K18 Simple Rotary Encoder Outer Dia 18mm Straight Bore Hole 2.5mm NPN Signal

IP40 K18 Simple Rotary Encoder Outer Dia 18mm Straight Bore Hole 2.5mm NPN Signal

  • High Light

    small rotary encoder

    ,

    miniature optical encoder

  • Encoder Type
    K18 Optical Rotary Sensor Encoder
  • External diameter
    18mm
  • Thickness
    15.3mm
  • Shaft Dia
    2.5mm Straight Hole
  • Shaft Material
    Stainless Steel
  • Installation Size
    22mm Diameter
  • Shaft Load
    Radial 2N; Axial 2N
  • Protection Level
    IP40
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K18 minature encoder
  • Minimum Order Quantity
    1pcs encoder
  • Price
    negotiable
  • Packaging Details
    each 1 piece/ packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

IP40 K18 Simple Rotary Encoder Outer Dia 18mm Straight Bore Hole 2.5mm NPN Signal

K18 optical rotary sensor encoder outer dia 18mm straight bore hole 2.5mm NPN signal





Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.





Feather of K18  minature rotary encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 18mm
Thickness 15.3mm
Installation dimension R11mm, spring plate 18T22
Hollow shaft diameter 2.5mm
Resolution 250;256;360;400;500;512;720;800;1000;1024;1440;1600
Output phase Phase A,B,Z
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode Collector open circuit output(NPN &PNP)
Protection grade IP50
Shaft Material Stainless steel
Shell Material aluminum alloy
Cable length 150mm
Certification CE
package Carton box
Net weight About 20g (with package)





FAQ

1) How to select an encoder

Before ordering encoders, you could clearly know which type of encoder you may need.

There are incremental encoder and absoltue encoder, after this, our sale-service department would better work for you.



2) What specifications are requeted before order an encoder?

---Encoder type

---External Diameter

---Shaft Diameter

---Phase & Resolution

---Circuit Output Mode

---Power Supply Voltage



3) How to choose a right encoder by yourself ?

Exact Specification Description

Check The Installation Dimensions

Contact Supplier to get more details



4) How many pieces to start ?

1PCS only



5) How long is your lead time?

Short lead time----3 days for samples,7-10days for mass production



6) what is your guarantee policy?

1year warranty and life-long technical support

IP40 K18 Simple Rotary Encoder Outer Dia 18mm Straight Bore Hole 2.5mm NPN Signal 0
