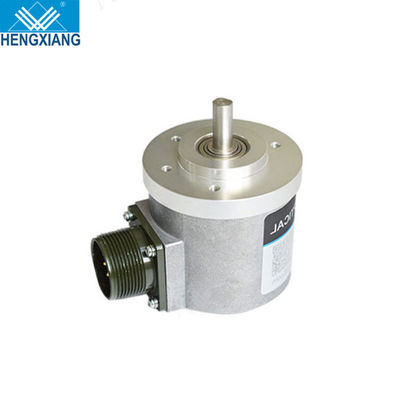

Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell

Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell

Products - Solid Shaft Encoder
  • High Light

    Optical Rotary Incremental Encoders 65mm

    ,

    Aluminum Alloy Shell Optical Rotary Encoders

    ,

    Solid Shaft Optical Incremental Encoders

  • External diameter
    25mm
  • Solid Shaft diameter
    4mm(D Shape)
  • Resolution
    50-2500 Ppr
  • Output phase
    Phase A,B,Z,A-,B-,Z-
  • Outlettype
    Cable Out From Side;Cable Out From Back
  • Output mode
    NPN&PNP;Voltage;Push-pull;TTL,HTL,RS422
  • Protection grade
    IP50
  • Net weight
    60g (with Package)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S25C
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell

  • Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell
  • Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell
  • Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell
  • Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell
Get Price Contact Now

Motor 65mm certification optical rotary incremental encoders aluminum alloy shell





Feature: IP65 Sturdy and durable, various circuit mode and cable connection avalible, easy to install.



Application: Auotomation control like motor, CNC, textile machine, industry asembly line.



Important parameters: IP65, IP50 high protection, resolution up to 23040ppr, UVW signal pole encoder, differential output, push-pull, open collect circuit.



Product Description:

Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 0

Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 1
Items
Basic parameters
External dimensions
External diameter: 25mm
Thickness: 32mm
Solid shaft diameter: 4mm(D shape)
Encoder type
Incremental encoder
Resolution
36;50;60;100;200;250;300;360;400;500;512;600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase
Phase A,B,Z,A-,B-,Z-
Supply voltage
DC5V; DC8-30V
Outlettype
Cable out from side
Cable out from back
Output mode
NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL)
Environmental temperature
Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity
Operating and storage: 35~85%RH (non-condensing)
Protection grade
IP50
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current
100mA Max
Allowable ripple
≤3%rms
Shaft Load
Radial: 10N; Axial:5N
GND
not connect to encoder
Slew Speed
≤5000rpm
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
Mark to Space ratio
45% to 55%
Top Resonse Frequency
100kHz(OC);200KHz(TTL);300KHzHTL)
Shell Material
Alumlnlum alloy
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft Material
Stainless steel
Vibration(endure)
Amplitude 0.75mm,10-55Hz,2 hours for X/Y/Z direction individually
Shock(endure)
49/m/s2,11ms three times for X,Y,Z direction individually
package
Carton box
Net weight
About 60g
Certification
CE
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 2
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 3
Product Usage
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 4
Packing&Shipping
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 5
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 6
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 7
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 8
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 9
Company Introduction
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a
professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and
electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary
encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for
automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile
machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing
machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 10
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 11
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 12

Our Services & Strength

"HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project.
Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome
all customers to visit our company, to review and custom "HengXiang" brand products .
Our Certifications
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 13
World-Wide Customers & Feedback
Motor 65mm Certification Optical Rotary Incremental Encoders Aluminum Alloy Shell 14
Why choose "HENGXIANG" encpder?1.HENGXIANG brand--The trustworthy partner
2.CE approved--advantaged product quality;
3.Fast delivery--strong stock product ability;
4.Factory directly provide a competitive price;
5.One-stop service--for your efficient purchasing experience;
6.OEM design ccepted--customized design, your own brand accepted.
