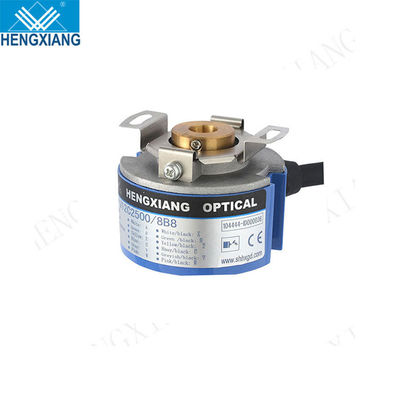

8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor

8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor

Products - Through Hole Encoder
  • High Light

    UVW Through Hole Encoder

    ,

    8 Wire Hollow Shaft Incremental Encoder

    ,

    Servo Motor Hollow Shaft Incremental Encoder

  • Encoder Type
    Incremental Encoder
  • External diameter
    48mm
  • Installation Dimension
    40mm(spring Plate 48T40)
  • Hollow Shaft Type
    Hollow Shaft; Through Hole
  • Hollow Shaft Diameter
    6mm;8mm;10mm;12mm
  • Resolution
    50-10000；1000-10000/4/6/8 Ppr
  • Output phase
    Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
  • Outlettype
    Radial Cable
  • Output mode
    NPN/PNP/Voltage Output /Push-pull Output / Line Drive (26LS31) TTL/ Line Drive(DC8-30V) HTL/TTL(DC5V) Phase ABZ Are Back Of Phase UVW
  • Protection grade
    IP40
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K48
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor

  • 8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor
  • 8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor
  • 8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor
  • 8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor
Get Price Contact Now

8 wire saving TTL UVW hollow shaft incremetnal encoder sanyo denki servo motor





1. Feature: Pole encoder, incremental type.

                     (We could also replace other model of TS series for you.)



2. Application: Servo motor, textile industry and other industrial automations.



3. Important parameters: UVW signal, through shaft 6mm; 8mm; 10mm; 12mm,  various output

                                                (Line driver; Push-pull; Voltage; OC)



Product Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
48mm
Thickness
34mm
Installation dimension
40mm(spring plate 48T40)
Hollow shaft type
through straight hole
Hollow shaft diameter
6mm;8mm;9mm;9.52mm;10mm
Resolution
50;60;100;200;250;256;300;360;400;450;500;512;600;1000; 1024;1200;2000;2048;2500; 4096;5000;8192
1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4； 2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；
2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8;8192/4; 8192/6;8192/8
Output phase
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage
DC5V ; DC8--30V
Outlettype
Cable out from side
Output mode
NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade
IP40
Cable length
500mm
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
GND
not connect to encoder
Mark to Space ratio
45% to 55%
starting torque
less than 9.8x 10-3 N.m
Intertia moment
less than 6.5x 10-6kg.m2
Shaft load
Radial 50N; Axial 30N
Top REV
5000RPM
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+80°；storage:-25 ～+90°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
490m/s2 ,11 ms three times for X,Y,Z direction individually
Material
Dia cast aluminium
Certification
CE
package
Carton box
Net weight
About 140g (with package)
8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor 0
8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor 1



Model Selection Guide
8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor 2



Manufacturing Dimensions
8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor 3


Product packaging
8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor 4
8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor 5
8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor 6
8 Wire Saving TTL UVW Hollow Shaft Incremental Encoder Sanyo Denki Servo Motor 7
Product Usage
