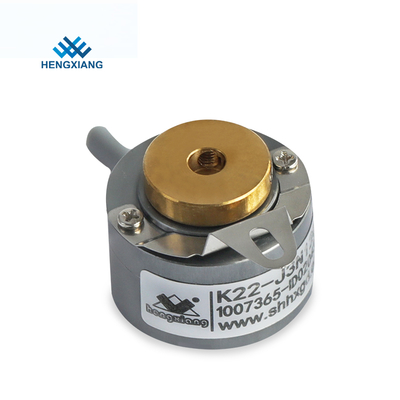

18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary

18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary

Products - Through Hole Encoder
  • High Light

    18mm Mini Incremental Encoder

    ,

    Output Type Through Hole Encoder

    ,

    8mm Shaft Rotary Incremental Encoder

  • Application
    Subminiature Motor, Small Instrument
  • Outlet Type
    Radial Cable/Axial Cable
  • Phase
    A/AB/ABZ
  • Output Mode
    N(OC, Low Level Effective)/NH(OC, High Level Effective)
  • Resolution
    250ppr;256ppr;360ppr;400ppr;500ppr;512ppr;720ppr;800ppr;1000ppr;1024ppr;1440ppr;1600ppr
  • Protection Grade
    IP50
  • Supply Voltage
    DC5V; DC8-30V
  • Shaft Diameter
    2.5mm(through Hole; Blind Hole)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K18
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary

  • 18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary
  • 18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary
  • 18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary
  • 18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary
Get Price Contact Now

18mm output type NPN 360ppr 8mm shaft rotary Low cost



1. Feature: Mini incremental encoder, hollow shaft, easy to install



2. Application: Subminiature motor, small instrument for automation control.



3. Important parameters: 18mm external dia, thickness 15.3mm, hollow/blind shaft 2.5mm, resolution max 1600 ppr, supply voltage DC5V; DC8-30V, protection grade IP50, cable length 150mm





Product Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
18mm
Thickness
15.3mm
Installation dimension
R11mm, spring plate 18T22
Hollow shaft diameter
2.5mm
Resolution
250;256;360;400;500;512；720；800；1000;1024；1440;1600
Output phase
Phase A,B,Z
Supply voltage
DC5V ; DC8-30V
Outlettype
Cable out from side
Cable out from back
Output mode
Collector open circuit output(NPN &PNP)
Protection grade
IP50
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current
50mA MAX
Top response frenquency
100KHZ
Rise/ Fall time
100nsec Max
starting torque
less than 5x 10-4 N.m
Intertia moment
less than 0.3x 10-6kg.m2
Shaft load
Radial 2N; Axial 2N
Top REV
3000r rpm
Environmental temperature
Operating:-10 ～+70°；storage:-15 ～+75°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
Sock(endure)
49m/s2 ,three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
aluminium alloy
Cable length
150mm
Certification
CE
package
Carton box
Net weight
About 20g (with package)
