Universal Incremental Quadrature Encoder , Optical Motor Shaft Encoders K38 Hollow Shaft

Universal Incremental Quadrature Encoder , Optical Motor Shaft Encoders K38 Hollow Shaft

  • High Light

    incremental quadrature encoder

    ,

    stainless steel encoder

  • Encoder Type
    Hollow Shaft Incremental Encoder
  • External diameter
    38mm
  • Thickness
    28mm
  • Pulse
    50ppr - 16384ppr
  • Output phase
    Phase A,B,Z A- B- Z-
  • Shaft Load
    Radiel: 40N; Axial:20N
  • Protection grade
    IP50 ; IP65
  • Cable length
    1000mm
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K38 Series incremental encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Universal Incremental Quadrature Encoder , Optical Motor Shaft Encoders K38 Hollow Shaft

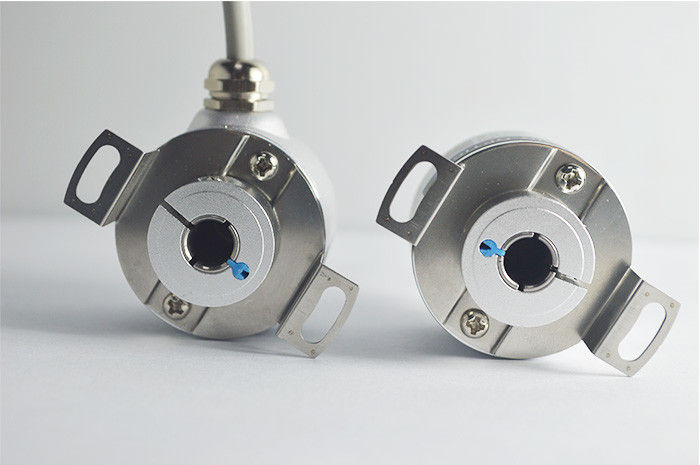

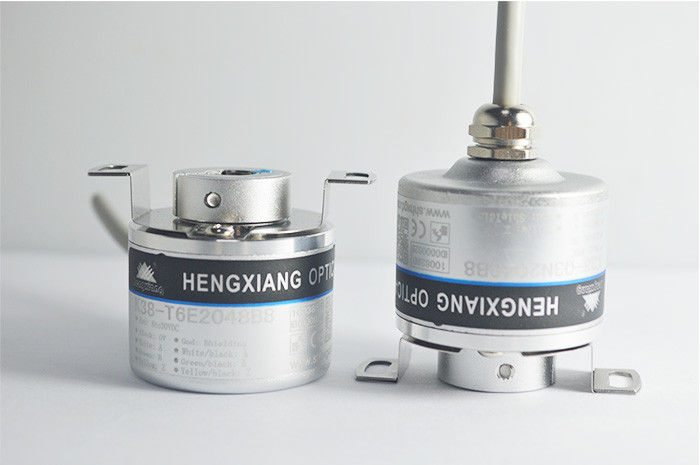

Universal rotary encoder K38 hollow shaft encoder through hole 6.35mm totem pole output



Selling points of K38 Series

Max resolution16384ppr

External diameter 38mm

Thickness 28mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Sensing basic : photoelectric

Pulse per turn:50ppr to 16384ppr

Hollow shaft diameter 6mm,6.35mm, 8mm

Through hole or blind hole shaft

Protection level grade IP50 or IP65

Circuit signal output: NPN, PNP, Voltage output, Push-pull, Line driver output

Resolution(PPR):Min 50ppr, Max 16384ppr



K38 Series encoder Information

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 38mm
Thickness 38mm
Installation dimension R23.5mm(spring plate 38T45)
Hollow shaft type blind hole ; through hole
Hollow shaft diameter 5mm,6mm,6.35mm;8mm
Output phase Phase A,B,Z A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
  Cable out from back
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  Long line drive (26LS31)
  Compatible RS422
  Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Shell Die cast aluminum
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
  700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384





Regarding connecting Coupling

There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type

1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.

2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.

3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.

4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.

5. Here are some coupling part number, please carefully check before ordering.

4H4

6H6

6H8

8H8



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Universal Incremental Quadrature Encoder , Optical Motor Shaft Encoders K38 Hollow Shaft 0



Lead time

3-5 working days for sample after full paid

7-15 days for mass production after full paid
