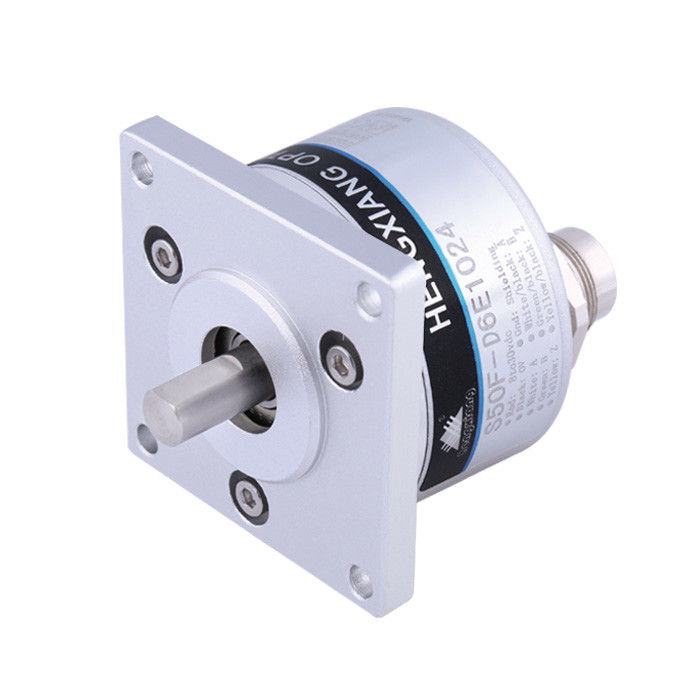

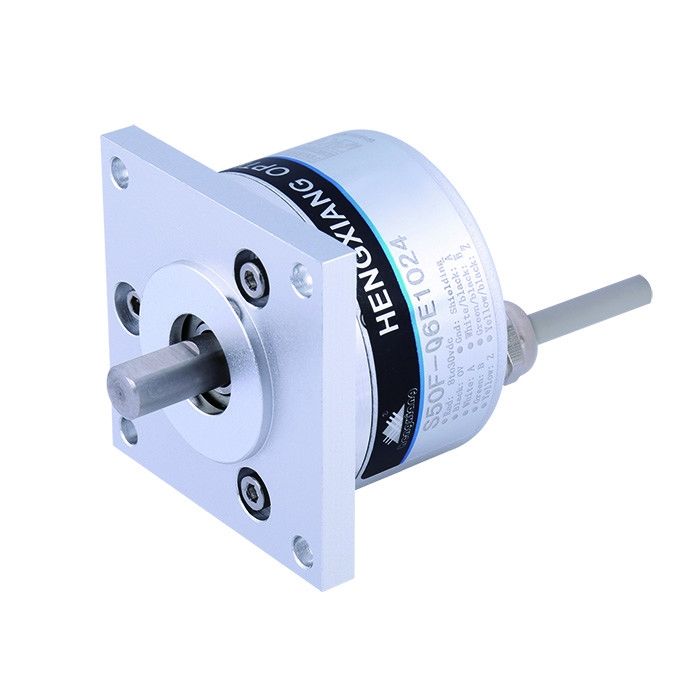

Photoelectric Incremental Flange Encoder , 2048 Pulse Encoder S50F With Axial Cable

Photoelectric Incremental Flange Encoder , 2048 Pulse Encoder S50F With Axial Cable

  • High Light

    stepper motor rotary encoder

    ,

    2048 pulse encoder

  • Encoder Type
    S50Fquadrature Rotary Encoder
  • External diameter
    50mm
  • Shaft Material
    Stainless Steel
  • Flange Dimension
    52mm X 52mm
  • Intertia Moment
    Less Than 3x 10-6kg.m2
  • Supply voltage
    DC5V ; DC8-30V
  • Shaft Load
    Radial 40N; Axial 20N
  • Cable Length
    1000mm(cable With Shielding)
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S50F 1024 ppr incremental encoder
  • Minimum Order Quantity
    can be 1pcs encoder first to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Photoelectric Incremental Flange Encoder , 2048 Pulse Encoder S50F With Axial Cable

Photoelectric incremental encoder 2048 pulse S50F quadrature rotary encoder with axial cable



Quick review of S50F encoder

Installation dimension: 43mm x 43mm

Shaft length: 13.3mm

Solid Shaft diameter:8mm(D shape)

Encoder type:Incremental encoder

Brand:HENGXIANG

Consumption current:100mA MAX

Mark to Space ratio:45% to 55%

Top REV:5000RPM ;IP65≤3000 RPM

Shell Material:die cast aluminum



S50F rotary encoder Product introduction

Items Basic parameters
Brand HENGXIANG
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
  1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A,B,Z or A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
  Cable out from back
  Socket out from back
Output mode NPN&PNP
  Voltage output
  Push-pull output
  Difference output(TTL,HTL,RS422)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5 x 10-3 N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 40N; Axial 20N
Top REV 5000RPM ;IP65≤3000 RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)



Some model number of S50F Series encoder

S50F-T6C4096

S50F-Q4E3600

S50F-D3N3000

S50F-T3F2880

S50F-Q2V2500

S50F-D1F2048

S50F-T6E2000

S50F-Q3P360

S50F-D2F300



Photoelectric Incremental Flange Encoder , 2048 Pulse Encoder S50F With Axial Cable 0



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers

ENCODER TECHNOLOGY THEORY

An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.



Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.

Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.



With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
