Photoelectric 28mm Line Driver 7272 Optical Rotary Encoders

Photoelectric 28mm Line Driver 7272 Optical Rotary Encoders

  • High Light

    Driver 7272 Optical Rotary Encoders

    ,

    28mm Optical Rotary Encoders

    ,

    28mm high resolution encoder

  • Name
    S38 High Resolution Encoder
  • External diameter
    38mm
  • Thickness
    28mm
  • Shaft Length
    13mm
  • Solid Shaft diameter
    6mm(D Shape)
  • Output phase Phase
    A,B,Z,A-,B-,Z-
  • Protection grade
    IP50 & IP65
  • Cable length
    1000MM
  • Max Resolution
    16384ppr
  • Place of Origin
    Shanghai
  • Brand Name
    HENGXIANG OPTICAL ENCODER
  • Certification
    CE,ISO9001
  • Model Number
    S38 Encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Photoelectric 28mm Line Driver 7272 Optical Rotary Encoders

Optical rotary encoders S38 shaft encoder thickness 28mm line driver7272 output



1. Our Advantage

Over 18 years encoder production experience

More than 20 years experienced engineers

Professional working team

High quality standard



2. Quick instructions

Shaft length 13mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Sensing basic : photoelectric

Pulse per turn: 50ppr to 16384ppr

Solid shaft 6mm with D shape

Protection level grade IP50 or IP65



3. Specifications



ITEM PARAMTERS
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 38mm
Thickness 28mm
Shaft length 13mm
Solid Shaft diameter 6mm(D shape)
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;
600;700;720;800;900;1000;1024;1200;2000;2048;
2500;5000;8192;10000;16384
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Output phase Phase A,B,Z,A-,B-,Z-
Shaft Material Stainless steel
Shell Material Dia cast aluminium
Cable length 1000mm(cable with shielding)
Certification CE



Details

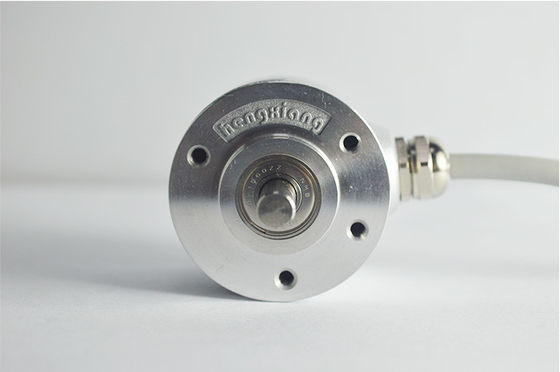

Photoelectric 28mm Line Driver 7272 Optical Rotary Encoders 0

Dimension

Photoelectric 28mm Line Driver 7272 Optical Rotary Encoders 1

4. Applications

S38 series encoder can be used on all kinds of applications, when you need a controller to measure speed or length, then a encoder could be worked on your device, no matter what size you need, and what precision it requested, the encoder could always be a proper tool for you.



5. FAQ

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.



6. Some Related S38 encoder model number

S38-T6E600 DC12V

S38-T6E720 DC8-30V

S38-T4E720 DC8V

S38-T6E1024 DC30V

S38-T6E2500 DC24V

S38-T6E5000 DC8-30V

S38-T6E10000 DC10V

S38-T4E1200 DC12V

S38-T6C720 DC5V

S38-T6C1024 DC5V

S38-T3N1024 DC5-30V

S38-T6E512 DC12V



7. Shipment

There are two method of shipment right now,

One is our factory check freight cost from FedEx, UPS, DHL,TNT, etc, for you to get the cheapest quotation and shipping date.

The other is you offer your own courier account when ordering, so we can use your express account to arrange the shipment.
