2500 / 8 Ppr Incremental Rotary Encoder Single Bearing Extra Thin Through Hole
-
High Light
2500/8 Ppr Incremental Rotary Encoder
,Single Bearing Incremental Rotary Encoder
,Through Hole Incremental Optical Encoder
-
Encoder TypeIncremental Encoder
-
External Diameter58mm
-
Thickness14mm
-
Hollow Shaft TypeThrough Hole
-
Hollow Shaft Diameter14mm;15mm;19mm;24mm;
-
Supply VoltageDC5V ; DC8--30V
-
Outlet TypeRadial Cable
-
Net WeightAbout 100g (with Package)
-
Place of OriginShanghai, China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberPC58
-
Minimum Order Quantity1Pcs
-
PriceConsult us
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability100K pieces per year
2500 / 8 Ppr Incremental Rotary Encoder Single Bearing Extra Thin Through Hole

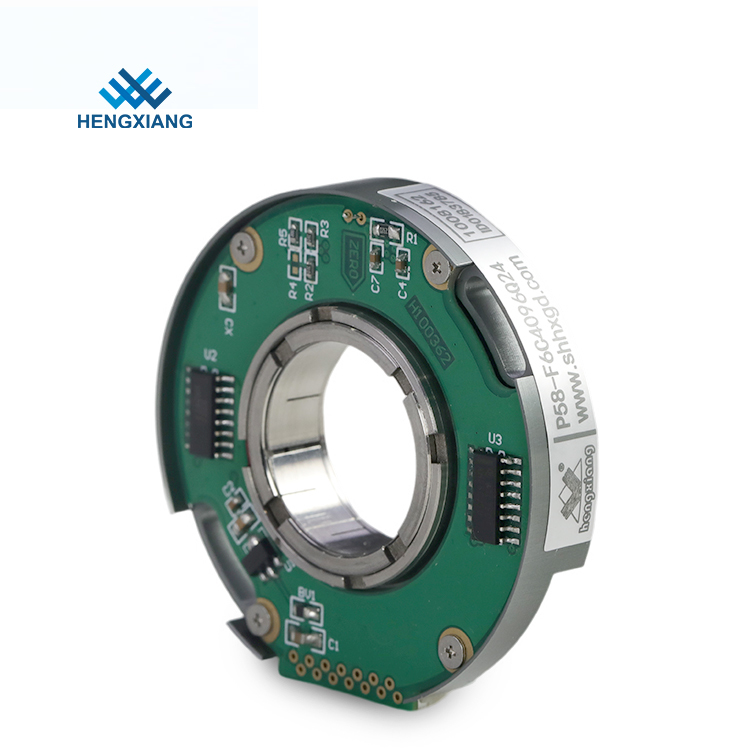

Single bearing extra-thin through hole 2500/8 ppr incremental rotary encoder
1. Feature: Through shaft incremental encoder.
2. Application: Motor, CNC and other industrial automations.
3. Important parameters: IP67 stainless steel water-proof& dust-proof, UVW signal encoder, Ultra-thin, pole encoder.
Basic parameters
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 58mm |
| Thickness | 14mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 14mm;15mm;19mm;24mm; |
| Resolution | 2500/6;2500/8;2500/16;5000/6;5000/8;5000/16;10000/6;10000/8;10000/16 |
| Output phase | 6=A+A-+B+B-+Z+Z-, 6=wire-saving type A+B+Z Lag+U+V+W, 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W- |
| Supply voltage | DC5V ; DC8--30V |
| Outlet type | Radial cable |
| Output mode | Line Driver TTL(DC5V) Less wiring type |
| Line Driver TTL(DC5V); Line Driver HTL(DC8-30V) | |
| Consumption current | 100mA MAX |
| Top response frenquency | 500KHz; 800KHz |
| GND | not connect to encoder, must be effectively connected to GND |
| Starting torque | less than 9.8 x 10-3 N.m |
| Inertia moment | less than 6.5×10-6kg.m2 |
| Environmental temperature | Operating:-20 ～+95℃；storage:-25 ～+100℃ |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Protection | IP50 |
| Material | aluminium alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 100g (with package) |
