58mm Optical Rotary Encoders

58mm Optical Rotary Encoders

  • High Light

    58mm Optical Rotary Encoders

    ,

    58mm digital optical encoder

    ,

    300KHZ Optical Rotary Encoders

  • Name
    S58 Optical Rotary Encoders
  • External diameter
    58mm
  • Output phase
    Phase A+,B+,Z+ , A- B- Z-
  • Consumption Current
    100mA Max
  • Top Response Frequency
    300KHZ
  • Allowable Ripple
    ≤3%rms
  • Load Voltage
    ≤DC30V
  • Insulation Strength
    AC500V 60s
  • Insulation Resistance
    10MΩ
  • Shaft Material
    Stainless Steel
  • Place of Origin
    Shanghai
  • Brand Name
    HENGXIANG OPTICAL ENCODER
  • Certification
    CE,ISO9001
  • Model Number
    S58
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

58mm Optical Rotary Encoders

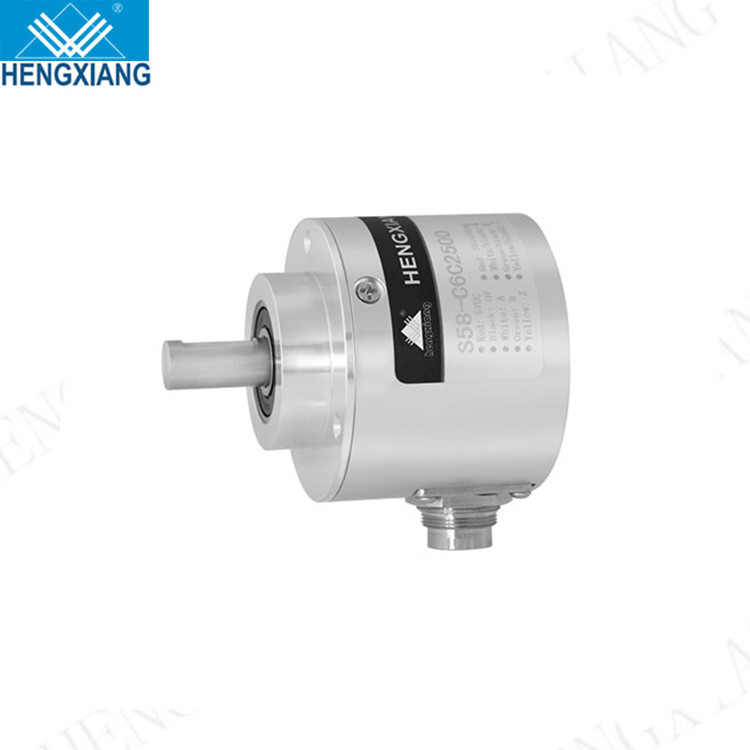

S58 optical rotary encoder outer dimension 58mm axis diameter 10mm socket out from back



Production date



1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Payment terms

1. T/T, western union, credit card, PayPal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Encoder Catalogue

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.



Technical Theory

Every 90 el° the incremental encoder outputs a rising or falling edge on the “A” or “B” output that can be interpreted as a count. If an encoder outputs 1000 PPR, a counter can interpret 4000 counts (4 counts each pulse).

The phase angle states the length between 2 edges, given in el°. This parameter is typically specified with a defined constant phase angle value and phase angle error (also called quadrature error).

The DNL accuracy is the phase angle error as an absolute value given in (mechanical) degrees.

An incremental encoder outputs a defined amount of pulses per revolution, so that every pulse is expected to be on a defined mechanical position. The maximum deviation between this ideal position and the actual position is called integral non linearity (INL). The INL accuracy is an important value if the incremental encoder is used for positioning tasks.



Encoder Product Basis information

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 58mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
  700;720;800;900;1000;1024;1200;2000;2048;2500;5000
  8192;10000;11520;16384;20000;23040
Output phase Phase A+,B+,Z+ , A- B- Z-
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Shaft Material Stainless steel
Shell Material die cast aluminum
Cable length 1000mm(cable with shielding)
Certification CE




58mm Optical Rotary Encoders 0



Dimension

58mm Optical Rotary Encoders 1

FAQ

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?

A: HENGXIANG

Q: Do you test your encoder product before shipment?

A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device

Q: What is the highest resolution of your encoder products?

A: The highest resolution is 80000ppr, you can email us for more information.
