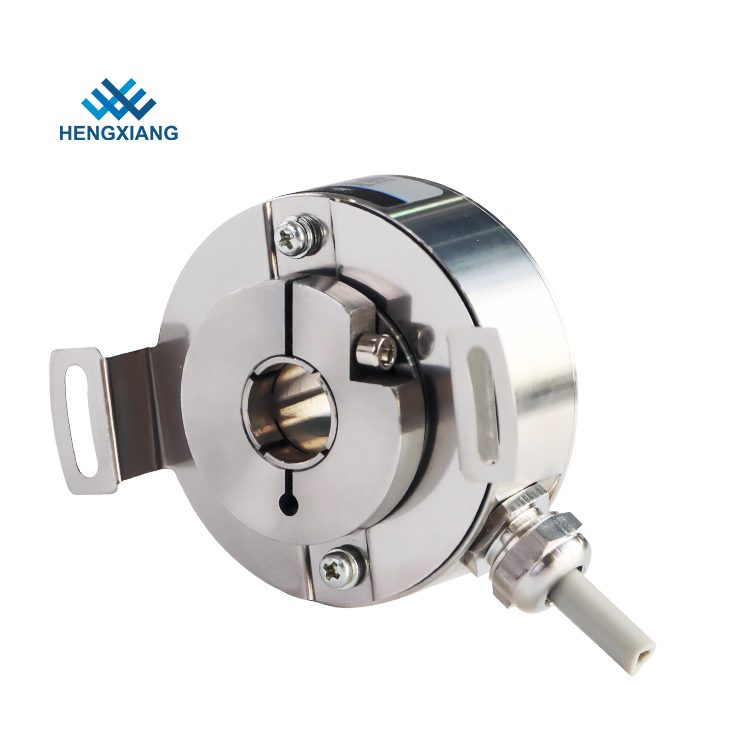

PGK50  hollow shaft Stainless Steel Ip67 Through Hole Encoder

PGK50 hollow shaft Stainless Steel Ip67 Through Hole Encoder

  • High Light

    Stainless steel through hole encoder

    ,

    ip67 through hole encoder

    ,

    ip67 stainless steel encoder

  • Encoder Type
    Incremental Type
  • External Diameter
    50mm
  • Thickness
    27mm
  • Hollow Shaft Diameter
    10mm;12mm;14mm;15mm(optional)
  • Resolution
    1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
  • Supply Voltage
    DC5V; DC8-30V
  • Consumption Current
    100mA Max; 120mA Max
  • Top Response Frenquency
    100kHZ; 500kHZ; 600kHZ
  • GND
    Not Connected To The Encoder
  • Protection
    IP67
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    PGK50
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

PGK50 hollow shaft Stainless Steel Ip67 Through Hole Encoder

PGK50 Stainless steel encoder 1024ppr Incremental rotarty encoder protection level IP67 servo motor encoder


Items Basic parameters
Brand HENGXIANG
Encoder type Incremental Type
External diameter 50mm
Thickness 27mm
Hollow shaft type Through shaft
Hollow shaft diameter 10mm;12mm;14mm;15mm(optional)
Resolution 1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
Output phase 1=A+B; 2=A+B; 3=A+B+Z; 4=A+A-+B+B-; 6=A+A-+B+B-+Z+Z-; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage DC5V; DC8-30V
Outlet type Radial cable
Output mode F=Push-pull; C=TTL(DC5V)
E=HTL(DC8-30V)
Consumption current 100mA Max; 120mA Max
Top response frenquency 100kHZ; 500kHZ; 600kHZ
GND not connected to the encoder
Starting torque Less than 9.8×10-3 N.m
Inertia moment Less than 6.5×10-6 kg.m2
Environmental temperature Operating: -40~+90℃(repeatable winding cable: -10℃); Storage: -45~+95℃
Enviromental humidity Operating and storage: 50~85%RH(noncondensing)
Protection IP67
Shell Stainless steel
Certification CE
package Carton box
Net weight About 150g



PGK50  hollow shaft Stainless Steel Ip67 Through Hole Encoder 0

PGK50  hollow shaft Stainless Steel Ip67 Through Hole Encoder 1

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
