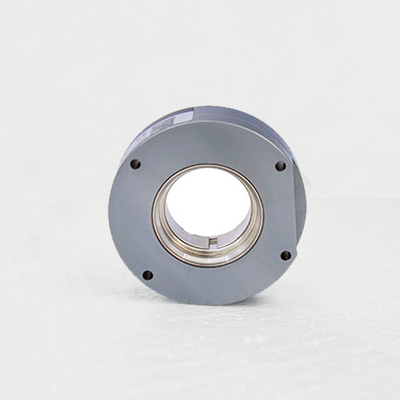

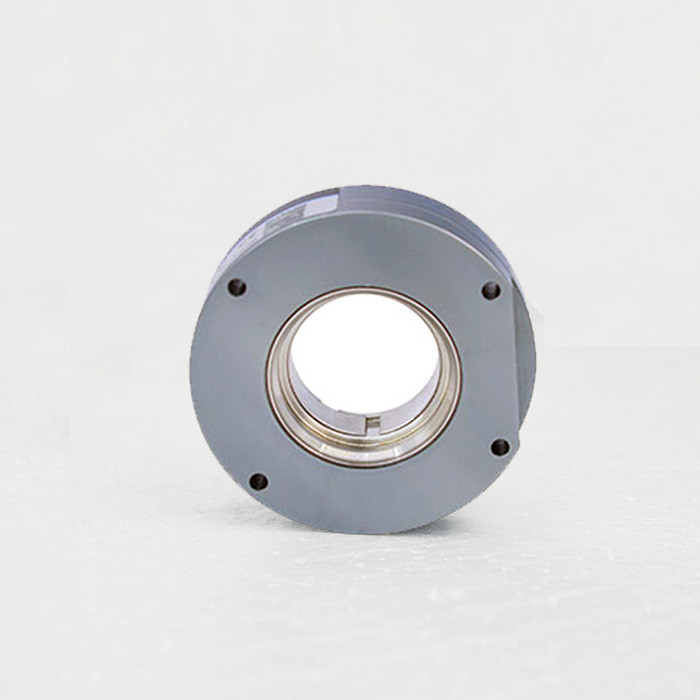

MPN55 Multi Turn Absolute Optical Encoder Delta Inner Bike Helmet Modulator CNC Omron

MPN55 Multi Turn Absolute Optical Encoder Delta Inner Bike Helmet Modulator CNC Omron

Products - Optical Rotary Encoders
  • High Light

    Multi Turn Absolute Optical Encoder

    ,

    Optical Tamagawa Absolute Encoder

    ,

    CNC Absolute Optical Encoder

  • Brand
    HENGXIANG
  • Encoder Type
    Absolute Encoder
  • External diameter
    55mm
  • Thickness
    15mm
  • Hollow Shaft Type
    Through Hole
  • Hollow Shaft Diameter
    14,15,19,20,24mm
  • Resolution
    17Bit, 19Bit,20Bit, 22Bit, 24Bit;1716-2416Bits
  • Protection
    IP50
  • Net weight
    About 200g (with Package)
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    MPN55
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

MPN55 Multi Turn Absolute Optical Encoder Delta Inner Bike Helmet Modulator CNC Omron

  • MPN55 Multi Turn Absolute Optical Encoder Delta Inner Bike Helmet Modulator CNC Omron
  • MPN55 Multi Turn Absolute Optical Encoder Delta Inner Bike Helmet Modulator CNC Omron
  • MPN55 Multi Turn Absolute Optical Encoder Delta Inner Bike Helmet Modulator CNC Omron
Get Price Contact Now

MPN55 absolute multi turn tamagawa encoder delta inner bike helmet modulator CNC omron



1. Our Advantage

1 ,Over 18 years encoder production experience

2, More than 20 years experienced engineers

3,Professional working team

4.   High quality standard



2. Quick instructions

Hollow shaft length 14-24mm

Radial Cable outlet or Radial Socket outlet

Sensing basic : photoelectric

Single turn: 17bits to 24bits

Multi turn : 17+16bits to 24+16bits

Protection level grade IP50



3. Specifications

Items Basic parameters
Brand Hengxiang
Encoder type Absolute encoder
External diameter 55mm
Thickness 15mm
Installation dimension 65mm
Hollow shaft type Through hole
Hollow shaft diameter 14mm; 15mm; 19mm; 20mm; 24mm
Resolution single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface E=SM08B-GHS-TB
Communication B=BISS-C; S=SSI;J=radial cable
Electrical connection Radial socket/cable
Output mode M=multi-turn
S=single-turn
Scanning principle Reflective grating code
Accuracy ±80"
Response speed Normal action: 6000min
RMS position signal noise ±2@18 bits/r
Communication clock frequency ≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time typical value: 13ms
Absolute position sampling period ≤75 ns
Allowable speed ≤32200 r/min (restricted by mechanical speed limit)
Cable Differential twisted-paired cable
Cable length 200mm-10000mm
Mechanical Connection With bearing& encircled locking shaft
Starting Torque less than 9.8×10-3 N.m
Inertial moment less than 6.5×10-6 kg.m2
Shaft load Radial 20N; Axial 10N
Slew speed ≤6000rpm
Shell Material Aluminum
Weight about 150g
Environmental temperature Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity Operating and storage: 35~85%RH(Noncondensing)
Vibration Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock 980m/s2 11ms, three times for X,Y,Z direction individually
Protection IP50
Net weight About 150g

4. Applications

MPN55 series encoder can be used on all kinds of applications, when you need a controller to measure speed or length, then a encoder could be worked on your device, no matter what size you need, and what precision it requested, the encoder could always be a proper tool for you.



5. Dimension

MPN55 Multi Turn Absolute Optical Encoder Delta Inner Bike Helmet Modulator CNC Omron 0



6. FAQ

Q1: What are our strengths?

A1: ※Quality Assurance -- The products have passed the authoritative certifications of CE-ATC, ISO, QMS, etc. by the third-party testing 　　 institutions.

※Leading technology -- with new high precision sensor R&D technology and professional design team, constantly improving performance, 21 years focus on quality, 3 invention patents 17 application patents.

※Tailor-made - With mature technical capability and rich development experience, we can tailor encoders for different precision needs in various mechanical equipment.

※Efficient service - make full use of the existing environmental information resources unified planning, unified specifications, unified construction, time-saving and efficient.

Q2:What can we do for you?

A2:We can provide you with services in the field of elevator, motor, CNC, textile, robot, wind, medical, assembly line equipment and other automation technology industries.

Q3: How to select a right encoder model?

A3: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q4: Do you offer technical support?

A4: Yes, we have professional technician who can solve all your doubts.

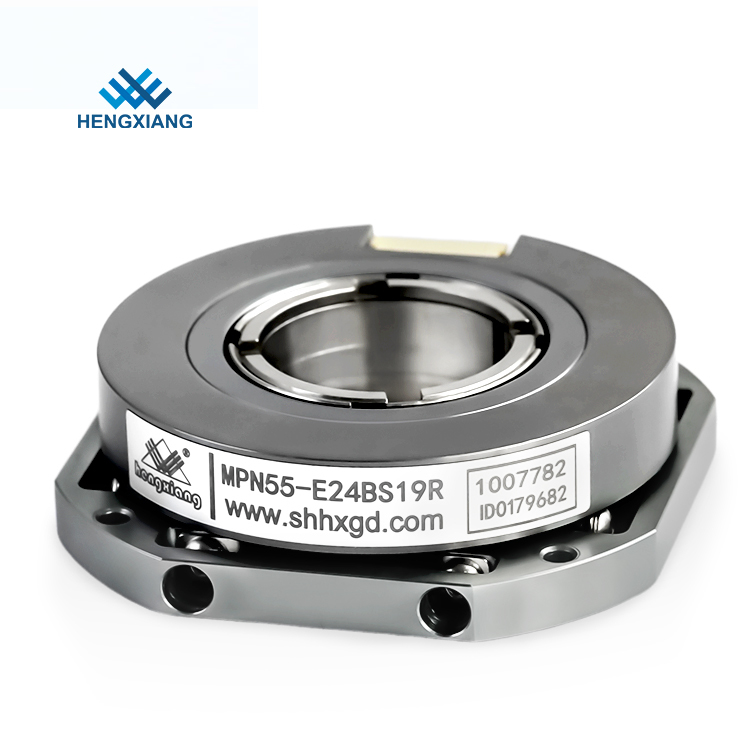

7. Some Related MP55 encoder model number

MPN55-E24BS24R

MPN55-J14BS17R

…



8. Shipment

There are two method of shipment right now,

One is our factory check freight cost from FedEx, UPS, DHL,TNT, etc, for you to get the cheapest quotation and shipping date.

The other is you offer your own courier account when ordering, so we can use your express account to arrange the shipment.



9.Company Team

1. Over 19 years experienced engineers

2. Skilled & Carefully workers

3.HENGXIANG'S OWN design & development team

4. Profesional technician

5. Sales department has lots of experience in exporting goods to overseas market

6. Familar with CUSTOM policy
