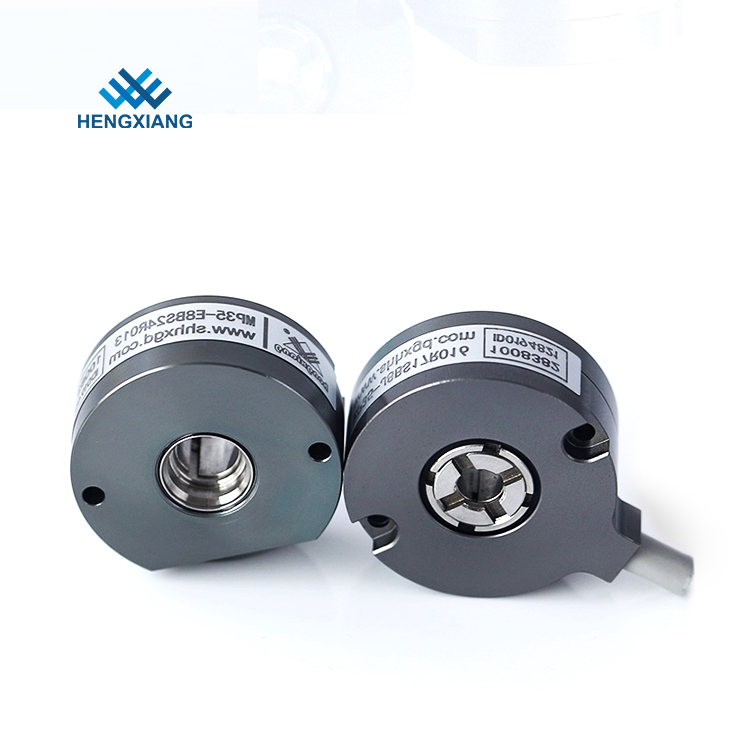

Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics

Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics

Products - Hollow Shaft Absolute Encoder
  • High Light

    Single Turn Optical Rotary Encoder

    ,

    Robotics Single Turn Absolute Encoder

    ,

    Rotary Hollow Shaft Absolute Encoder

  • Brand
    Hengxiang
  • Encoder Type
    Absolute Encoder
  • External Diameter
    35mm
  • Hollow Shaft Type
    Through Hole
  • Hollow Shaft Diameter
    14mm; 15mm; 19mm; 20mm; 24mm
  • Resolution
    Single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit;2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
  • Interface
    E=SM08B-GHS-TB ；J=radial Cable
  • Communication
    B=BISS-C; S=SSI
  • Electrical Connection
    R=RS-485
  • Protection
    IP50
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    MP35
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    MP35
  • Supply Ability
    100K pieces per year

Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics

  • Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics
  • Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics
  • Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics
  • Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics
Get Price Contact Now

Rs485 rotery encoder Application robotics optical single turn 17bit 19bit 20bit 22bit 24bit MP35 absolute encoder



MP35 Product Description
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 0

  •

  • Why choose us?

--HENGXIANG brand--The trustworthy partner
--CE approved--advantaged product quality;
--Fast delivery--strong stock product ability;
--Factory directly provide a competitive price;
--One-stop service--for your efficient purchasing experience;
--OEM design accepted--customized design, your own brand accepted
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 1
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 2
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 3



MP35 Series Rotary encoder Parameters
Items
Basic parameters
Brand
Hengxiang
Encoder type
Absolute encoder
External diameter
35mm
Thickness
15mm
Hollow shaft type
Through hole
Hollow shaft diameter
14mm; 15mm; 19mm; 20mm; 24mm
Resolution
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit

2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface
E=SM08B-GHS-TB ；J=radial cable
Communication
B=BISS-C; S=SSI
Electrical connection
R=RS-485
Output mode

S=single-turn
Scanning principle
Reflective grating code
Accuracy
±60"
Response speed
Normal action: 6000min-1
RMS position signal noise
±2@18 bits/r
Communication clock frequency
≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time
typical value: 13ms
Absolute position sampling period
≤75 ns
Allowable speed
≤32200 r/min (restricted by mechanical speed limit)
Cable
Differential twisted-paired cable
Cable length
200mm-10000mm
Mechanical Connection
With bearing& encircled locking shaft
Starting Torque
less than 9.8×10-3 N.m
Inertial moment
less than 6.5×10-6 kg.m2
Shaft load
Radial 30N; Axial 20N
Slew speed
≤6000rpm
Shell Material
Aluminum
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity
Operating and storage: 35~85%RH(Noncondensing)
Vibration
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock
980m/s2 11ms, three times for X,Y,Z direction individually
Protection
IP50
Net weight
About 100g
Product Usage
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 4

  •

    • Product usage introduction



-Intelligent Fertilizer
--Lifting and metallurgical --three-phase asynchronous motors
-Solar air -conditioner
-Armature rotor test system
-High-speed cutting machine
Automatic rut -tester
-Intelligent equipment
Petroleum -machinery and equipment
-Electrical Equipment
-Invertery
Hengxiang Company Introduction
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 5
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 6
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 7



"HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own
invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project.
Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome
all customers to visit our company, to review and custom "HengXiang" brand products .
Single Turn Rotary Hollow Shaft Absolute Encoder 20bit MP35 For Robotics 8

Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



Shipment

1. Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

2. You could select the express according to your requirements if freight collector

3. If you do not have any courier account, we will check and find a cheapest and safety express for you.

4. Our factory has 30% discount with most courier company, so price could be as cheap as possible.
