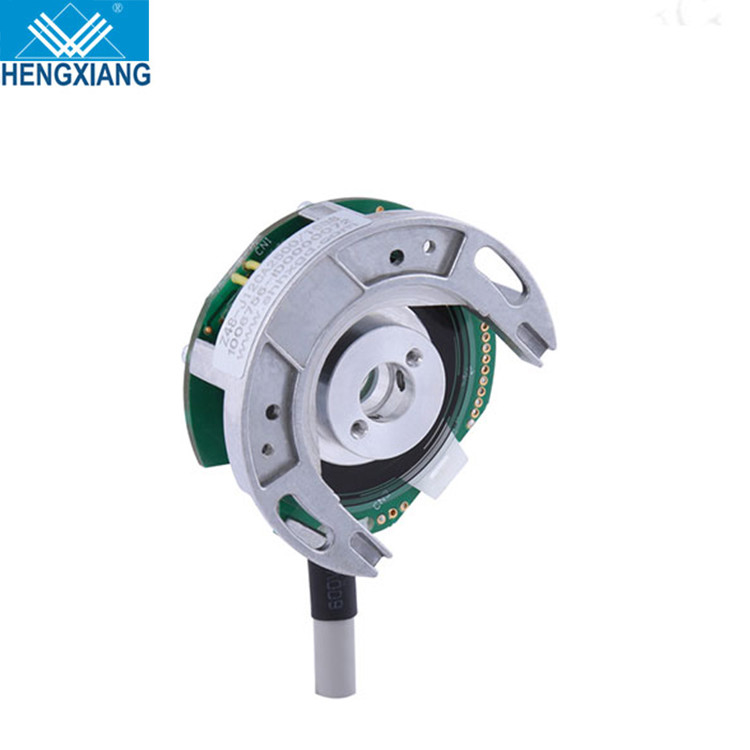

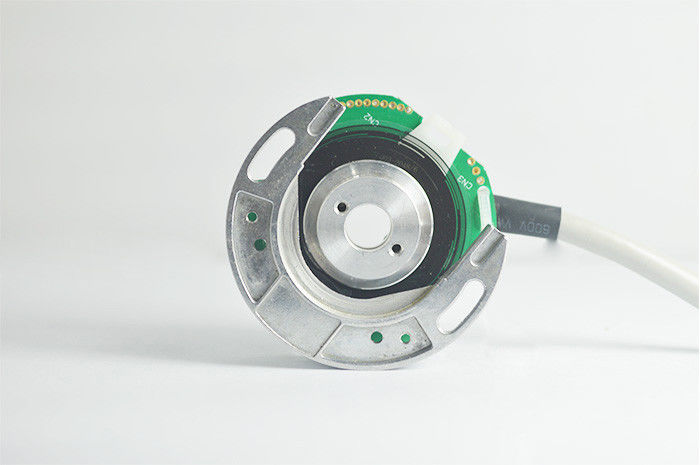

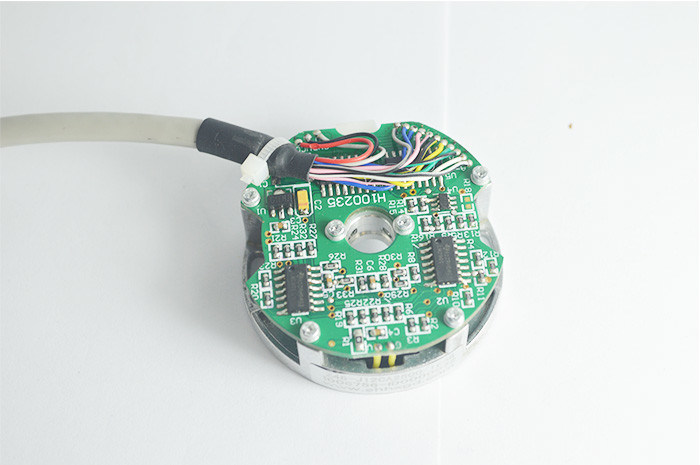

Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output

Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output

  • High Light

    Incremental Angle Shaft Encoder

    ,

    Optical Incremental Shaft Encoder

    ,

    Dc Motor Incremental Rotary Encoder

  • Brand
    HENGXIANG
  • Encoder Type
    Bearingless Encoder
  • External diameter
    48mm
  • Installation Dimension
    R22.35mm
  • Hollow Shaft Diameter
    Through Hole 8mm
  • Resolution
    50-2500ppr;1000-2500/4/6/8
  • Output phase
    Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
  • Outlet Type
    Cable Out From Side
  • Output mode
    NPN/PNP/HTL/TTL
  • Net weight
    About 60g (with Package)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Z48
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output

Optical dc motor encoderincremental angle Rotary encoder Z48-J without integral bearing 1024ppr TTL line driver output
Overview
Quick Details
Model Number:
Z48encoder
Type:
Optical Encoder
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG
Usage:
Opcition sensor
Theory:
Opcition sensor
Output:
square-wave signal
Description:
Z48 series encoder
Brand:
HENGXIANG
Output phase:
A;AB;ABZ;ABZUVW
External diameter:
48mm
Shaft diameter:
10 /12 /8 /6mm (punched hole)
Thickness:
22.5mm
Resolution:
up to 2500 PPR
Supply voltage:
DC5V ;DC8V-30V
Outlet type:
Radial cable
Weight:
about 80g (with package)
Output mode:
NPN;Voltage output ;difference output
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton box.
Port
shanghai/guangdong/any port of china
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 0
  •

  • Why choose us?

--HENGXIANG brand--The trustworthy partner
--CE approved--advantaged product quality;
--Fast delivery--strong stock product ability;
--Factory directly provide a competitive price;
--One-stop service--for your efficient purchasing experience;
--OEM design accepted--customized design, your own brand accepted
Rotary encoders without integral bearing operate without friction. The two components - the scanning head and the scale disk, drum, or tape - are adjusted to each other during assembly. Miniaturized modular rotary encoder for measured shafts up to 8 mm Special built-in mounting aid Without cover In addition to the system accuracy, the mounting and adjustment of the scanning head normally have a significant effect on the accuracy that can be achieved with rotary encoders without integral bearings. Of particular importance are the mounting eccentricity and radial runout of the measured shaft.
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 1
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 2
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 3
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 4
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 5



Z48 Series Rotary encoder Parameters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
bearingless encoder
External diameter
48mm
Thickness
22.5mm
Installation dimension
R22.35mm
Hollow shaft type
through hole
Hollow shaft diameter
8mm
Resolution
50;60;100;200;250;256;300;360;400;450;500;512;600;1000;
1024;1200;2000;2048;2500;
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;
2048/6;2048/8;2500/4;2500/6;2500/8;
Output phase
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage
DC5V ; DC8-30V
Outlettype
Cable out from side
Output mode
NPN/(Open Collector Output)
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length
300mm
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
GND
not connect to encoder
Mark to Space ratio
45% to 55%
Environmental temperature
Operating:-20 ~+80°;storage:-25 ~+90°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Material
aluminium alloy
Certification
CE
package
Carton box
Net weight
About 60g (with package)
Product Usage
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 6
  •

    • Product usage introduction



-Intelligent Fertilizer
--Lifting and metallurgical --three-phase asynchronous motors
-Solar air -conditioner
-Armature rotor test system
-High-speed cutting machine
Automatic rut -tester
-Intelligent equipment
Petroleum -machinery and equipment
-Electrical Equipment
-Invertery
Company Introduction
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 7
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 8
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 9



"HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own
invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project.
Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome
all customers to visit our company, to review and custom "HengXiang" brand products .
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 10
Packing&Shipping
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 11
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 12
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 13
Optical Dc Motor Encoder Incremental Angle Rotary Encoder Z48-J Without Integral Bearing 1024ppr TTL Line Driver Output 14
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
