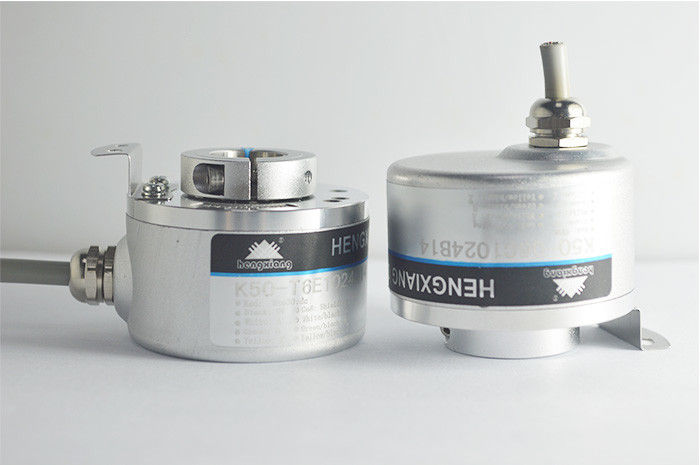

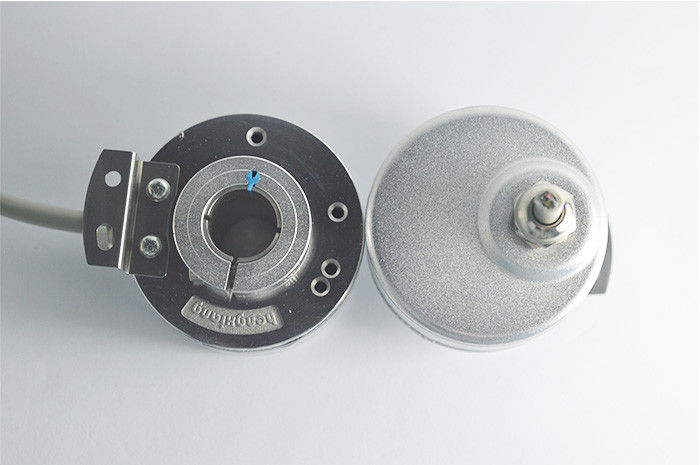

EL50FP1024 Replacement Incremental Optical Rotary Encoder K50 Through Hole Voltage Output

EL50FP1024 Replacement Incremental Optical Rotary Encoder K50 Through Hole Voltage Output

Products - Through Hole Encoder
  • High Light

    through shaft encoder

    ,

    incremental quadrature encoder

  • Keywords
    Through Hole Rotary Encoder
  • Brand
    HENGXIANG
  • Supply voltage
    DC5V ; DC8-30V
  • Top Response Frequency
    300kHz Max
  • Pulse
    50ppr To 23040ppr
  • Mark To Space Ratio
    45% To 55%
  • Shell
    Die Cast Aluminum
  • GND
    Not Connect To Encoder
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K50 rotary encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

EL50FP1024 Replacement Incremental Optical Rotary Encoder K50 Through Hole Voltage Output

  • EL50FP1024 Replacement Incremental Optical Rotary Encoder K50 Through Hole Voltage Output
  • EL50FP1024 Replacement Incremental Optical Rotary Encoder K50 Through Hole Voltage Output
Get Price Contact Now

EL50FP1024 replacement incremental encoder k50 through hole encoder voltage output



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.



Product Basis information of K50 Series rotary encoder



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Installation dimension R27.5mm,R30mm, R34.5mm
Hollow shaft type blind hole ; through hole
Hollow shaft diameter 8mm,10mm,12mm;14mm;15mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000;
8192;10000；11520；16384；20000；23040
Output phase Phase A,B,Z A- B- Z-
Shell Die cast aluminum
Consumption current 100mA Max
Shaft Load Radiel: 40N; Axial:20N
Top REV 5000RPM ;IP65≤3000 RPM
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Mark to Space ratio 45% to 55%
Top response Frequency 300kHz Max
Shell Material die cast aluminum
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
GND not connect to encoder
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually
Shock(endure) 490m/s2,11 ms three times for X,Y,Z direction individually
Protection grade IP50 ; IP65
Cable length 1000mm
starting torque less than 9.8X10-3 N.m
Intertia moment less than 6.5x 10-6kg.m2
package Carton box
Net weight About 140g (with package)
Certification CE



Related model number of K50 series

K50-T4C3600B8

K50-Q6E3000B6

K50-T1V1250Q14

K50-Q2F1440Q12

K50-T3PH2500Q10

K50-Q4C1200Q8

K50-T6E2048Q6

K50-Q1V1024Q6

K50-T2N1000Q8

K50-Q2V23040B14

K50-T3NH16384B12



Process of payment:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Delivery date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time
