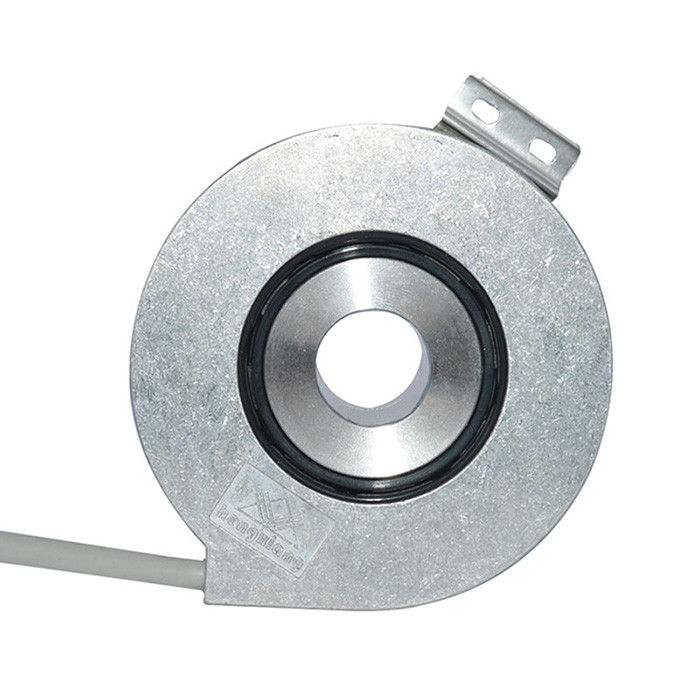

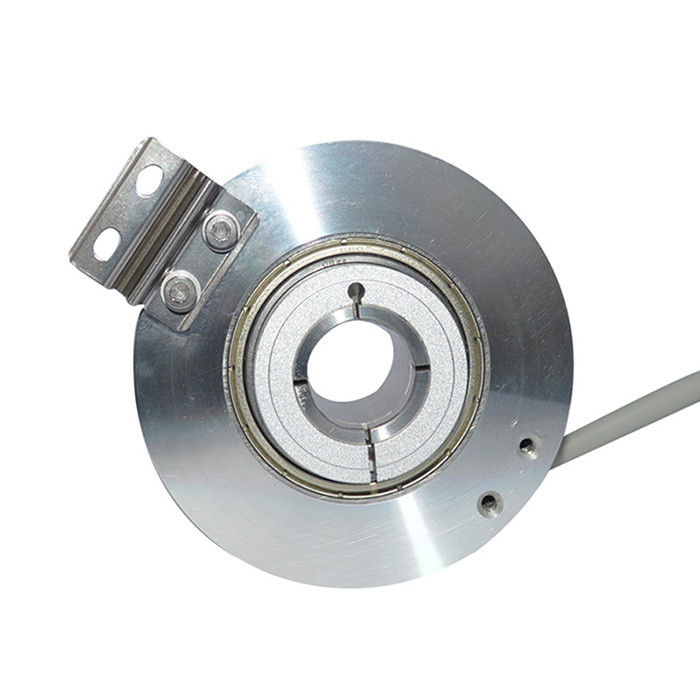

K76 Large Aperture Industrial Rotary Encoder Through Holeexternal Diameter 76mm 5 - 30V DC

K76 Large Aperture Industrial Rotary Encoder Through Holeexternal Diameter 76mm 5 - 30V DC

  • K76 Large Aperture Industrial Rotary Encoder Through Holeexternal Diameter 76mm 5 - 30V DC
  • K76 Large Aperture Industrial Rotary Encoder Through Holeexternal Diameter 76mm 5 - 30V DC
K76 Large Aperture Industrial Rotary Encoder Through Holeexternal Diameter 76mm 5 - 30V DC
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K76 Series encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
External diameter: 76.5mm Hollow Shaft Diameter: 18mm,20mm,22mm;25mm;28mm;30mm;
Shaft Load: Radial 70N; Axial 50N Encoder Type: Rotary Encoder
Top REV: 3000RPM Shaft Material: Stainless Steel
Load Voltage: ≤DC30V Net weight : About 360g (with Package)
High Light:

through shaft encoder

,

incremental quadrature encoder

K76 large aperture through hole encoder hollow shaft 25mm external diameter 76mm 5-30VDC





Part number for K76 series encoder



K76-J1V100B30

K76-J2N512B28

K76-J3PH1000B25

K76-J4C1024B22

K76-J6E1200B20

K76-J1V2048BQ30

K76-J2F2500BQ28

K76-J3N3000BQ25

K76-J4E3600BQ22

K76-J6C32768BQ20



K76 series encoder Specification



Items Basic parameters
Encoder type Incremental encoder
Brand HENGXIANG
External diameter 76.5mm
Thickness 37mm
Installation dimension R34.5mm(spring plate 76T69)
Hollow shaft type through hole (clamping ring at prior and clamping ring at rear)
Hollow shaft diameter 18mm,20mm,22mm;25mm;28mm;30mm;
Resolution 100;200;250;300;360;400;450;500;512;600;720;800;1000; 1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
7200;8192;10000;14400;16384;28800;32768
1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4; 2500/6;2500/8;4096/4;4096/6;4096/16; 5000/6;5000/8;5000/10;5000/12;5000/16;
8192/8;8192/10;/8192/16;10000/8;10000/10;10000/16;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



Process of payment:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready





K76 Large Aperture Industrial Rotary Encoder Through Holeexternal Diameter 76mm 5 - 30V DC 0



Packing Details

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.



Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.
